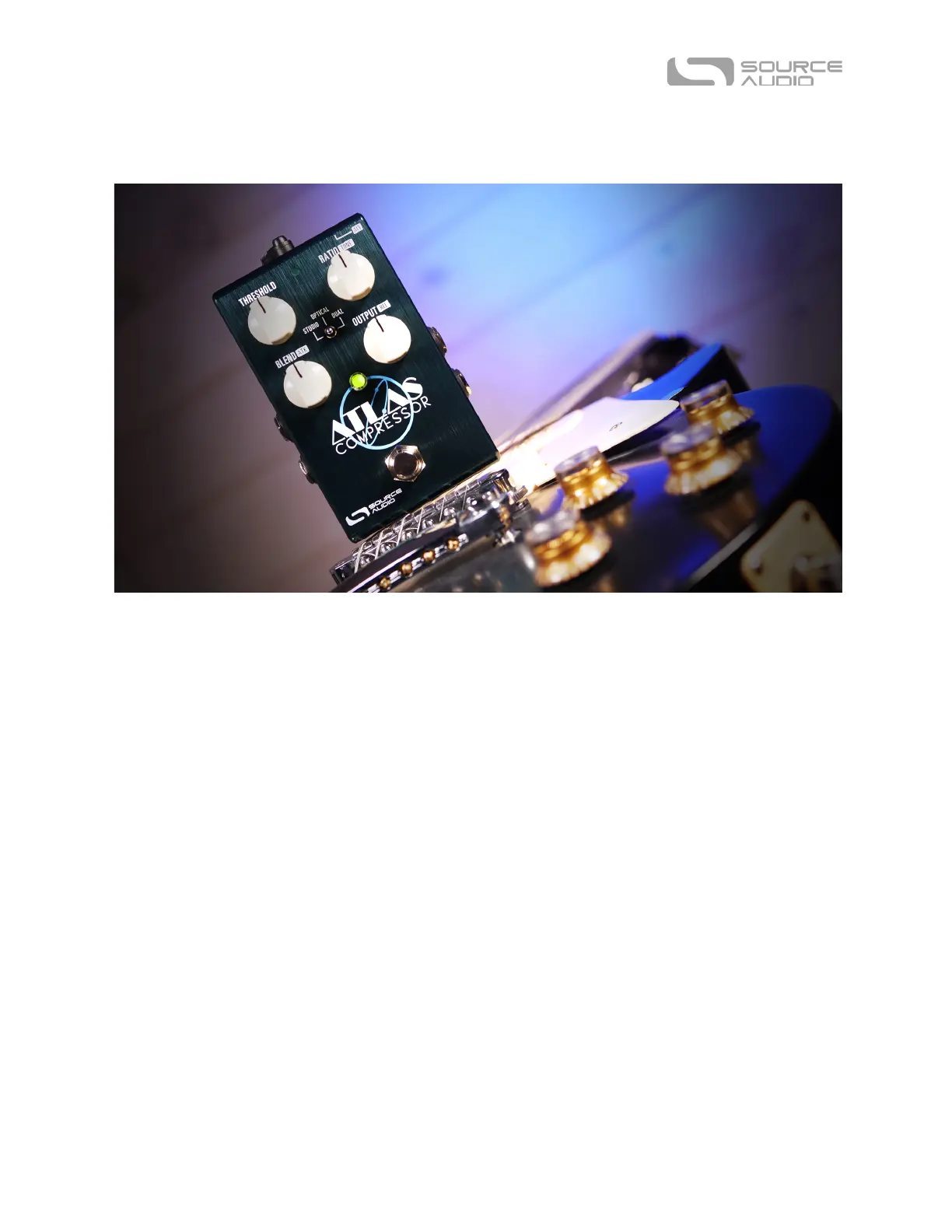

SA252 Atlas Compressor User Guide
1
Atlas Compressor User Guide
Welcome
Thank you for purchasing the Source Audio Atlas! The Atlas is an all- -in one compressor pedal that
aims to be the ultimate destination for guitar or bass compression and a dive into the deep history of
compressor units. On the surface, the Atlas serves up six unique compressor circuits spanning from
classic stompbox compressors to expensive studio rack gear to ultra- -modern and flexible dual band
compressors.
Connect via USB to the Neuro Mobile App and Neuro Desktop Editors to transform the Atlas into a
DAW compression module with real time gain reduction readout displays and enough controls—such
as Threshold, Attack, Release, Makeup Gain, Ratio, Soft Knee Width, Clean Blend, and a Side Chain
Low- - -Pass and High Pass Filters to fine tune the Atlas Compressor to your exact specifications.
Parameter range controls allow you to set a custom range for each control knob so your tones will
always be in the useable range.
The Atlas Compressor is our love letter to compression and was a collaborative effort between our
trusted engineering duo of Jesse Remignanti (hardware) & Bob Chidlaw (DSP) and Christopher Venter
of SHOE Pedals, who has previously contributed on the ZIO and True Spring pedals. Plug in an Atlas
and experience the final word in audio compression.
— The Source Audio Team
SA252 Atlas Compressor User Guide
2
Contents
Welcome ................................................................................................................................................. 1
Contents .................................................................................................................................................. 2
Feature Overview .................................................................................................................................... 3
Connecting the Pedal .............................................................................................................................. 4
Controls ................................................................................................................................................... 8
ALT Controls .......................................................................................................................................... 10
Atlas Factory Presets ............................................................................................................................. 11
Stereo Operation & Signal Routing ....................................................................................................... 12
Preset Storage and Recall ..................................................................................................................... 13
External Control Options ....................................................................................................................... 15
Expression Control ................................................................................................................................ 15
Neuro Desktop and Mobile Editors ....................................................................................................... 16
The Neuro Desktop Editor ..................................................................................................................... 16
Graphic Equalizer Module ..................................................................................................................... 21
Parametric Equalizer Module................................................................................................................ 22
Knob Assignment Module..................................................................................................................... 22
The Neuro Mobile App — - with New Direct MIDI USB Support ............................................................ 24
Neuro Hub ............................................................................................................................................. 26
MIDI ...................................................................................................................................................... 26
USB ........................................................................................................................................................ 27
Specifications ........................................................................................................................................ 28
Troubleshooting .................................................................................................................................... 28
Frequently Asked Questions ................................................................................................................. 29
Rubber Feet ........................................................................................................................................... 30
Waste Disposal Notes ...........................................................................................................................30
Warranty ............................................................................................................................................... 31
Version History ...................................................................................................................................... 32
SA252 Atlas Compressor User Guide
3
Feature Overview
Look Ahead Compression: When engaged, Look Ahead creates an imperceptible latency in
the signal that “looks into the future” and allows for an extra quick and smooth attack that
without any additional distortion or artifacts.
Side Chain Compression: Use the signal going to Input 2 to trigger the compression applied
to the signal going into Input 1.
Six Preset Positions: Use the Atlas’s three-position toggle switch and two preset banks to
save six easily accessible presets.
Stereo Ins and Outs: Create two entirely different presets and run them in compression
series, parallel or run each to a separate output.
Bass Optimized Mode: Each of the six onboard compression circuits can be reloaded and
optimized for bass guitar with a simple button press.
Growing Library of Published Presets: For quick and easy access to a world of great tones,
try sampling sounds from a vast collection of published presets created by the Source Audio
team and the ever-growing Neuro Community.
Unprecedented Sound Sculpting Options: The powerful Neuro Desktop Editor (free
download for Mac and Windows) and Neuro Mobile App (iOS and Android) offer maximum
sound exploration possibilities. Use Neuro’s inspired editor to create custom Atlas DAW
presets that can be burned directly to the pedal, saved to a private cloud-based library, or
shared publicly with other members of the Neuro Community.
128 MIDI Accessible Factory Presets: The addition of a third-party MIDI controller with USB
host provides access to any of the pedal’s 128 Factory presets.
Compact Design: The extruded anodized aluminum housing, with its slim profile and small
footprint, is built for the rigors of the road.
MIDI Capable: Connect the Atlas to the Source Audio Neuro Hub or a USB-MIDI Host and
access up to 128 presets with MIDI Program Change (PC) messages. Control many of the
pedal’s parameters with MIDI Continuous Controller (CC) messages.
USB Port: Class compliant USB-MIDI allows the Atlas to work as a plug-and-play device with
recording software running on Mac and Windows. The USB port offers connectivity to the
Neuro Desktop Editor as well as the Neuro Mobile App, providing access to deep editing
possibilities and pedal firmware updates.
Universal Bypass™: Select between analog buffered and relay-based True Bypass.
