Reference Guide
ĺčćĺ
Guide de rĂŠfĂŠrence
EN
CT
FR
LCD Monitor/
LCD 饯示ĺ¨
FW-98BZ50L / 85BZ40L / 85BZ30L / 75BZ40L / 75BZ35L / 75BZ30L / 65BZ40L
FW-65BZ35L / 65BZ30L / 55BZ40L / 55BZ35L / 55BZ30L / 50BZ30L / 43BZ30L
2EN
Table of Contents
Safety Information . . . . . . . . . . . . . . . . . 2
Connection Diagram . . . . . . . . . . . . . .4
Using LCD Monitor as Part of
Audio System . . . . . . . . . . . . . . . . . . . .7
Remote Control and LCD Monitor. . . .7
Settings . . . . . . . . . . . . . . . . . . . . . . . . .9
Pro mode. . . . . . . . . . . . . . . . . . . . . . . . . 9
Control functions . . . . . . . . . . . . . . . . 11
RS-232C . . . . . . . . . . . . . . . . . . . . . . . . . 11
IP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Installing the LCD Monitor to
the Wall . . . . . . . . . . . . . . . . . . . . . . . . 14
Troubleshooting. . . . . . . . . . . . . . . . . 15
Specifications . . . . . . . . . . . . . . . . . . . 15
Setting menus are subject to change without notice.
Note
⢠Before operating the LCD Monitor, please read the âSafety
Informationâ.
⢠Read the supplied safety documentation for additional safety
information.
⢠Instructions about âInstalling the LCD Monitor to the Wallâ are
included within this LCD Monitorâs instruction manual.
⢠Images and illustrations used in the Setup Guide and this
manual are for reference only and may differ from the actual
product.
Location of the identification label
Labels for the LCD Monitor Model No. and Power Supply rating are
located on the rear of the LCD Monitor.
Installation/Set-up
Install and use the LCD Monitor in accordance with the
instructions below in order to avoid any risk of fire, electric shock
or damage and/or injuries.
Installation
⢠The LCD Monitor should be installed near an easily accessible AC
power outlet (mains socket).
⢠Place the LCD Monitor on a stable, level surface to prevent it
from falling over and causing personal injury or property
damage.
⢠Install the LCD Monitor where it cannot be pulled, pushed, or
knocked over.
⢠Install the LCD Monitor so that the LCD Monitorâs Table-Top
Stand does not protrude out from the LCD Monitor stand (not
supplied). If the Table-Top Stand protrudes out from the LCD
Monitor stand, it may cause LCD Monitor set to topple over, fall
down, and cause personal injury or damage to the LCD Monitor.
About Manuals
This LCD Monitor comes with the following
manuals. Please retain the manuals for future
reference.

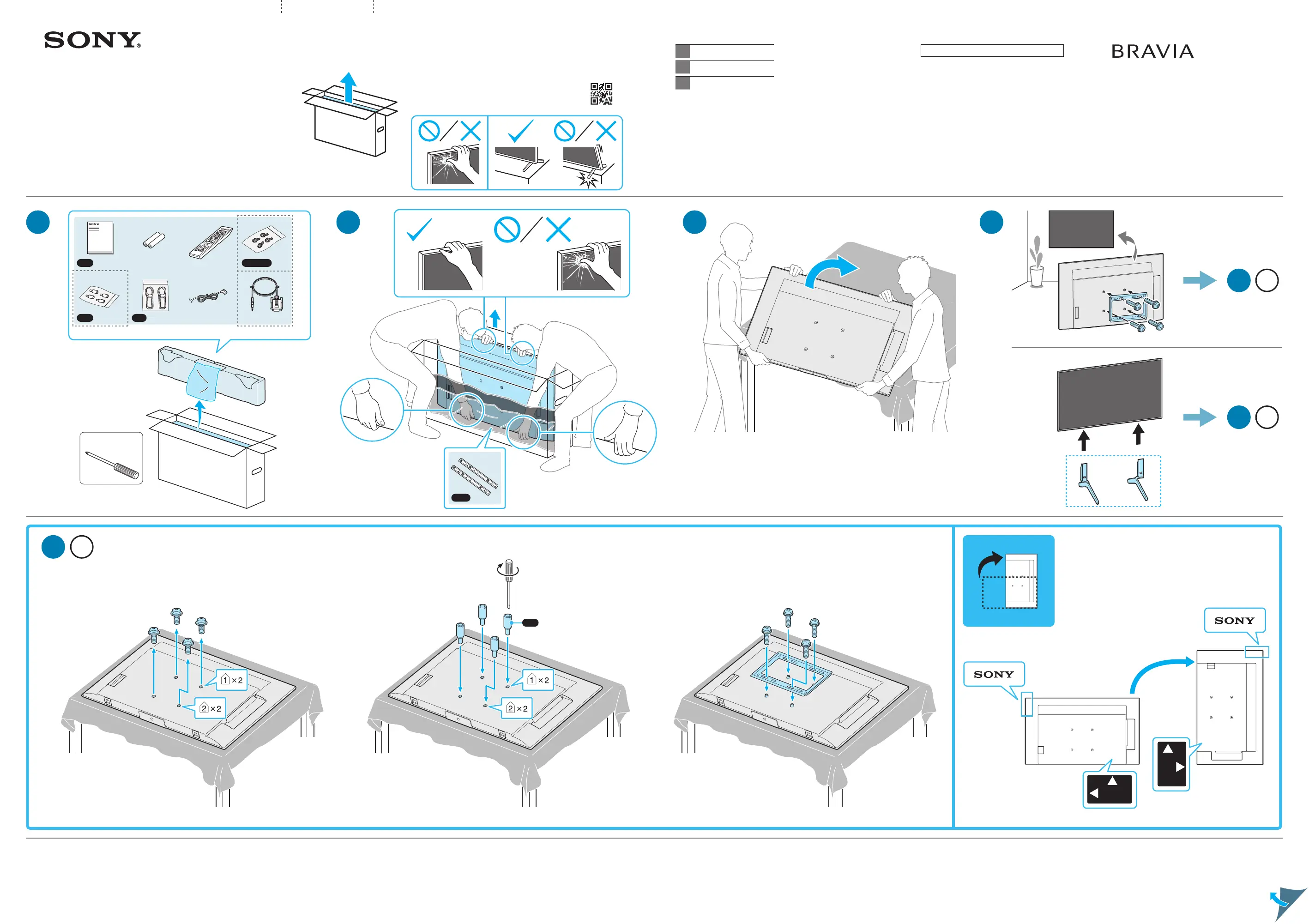

Setup Guide
⢠LCD Monitor
installation and setup.
Reference Guide (this
manual) / Safety
Information
⢠Safety information, remote
control, troubleshooting, wall-mount
installation, specification, etc.
Help
Find more troubleshooting and
other useful information directly
from your LCD Monitor. Press HELP
on the remote control to display a
list of topics.
IMPORTANT - Read the End User Software Licence
Agreement before using your Sony product. Using your
product indicates your acceptance of the End User Software
Licence Agreement. The software licence agreement between
you and Sony is available online at Sony website (https://
www.sony.net/tv-software-licenses/) or on your product
screen. Go to [Settings] t [System] t [About] t [Legal
information] t [Notices and licences].
Safety Information
EN
3EN
Transporting
⢠Before transporting the LCD Monitor, disconnect all cables.
⢠Two or more persons (three or more persons for 214.8 cm
(85 inches), four or more persons for 247.7 cm (98 inches) and
above LCD Monitor) are needed to transport a large LCD
Monitor.
⢠When transporting the LCD Monitor by hand, hold it as shown
below. Do not put stress on the LCD panel and the frame around
the screen.
⢠When lifting or moving the LCD Monitor, hold it firmly from the
bottom.
FW-98BZ50L
FW-85BZ40L / 85BZ30L
FW-75BZ40L / 75BZ35L / 75BZ30L / 65BZ40L / 65BZ35L /
65BZ30L / 55BZ40L / 55BZ35L / 55BZ30L / 50BZ30L /
43BZ30L
⢠When transporting the LCD Monitor, do not subject it to jolts or
excessive vibration.
⢠When transporting the LCD Monitor for repairs or when moving,
pack it using the original carton and packing material.
⢠When handling or mounting the LCD Monitor set, do not lay
down the LCD Monitor (for applicable LCD Monitor model only).
Topple prevention
(Models with supplied support belt kit)
Refer to the Setup Guide on top of the cushion.
The supplied wood screw is only for affixing to a solid object
made of wood.
(Except models with supplied support belt kit)
FW-98BZ50L
FW-85BZ40L / 85BZ30L / 75BZ40L / 75BZ35L / 75BZ30L /
65BZ40L / 65BZ35L / 65BZ30L / 55BZ40L / 55BZ35L /
55BZ30L / 50BZ30L / 43BZ30L
3
2
1
1.5 N¡m
{15 kgf¡cm}
Screw (not supplied)
Screw hole on the LCD
Monitorâs Table-Top Stand
6 - 12 (mm)
M6 screw (not
supplied)
Cord (not
supplied)
M6 screw
(not supplied)
1 2
4
VS
1.5 N¡m
{15 kgf¡cm}
M6 screw
(not supplied)
Cord (not supplied)
Screw (not supplied)
10 - 12 (mm)
(supplied)
