Seite 1/6

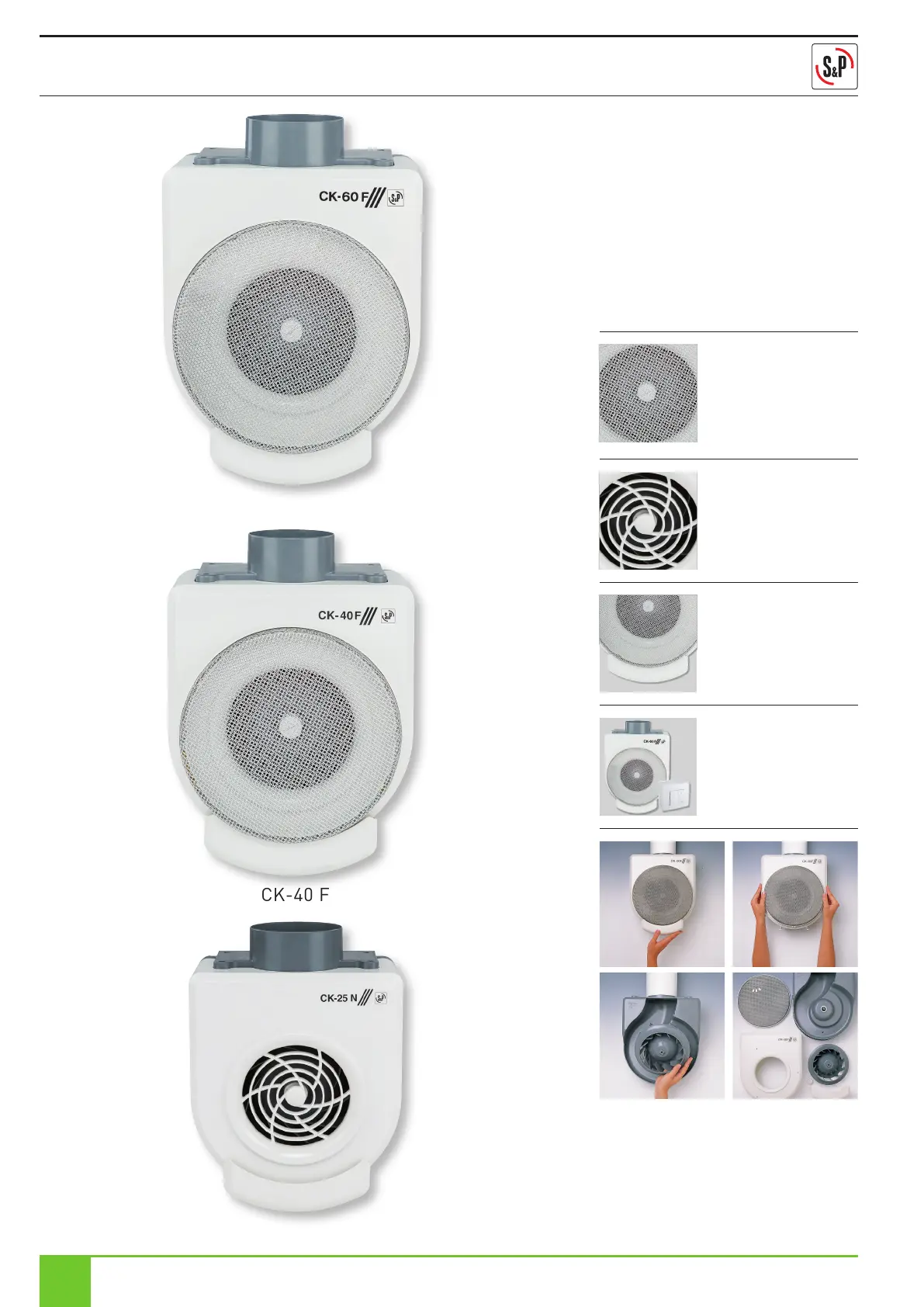

www.solerpalau.comKitchen extract fans CK
KITCHEN EXTRACTORS
CK Series Plastic range
CK-60 F
Centrifugal extractors manufactured
from flame retardant plastic V0. All
extractors are class II insulation fitted
with centrifugal impeller and single phase
230V-50Hz speed controllable motor.
This range consists of three models with
airflow ranging up to 625 m3/h.
CK-25 N
Extractors can be dismantle
Extractor parts easily removable for cleaning
in the dishwasher. (At maximum temperature
60ºC)
Stainless steel filter
Fitted to the inlet to
prevent the build-up of
grease within the fan and
ducting enclosure (CK-40F
and CK-60F).
Protection guard
To avoid any contact with
the impeller (CK-25N).
Removable grease
collection tray
To collect the grease.
Easily removable for
cleaning.
CK-60F: 2-speed motor
REGUL-2 speed selector
I/II switch to adapt the
extract air volume to the
needs.
www.solerpalau.com Kitchen extract fans CK
KITCHEN EXTRACTORS
CK Series Plastic range
TECHNICAL CHARACTERISTICS
MODEL FEATURES
To obtain the maximum efficiency of the polluted air extraction,
the K series fans should be installed within a cooker
canopy. The airflow required depends upon the canopy
width and the distance between the canopy and the cooker.
The K series fans should be installed in vertical position with
the grease collection tray at the bottom.
Model Speed
(rpm)
Abs. power
at free
discharge
(W)
Voltage
(V)
50 Hz
Airflow at
free
discharge
(m3/h)
Sound
pressure
level*
(dB(A))
Weight
(kg)
Wiring
diagram**
(nº)
CK-25 N 2250 40 230 250 50 1,9 11
CK-40 F 2350 70 230 360 55 2,7 11
CK-60 F VR HS 2475 160 230 625 59 4,7 9
LS 1740 96 415 54
* Sound pressure level measured at 1,5 m at free air conditions.
** See section of Wiring Diagrams.
CK-25 N CK-40 F CK-60 F
GREASE COLLECTION TRAY • • •
PROTECTION GUARD •
STAINLESS STEEL FILTER • •
REMOVABLE • • •
ADJUSTABLE • • •
2 SPEED •
600
560
520
480
440
400
360
320
280
240
200
160
120
80
40
0
qv [m3/h]
qv [m3/s]
0 100 200 300 400 500 600
0 0,025 0,050 0,075 0,1 0,125 0,150 0,175
60
56
52
48
44
40
36
32
28
24
20
16
12
8
4
0
CK-40
CK-25N
CK-60 HS
CK-60 LS
p
sf
(mmWG)
p
sf
(Pa)
CK
PERFORMANCE CURVE
ØA
E
D
C
G
F
B
DIMENSIONS (mm)
ORIENTATIVE CHART TO CHOOSE THE MOST SUITABLE EXTRACTOR FOR KITCHENS WITH CANOPIES WITHIN THE WALL
CANOPY SIZE RECOMMENDED AIRFLOW
(m3
/h)
EXTRACTION DUCT LENGTH *
0 to 5 m 5 to 15 m 15 to 30 m
UNTIL 60 cm 200-300 CK-25 N CK-35 N
CK-40 F
CK-40 F
CK-50
ECO-500
UNTIL 90 cm 300-600
CK-35 N
CK-40 F
CK-50
ECO-500
CK-40 F
CK-50
ECO-500
CK-60 F
CK-50
ECO-500
CK-60 F
* Expected with an installation with two 90° elbows.
Model ØA B C D E F G
CK-25 N 98 34 304 149 218 – 127
CK-40 F 98 42 370 179 266 140 162
CK-60 F 116,5 42 410 180 293,5 145 174
www.solerpalau.comKitchen extract fans CK
KITCHEN EXTRACTORS
CK Series Plastic range
ACCESSORIES
Are fitted with all the elements (extractor
and accessories) needed to carry out a
successful installation.
* For more information see Mounting and Electrical Accessories.
CK KITCHEN EXHAUST FAN KITS
CK PLASTIC RANGE
CK-25 N CK-40 F CK-60 F
GRA
Aluminium
guards
GRA-75 GRA-75 GRA-100
CT
Cowl CT-125 CT-125 CT-125
PF-60
Filter panel PF-60 PF-60 PF-60
REB
Single phase
electronic
fan speed
control
regulators
REB-1N
REB-1NE
REB-1N
REB-1NE
REB-1N
REB-1NE
REGUL-2
Two speed
selector
switch
REGUL-2
CK-25 N CK-40 F CK-60 F
GSA
Flexible
aluminium
ducting
GSA-100 GSA-100 GSA-125
CX
Worm drive
clips
CX-80/125 CX-80/125 CX-125/215
PER-W
Backdraft
shutters
PER-100 W PER-100 W PER-125 W
CAR
Backdraft
shutters
CAR-100 CAR-100 CAR-125
CM-130
Backdraft
shutters
CM-130
Kit CK-40 F
Includes:
1 CK-40F fan
3 m of GSA-100 flexible aluminium ducting
2 duct connectors CX-80/125
1 backdraft shutter CM-130
Kit CK-60 F
Includes:
1 CK-60F fan
3 m of GSA-125 flexible duct
2 duct connectors CX-125/215
1 backdraft shutter CM-130
1 two speed switch REGUL-2
