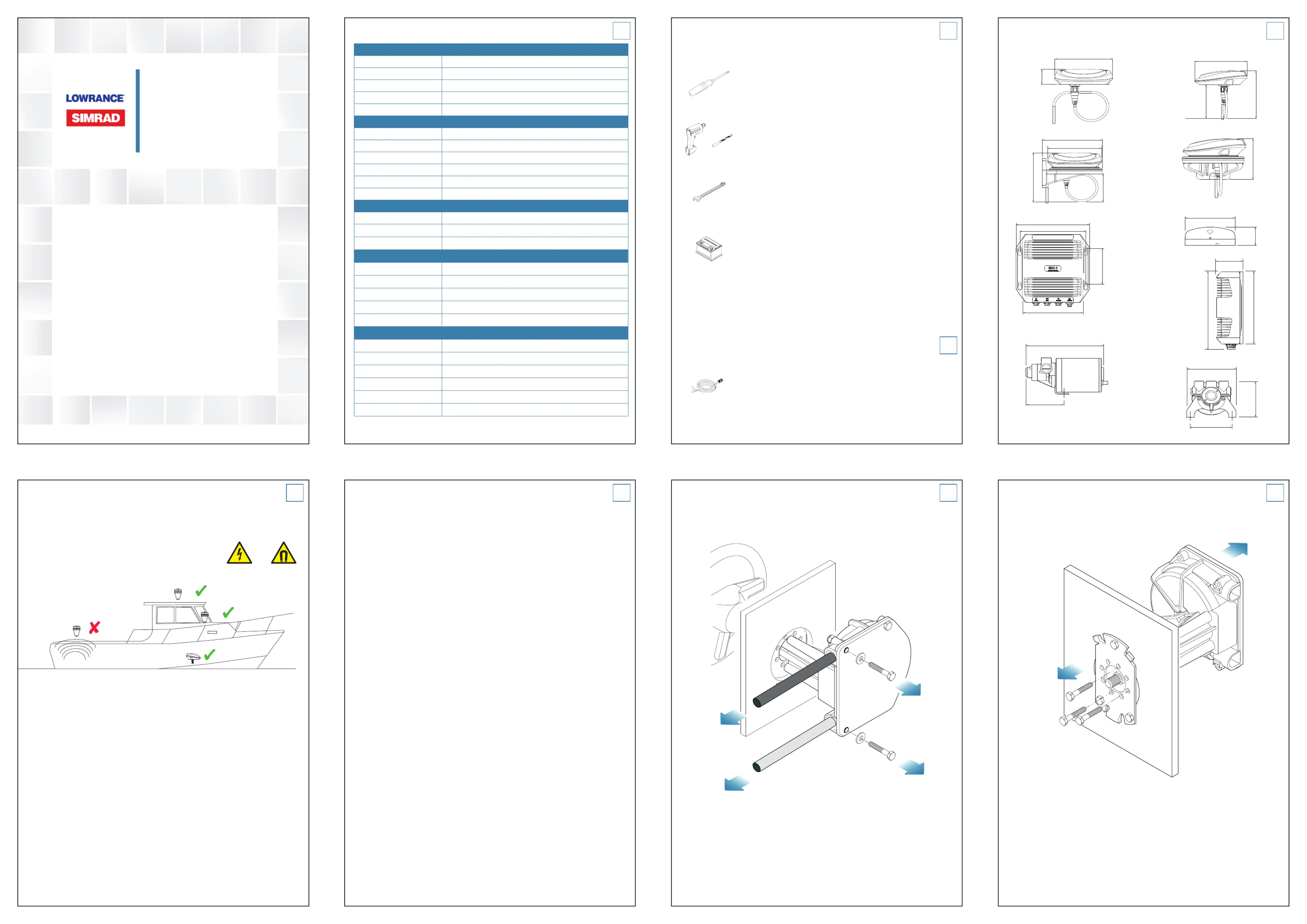

Outboard pilot,
Cable steer pack
Installation Guide
ENGLISH
NAC-1
Operating temperature -25°C to +55°C (13°F to 131°F)
Protection Splashproof, IPx5
Weight 0.6 kg (1.3 lbs)
Power supply/Load 9-16 V DC/140 mA + drive unit load
Performance Drive: 8 A cont., 16 A for 1 s
Point-1AP
Operating temperature -25°C to +60°C (13°F to 140°F)
Protection Watertight, IPx7
Weight 0.14 kg (0.31 lbs)
Power supply/Load 9-16 V DC/<100 mA @ 12 V DC
Performance Heading: +/- 3°, Horiz. accuracy: 3 m (9.8 ft)
Compass safe distance 1 m (3.3 ft)
Auto/Standby button
Operating temperature -25°C to +55°C (13°F to 131°F)
Protection Splashproof, IPx5
Weight 0.04 kg (0.09 lbs) (including cable)
Helm-1
Operating temperature -15°C to +75°C (5°F to 167°F)
Protection Splashproof, IPx5
Weight 4.6 kg (10.14 lbs)
Load Motor: 1.3 A (no load), max 5 A, Clutch: 0.8 A
Performance HO-HO 15 s (no load), Max thrust 1.300 N (290 lbs)
Precision-9
Operating temperature -25 to +65 °C (-13 to +149 °F)
Protection IPx7
Weight 165 g (5.8 oz) + 130 g (4.6 oz) (Bracket)
Power supply/Load 8-16 V/1.4 W
Accuracy ± 2 degrees after calibration
Compass safe distance 0.5 m (1.7 ft)
Technical specications PLANNING: Dimensions
Remove steering cable (1) and cable tube (2) from
existing manual helm
Remove existing manual helm from dashboardCompatibility information
The drive unit either replaces or is used in conjunction with common
brands of mechanical rotary and rack and pinion steering helm units.
The drive is based on the Morse 290 rotary helm unit and accepts
Morse 304411 and Teleex SSC52 rotary cables without modication.
If the boat is tted with any of the following systems:
Teleex Safe T or Teleex Big T Uex T71
Uex T73NR or Uex T81
A cable adapter must be tted to the cable before installing the drive.
If the boat has a rack and pinion type steering system (or other brands
of rotary system), the drive can be used, but the steering cable must
also be replaced with a Morse 304411 or Teleex SSC52.
The drive is designed to produce a maximum cable push/pull of 136 kg,
which makes it suitable for the vast majority of cable steered boats.
However, some boats tted with push-pull cable steering systems have
very sti steering or steering which is heavily loaded in one direction
due to hull design and engine considerations. Generally speaking, the
drive will steer boats that do not require more than a 7 kg force on the
rim of a 35 cm diameter steering wheel to hold a course, this equals
1.2 kgm of torque. If the steering wheel input torque exceeds this
gure it is recommended that a hydraulic linear actuator drive system
is used.
PLANNING: Point-1AP and Precision-9 Compass,
Mounting location
Point-1AP and Precision-9
The compasses contain a magnetic heading sensor and should not
be mounted close to any potential magnetic source, and as close
to the vessel’s centre of roll and pitch as possible. Refer to technical
specications.
Potential sources for magnetic/electromagnetic interference include:
Electrical Motors/Magnets/Moving Metal items
Outboard Engines
High current electrical sources such as main power cables,
batteries, distribution panels etc.
The Point-1AP compass also comes with a GPS antenna and should
be mounted as far as possible away from disturbing magnetic/
electromagnetic interferences.
PLANNING: Cable lengths
Screwdriver
Drill
Wrench
Tools to connect power cables to the battery.
PLANNING: Tools needed
Refer to Wiring diagram (point 15) to nd the
various cable lengths.
1
2
57 mm
(2.2”)
180 mm
(7.1”)
190 mm
(7.5”)
204 mm (8.1”)
183 mm (7.2”)
91 mm
(3.6”)
169 mm (6.63”)
ø 90 mm (3.5”)
38 mm
(1.5”)
155 mm (6.1”)
76 mm (3.0”)
85 mm
(3.4”)
100 mm (4.0”)
85 mm (3.4”)
119 mm (4.69”)
36 mm
(1.42”)
119 mm (4.69”)
90 mm
(3.54”)
126 mm
(4.96”)
133 mm (5.23”)
119 mm (4.69”)
126 mm
(4.96”) 72 mm
(2.83”)
90 mm
(3.54”)
Electromagnetic Interference Precision-9
Point-1AP
WIRING: Wiring diagramMOUNTING: Precision-9
9
13
10
14 15
12
16
Refer to your Autopilot controllers documentation for setup
instructions.
The Outboard pilot, Cable steer pack:
Complies with CE under EMC directive 2004/108/EC
Complies with the requirements of level 2 devices of the
Radiocommunications (Electromagnetic Compatibility) standard
The relevant Declaration of Conformity is available on the following
websites under model documentation section:
www.simrad-yachting.com
www.lowrance.com
Compliance Statements
+
_
12 V DC
MAIN
POWER
SWITCH
0.9 m (3 ft)
FUSE,
20 AMP 2 m (6 ft)
1 m (3 ft)
2 m
(3 ft)
5 m
(15 ft)
0.6 m
(2 ft)
1.8 m (6 ft)
T T
3 AMP
AUTO/STBY
BUTTON
POINT-1AP 1.2 m (4 ft)
4.5 mm (15 ft) Precision-9
POINT-1AP
RED
BLACK
YELLOW
BLUE
Precision-9
ECHO
VIDEO IN
NMEA 2K
POWER
ECHO
VIDEO IN
NMEA 2K
NETW ORK
POWER
Without bracket With bracket
32
For more details about mounting Precision-9, refer to the
Precision-9 Mounting Template and Installation Guide.
available for download on:
www.simrad-yachting.com
www.lowrance.com
www.bandg.com
1
Install Helm-1 to dashboard Install steering cable (1) and cable tube (2) to Helm-1 MOUNTING: NAC-1
Conguration and reference
ENGLISH
Straight Shaft
Helm Drive
Installation manual
simrad-yachting.com
For more details about Helm-1, refer to
the Straight Shaft Helm Drive manual,
available for download on:
www.simrad-yachting.com
MOUNTING: Point-1AP
A
C
1 * Ø 19 mm (0.75”)
2 * Ø 3 mm (0.12”)
Note the mounting
direction!
D
1 2
3 4
1
2
11
1. Remove the rudder feedback sensor from the drive unit
2. Centre the steering
3. Align the 2 red dots
4. Fit the rudder position sensor to the drive unit.
Helm-1, Rudder feedback calibration
3 4
1 2
