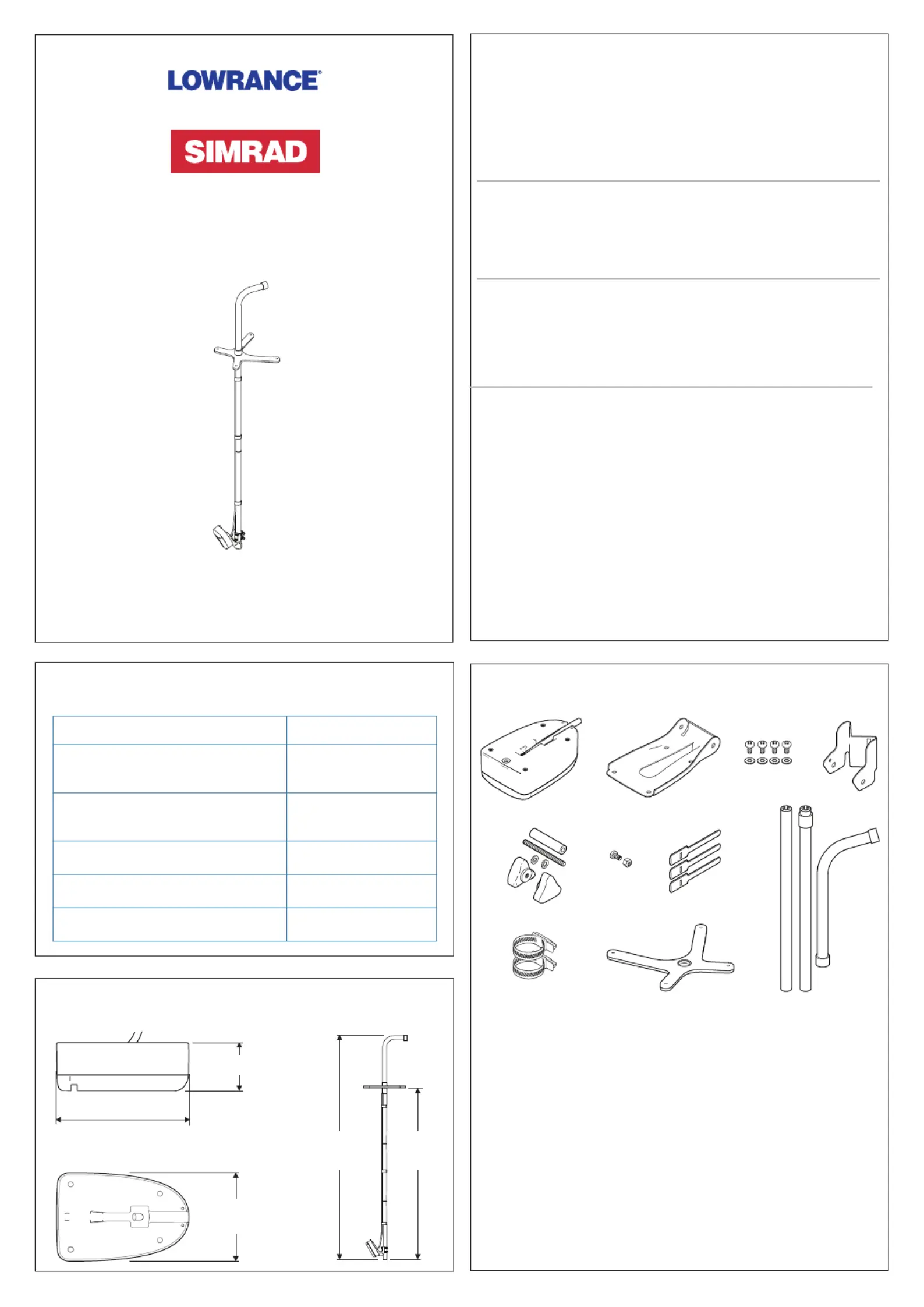

LiveSight Ice transducer
Installation Guide
Parts included
*988-12345-003*
Dimensions
Compliance statements
Technical specications
Environmental
Water temperature 0°C to +35°C
(+32°F to +95°F)
Storage temperature -30°C to +70°C
(-22°F to +158°F)
Physical
Weight (without cable) 0,614 kg (1.354 lbs.)
Cable length 7,6 m (25 ft)
United States of America
¼Note: The user is cautioned that any changes or modications not
expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment
Europe
Navico declares under our sole responsibility that the product conforms
with the requirements of:
• CE under EMC Directive 2014/30/EU
Australia and New Zealand
Navico declares under our sole responsibility that the product conforms
with the requirements of:
• level 2 devices of the Radiocommunications (Electromagnetic
Compatibility) standard 2017
A. LiveSight transducer, incl. 7,6 m (25 ft) cable
B. Transducer bracket
C. Screws M4x8 Ph SS18-8 and washers (x4)
D. Pole adapter
E. Tube, threaded rod, washers (x2) and knobs (x2)
F. Screw M4x8 Ph SS18-8 and M4 316SS nylock nut
G. Cable ties (for transducer cable) (x3)
H. Ice pole (upper, middle and lower)
I. Clamp hose 20 SS (for ice pole adapter) (x2)
J. Base plate, ice pole mount
A B C
EF
D
J
I
H
G
90 mm
(3.5 “)
50 mm (2.0 “)
134 mm
(5.3 “) 1.6 m
(5.22’)
1.2 m
(3.94’)
Declarations
The relevant Declaration of Conformity is available on the following
websites:
– www.lowrance.com
– www.simrad-yachting.com
7
12
10
A
9
3
4 5 6
8
Assemble parts
For Down looking mode:
• until the transducer is paralell
to the waterline
Tilt the transducer
For Forward looking mode:
• Auntil the holes ( ) on the
bracket and on the pole
adapter align
Install the screw and nylock
nut to x the transducer
angle.
Only used for xed
angle assembly in
Forward looking mode.
Loosely x the
knobs to assemble
the transducer
bracket and the
pole adapter.
Hand-tighten the two
knobs to secure the
assembly.
