Seite 1/2

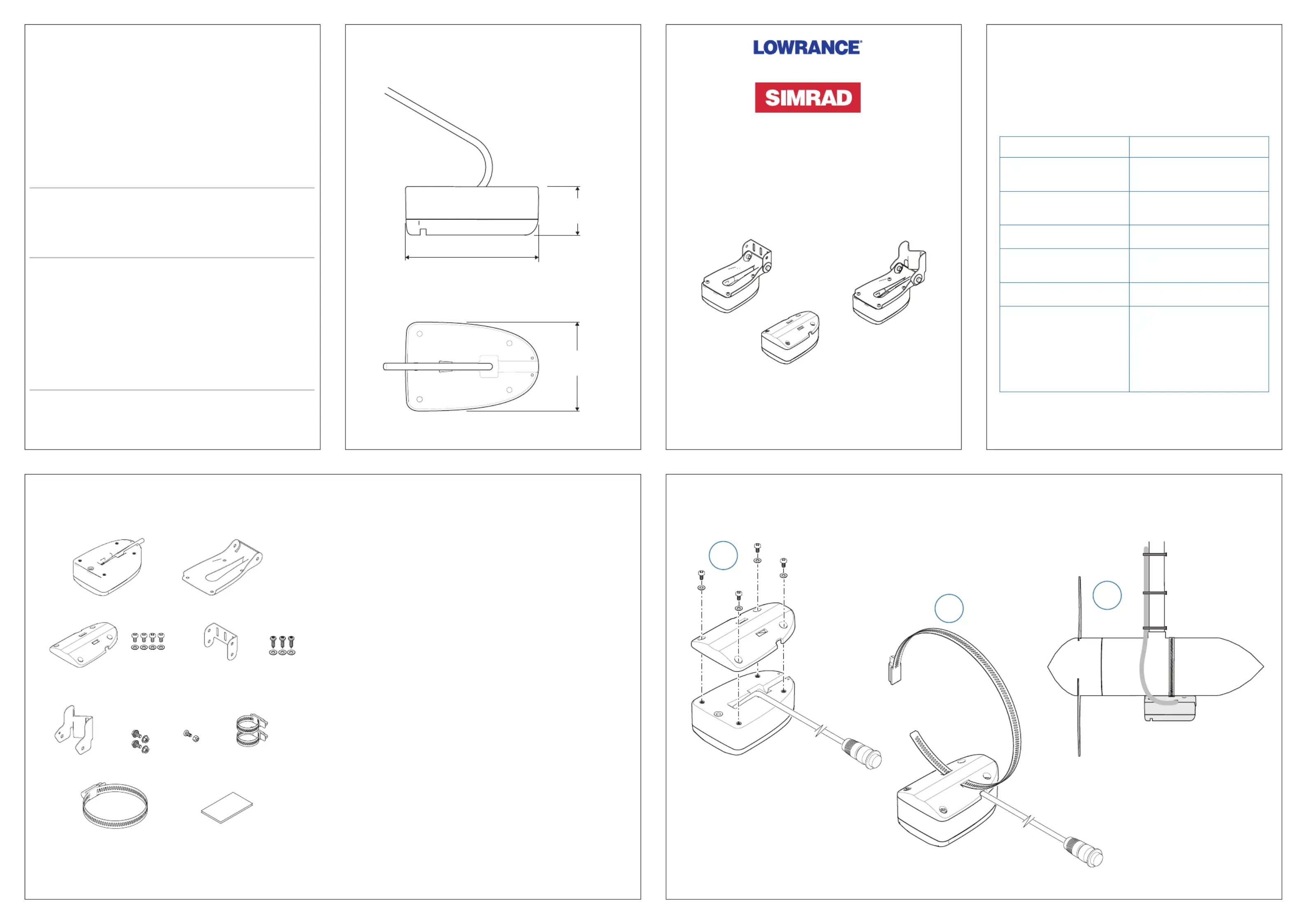

1
23
Dimensions
Parts included
Compliance statements
A. LiveSight transducer, incl. 7,6 m (25 ft) cable
B. Transducer bracket
C. Trolling motor adapter
D. Screws M4x8 Ph SS18-8 and washers (4x)
E. Transom mounting bracket
F. Screws #10x11/4” tap and washers (for transom
bracket) (x3)
G. Pole adapter (for trolling motor shaft)
H. Hex ange bolts M6-1x12, SS18-8, and M6x1
serrated ange nut, 316SS (x2)
I. Screw M4x8 Ph SS18-8 and M4 316SS nylock nut
J. Clamp hose 20 SS (for trolling motor shaft) (x2)
K. Clamp hose 72 SS (for trolling motor adapter)
L. Documentation
LiveSight transducer
Installation Guide
Technical specications
Environmental
Water temperature for
operation
0°C to +35°C
(32°F to +95°F)
Storage temperature -30°C to +70°C
(-22°F to +158°F)
Physical
Weight (without cable) 0,614 kg
(1.354 lbs.)
Cable length 7,6 m (25 ft)
Mounting options Transom
Trolling motor shaft
(forward-looking)
Trolling motor
(down-looking)
¼Note: The most up-to-date specications are
available at the product web site.
*988-12333-002*
90 mm
3.5
50 mm
2.0
134 mm
5.3
AB
CF
HI
G
E
LK
J
D
Trolling motor installation (down-looking)
United States of America
¼Note: The user is cautioned that any changes or modications not
expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment
Europe
Navico declares under our sole responsibility that the product conforms
with the requirements of:
CE under EMC Directive 2014/30/EU
The relevant Declaration of Conformity is available on the following
websites:
www.lowrance.com
www.simrad-yachting.com
Australia and New Zealand
Navico declares under our sole responsibility that the product conforms
with the requirements of:
level 2 devices of the Radiocommunications (Electromagnetic
Compatibility) standard 2017
The relevant Declaration of Conformity is available on the following
websites:
www.lowrance.com
www.simrad-yachting.com
45
9
6
12 3
7
8
A
1
2
4
56
7
3
Mount the transducer parallel
to the water surface.
Apply a marine high-
grade above- or below-
waterline sealant/
adhesive compound to
the pilot holes.
Torque to
7 Nm
(15 lbf in).
Mounting guidelines
Installation
¼Notes:
The transducer could lose bottom signal when the boat
is on plane.
The transducer will not work while it is out of the water.
Mirror the example if your boat has a
counterclockwise propeller rotation.
B EC D A
Best mounting location:
A. undisturbed water ow
Avoid mounting:
B. behind planing strake
C. 1 m (3.3’) to port (left) of propeller
D. within 7.5 cm (3“) to starboard of propeller
E. close to trim tabs
Material #10 screw
Soft materials e.g. plywood Ø 3.7-4.0 mm (5/32”)
Hard materials e.g. berglass, acrylic, hardwoods Ø 4.1-4.7 mm (3/16”)
Aluminum Ø 4.2-4.5 mm (0.173”)
Recommended pilot holes for self-tapping screws:
Torque to 7 Nm
(15 lbf in).
Transom installation (down-looking) Trolling motor shaft installation (forward-looking)
Tilt the transducer until the
holes ( ) on the transducer
A
bracket and on the pole
adapter align.
Install the screw and
nylock nut to x the
transducer angle.
