Instructions
E0102 Alarm Panel
GENERAL
The E0102 Alarm Panel is designed for use with the E5024 ECDIS system, and the MARIS
ECDIS900 MK5 PC and Simrad M5024 monitor. The unit gives an audible and a visual alarm for
any ECDIS system, including power supply failure.
This type of alarm is mandatory on systems requiring Wheelmark certification.
Pushing the button will mute the audible alarm. The visual alarm will remain lit as long as the
alarm situation remains. The indication will cease if the alarm is cancelled on the ECDIS
system.
INSTALLATION
The panelE0102 is mounted and fixed from front by the four enclosed screws.
Select a mounting location where a visual alarm on the panel not will disturb the operator’s
night vision!
Cable(s) should be fixe to spacers for the circuit board.d with the enclosed cable strap

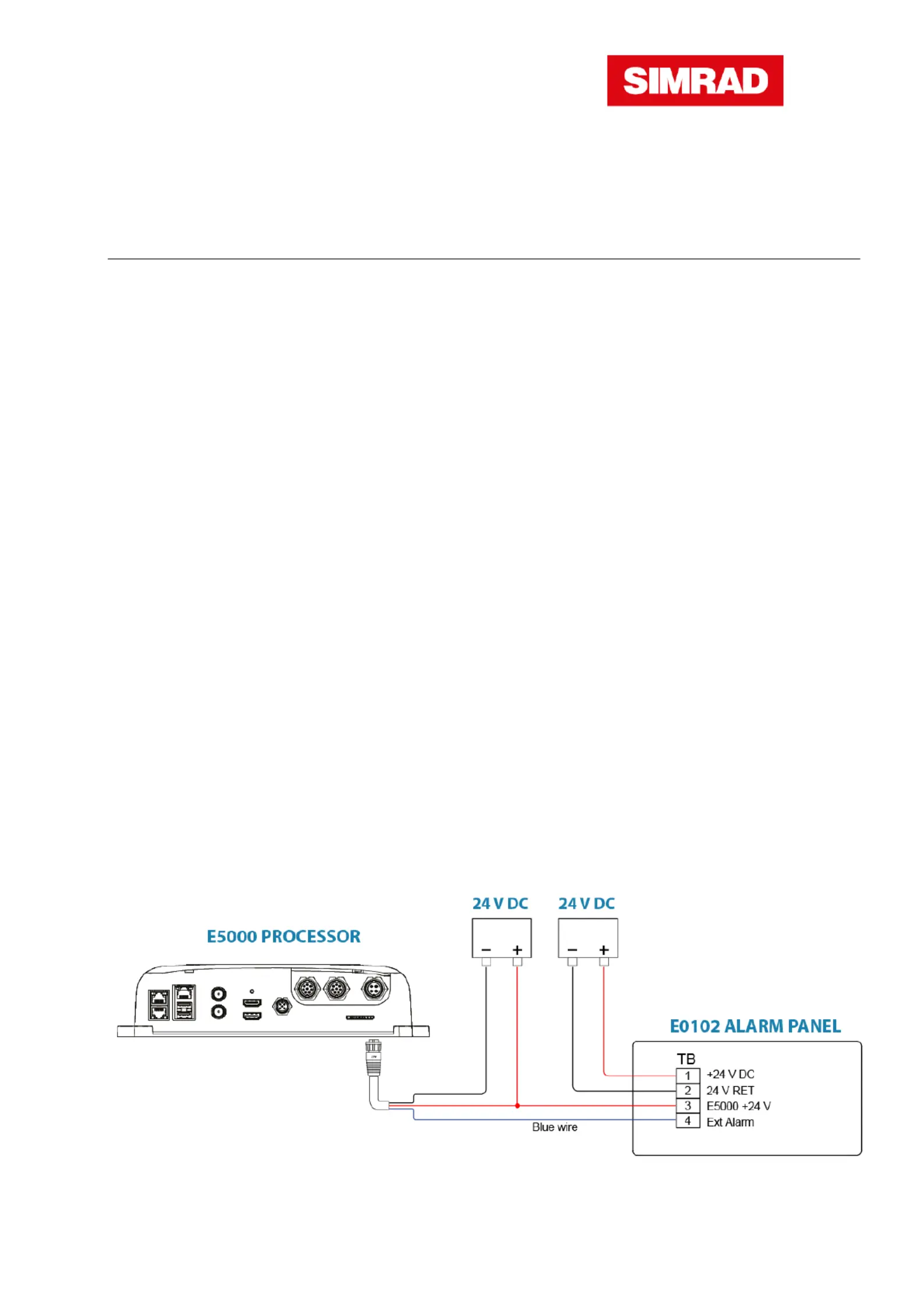

WIRING THE E5000 PROCESSOR
Connect the Alarm Panel according to E0102 the illustration below.
Note that the power supply for E0102 must be independent of the power supply to the E5000
Processor.
*988 10826 002*- -
Page 2 3 of

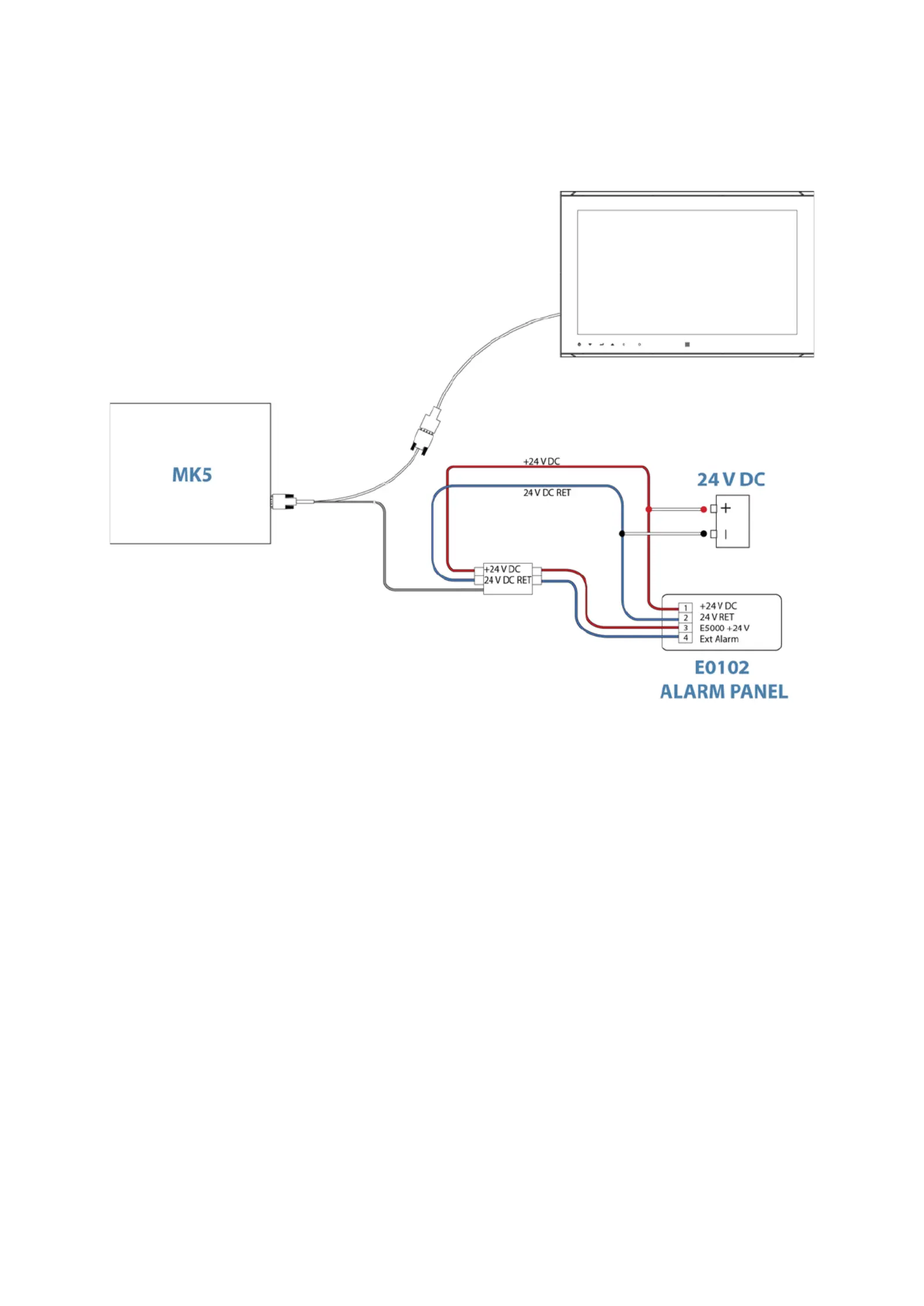

WIRING THE MARIS ECDIS900 MK5 COMPUTER
E0102 ALARM PANEL T ECHNICAL SPECIFICATIONS
Weight: ............................................................................................... 0.25 0. kg ( 55 lbs.)
Material: ....................................................................................... Epoxy coated aluminum
Alarm supply: ..................................................................................... 24VDC 10%/+30%-
Environmental Protection: ............................................. IP44 from front when panel mounted
Color: ..................................................................................................................... B lack
Temperature range:
Operation: ............................................................... –15 to +55°C (+5 to +130°F)
Storage: .................................................................. –30 to +70°C (– 22 to +158°F)
Mounting: ................................................................................................ Panel from front
Alarm sound: ...................................................Continuous between 75 and 85 dB(A) at 1 m
Interface connection: ...................................................................... Screw plug terminal list
Page 3 3 of
DIMENSIONS
CT&A CABLE TECHNICAL SPECIFICATIONS
Power supply ............................................................................................................. 24 V DC
C ompass safe distance .......................................................................................... 0.4m (1.2 ft)
