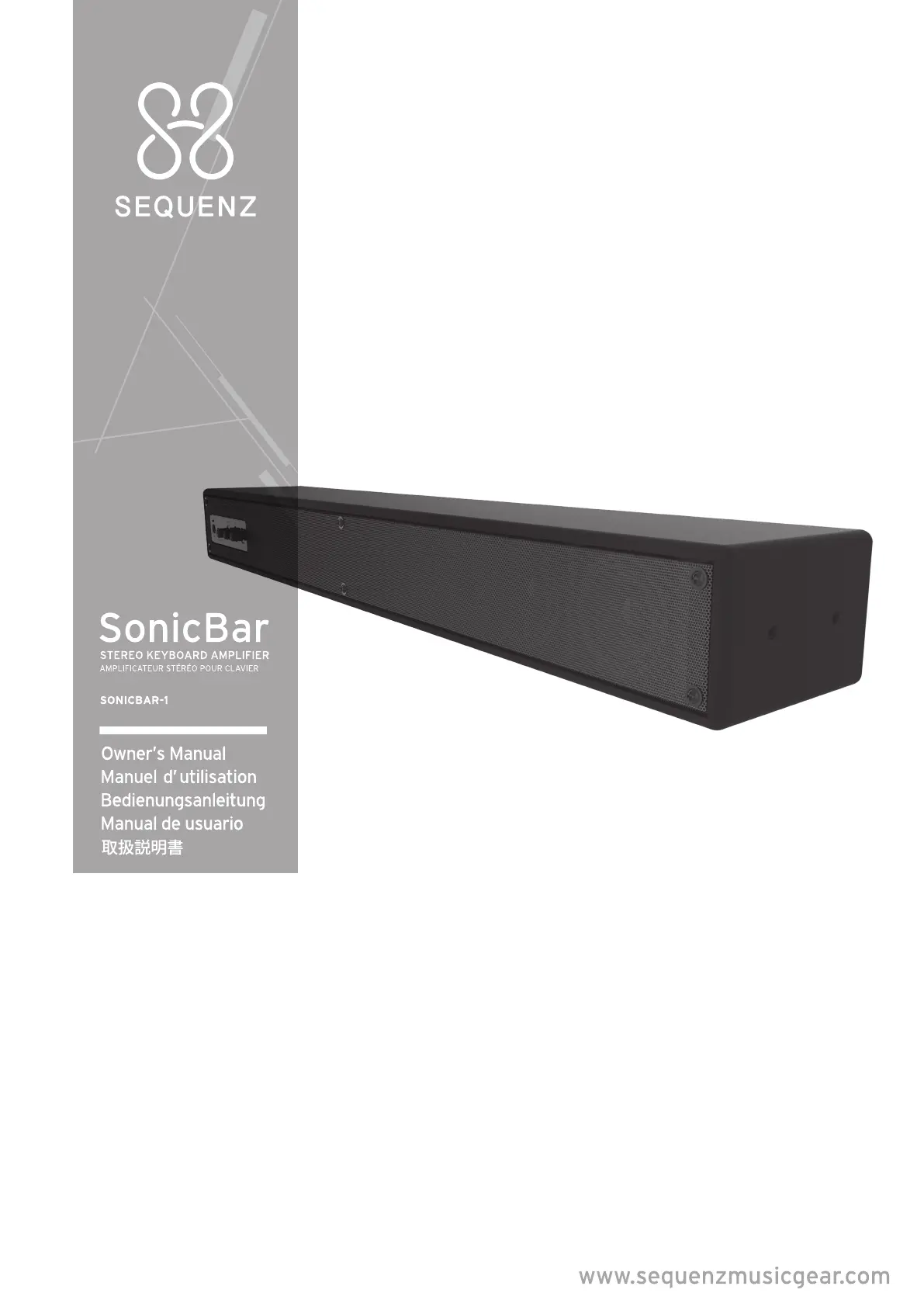

Sequenz SonicBar Bedienungsanleitung

Sequenz Tastatur SonicBar

Lesen Sie kostenlos die 📖 deutsche Bedienungsanleitung für Sequenz SonicBar (12 Seiten) in der Kategorie Tastatur. Dieser Bedienungsanleitung war für 12 Personen hilfreich und wurde von 2 Benutzern mit durchschnittlich 4.5 Sternen bewertet

Download PDF
Seite 1/12
2
Precautions
Location
Using the unit in the following locations can result in a malfunction.
• In direct sunlight
• Locations of extreme temperature or humidity
• Excessively dusty or dirty locations
• Locations of excessive vibration
• Close to magnetic fields
Power supply
Please connect the designated AC adapter to an AC outlet of the correct
voltage. Do not connect it to an AC outlet of voltage other than that for
which your unit is intended.
Interference with other electrical devices
Radios and televisions placed nearby may experience reception interference.
Operate this unit at a suitable distance from radios and televisions.
Handling
To avoid breakage, do not apply excessive force to the switches or controls.
Care
If the exterior becomes dirty, wipe it with a clean, dry cloth. Do not use
liquid cleaners such as benzene or thinner, or cleaning compounds or
flammable polishes.
Keep this manual
After reading this manual, please keep it for later reference.
Keeping foreign matter out of your equipment
Never set any container with liquid in it near this equipment. If liquid gets
into the equipment, it could cause a breakdown, fire, or electrical shock. Be
careful not to let metal objects get into the equipment. If something does slip
into the equipment, unplug the AC adapter from the wall outlet. Then contact
your nearest Korg dealer or the store where the equipment was purchased.
* All product names and company names are the trademarks or registered
trademarks of their respective owners.
THE FCC REGULATION WARNING (for USA)
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
If items such as cables are included with this equipment, you must use
those included items.
Unauthorized changes or modification to this system can void the user’s
authority to operate this equipment.
SUPPLIER’S DECLARATION OF CONFORMITY (for USA)
Responsible Party : KORG USA INC.
Address : 316 SOUTH SERVICE ROAD, MELVILLE, NY
Telephone : 1-631-390-6500
Equipment Type : STEREO KEYBOARD AMPLIFIER
Model : SONICBAR-1
This device complies with Part 15 of FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Notice regarding disposal (EU only)
If this symbol is shown on the product, manual, battery, or
package, you must dispose of it in the correct manner to avoid
harm to human health or damage to the environment. Contact
your local administrative body for details on the correct disposal
method. If the battery contains heavy metals in excess of the
regulated amount, a chemical symbol is displayed below the
symbol on the battery or battery package.
IMPORTANT NOTICE TO CONSUMERS
This product has been manufactured according to strict specifications
and voltage requirements that are applicable in the country in which it
is intended that this product should be used. If you have purchased this
product via the internet, through mail order, and/or via a telephone sale,
you must verify that this product is intended to be used in the country in
which you reside.
WARNING: Use of this product in any country other than that for which it
is intended could be dangerous and could invalidate the manufacturer’s
or distributor’s warranty.
Please also retain your receipt as proof of purchase otherwise your
product may be disqualified from the manufacturer’s or distributor’s
warranty.
Key Specifications
ON/STANDBY
POWER
VOLUME BASS T REBLE
AUX
Min Max
-
+
-
+
900 mm 150 mm
100 mm
Input/Output Terminals:
INPUT 1 Terminals: L and R channels (standard headphone
jack: unbalanced)
INPUT 2 Terminals: L and R channels (standard headphone
jack: unbalanced)
AUX IN Terminal: Stereo mini-headphone jack
THROUGH OUT Terminals: L and R channels (standard headphone
jack: unbalanced)
HEADPHONES Terminal: Stereo mini-headphone jack
Control Devices: POWER button, VOLUME knob, and
tone control knobs (BASS and TREBLE)
Power Amplifier
Output:
Max. 25 W + 25 W (8 Ω)
(25 W per channel)
Speakers: Four 8 cm full-range units (with
equalizer network module)
Power Supply: AC adapter (24 V DC)
Current Consumption: 2.5 A
External Dimensions
(W x D x H):
900 x 150 x 100 mm
(excluding protrusions)
Weight: 5.7 kg
Accessories: AC adapter, power cord, mounting
brackets, screws, and owner's manual
* Note: Due to improvements, specifications and appearance are subject to
change without notice.
3
Name and Function of Each Item
ON /ST ANDBY
POWER
VOLUME BASS TREBLE
AUX
Min Max
-
+
-
+
1
2 3 4 5 6
DC 24V Rch Lch
Rch Lch
INPUT 2
INPUT 1 Rch Lch
THRU OUT
7 8 9
Front Panel
Rear Panel
1 POWER Button and Indicator
The power supply mode switches between ON and STANDBY
each time the button is pressed. The power supply mode can be
confirmed from the power indicator status.
Red: Standby
Green: ON
The standby mode is activated as soon as the power cord is
plugged into the power outlet.
To prevent unexpectedly loud volume, set the VOLUME knob
to the lowest setting.
2 Headphone Terminal
This terminal is for plugging in headphones. The volume can be
adjusted using the VOLUME knob.
The main speakers are muted when headphones are
connected.
3 AUX IN Terminal
This external input terminal is for connecting audio equipment,
for example. Use a stereo mini jack connector cable to connect
devices.
VOLUME, BASS, and TREBLE knob settings also affect the
input into the AUX IN terminal.
Use a cable without a resistor.
4 VOLUME Knob
Adjusts the volume for the entire system.
5 BASS Knob
Boosts or filters the low frequency range for the entire system.
Bass characteristics are flat (no amplification or filtering) when
the knob is in the center position.
6 TREBLE Knob
Boosts or filters the high frequency range for the entire system.
Treble characteristics are flat (no amplification or filtering) when
the knob is in the center position.
7 DC IN (Max. 24 V) Terminal
Used to connect the provided AC Adapter.
8 INPUT 1 and INPUT 2 Terminals
These are standard headphone connector terminals. They are
used to connect the line/level output from electronic musical
instruments, audio devices, and so on.
9 THROUGH OUT Terminals
These are standard headphone output terminals. The output
mixes the INPUT 1, INPUT 2, and AUX IN terminal input volumes.
VOLUME, BASS, and TREBLE knob settings do not affect the
output from the THROUGH OUT terminals.
Mounting the SonicBar to a Standard Series Stand
When mounted on a standard series stand, the mounting position
(forward or backward) and angle can be adjusted based on the given
operating environment. Decide the desired mounting position before
setting up the SonicBar.
Recessed position
Forward position
[1] The unit is mounted via mounting brackets attached to
each end.
[a]
[b]
Screws
Bracket
Side View
Fasten the brackets in position [a] to mount the speaker
in the forward position or in position [b] to mount it in a
recessed position.
[2] Use the bracket hooks to hang the speaker below the stand.
①
②
Keyboard holder
If a keyboard holder interferes with the brackets, remove the
keyboard holder before mounting the speaker.
[3] Loosen the screws located toward the back to adjust the
angle.
Side View
When finished adjusting the angle, securely retighten the
screws.
[4] Connect the AC adapter.
Connect the AC adapter to the speaker after connecting the
power cord.
Power Auto-OFF Function
If no input is detected for more than about four continuous hours, the
power supply automatically switches to the standby mode. To switch
it from standby back to the ON mode, switch the power OFF and ON.
In some cases, the auto-OFF function reacts to ambient noise, for
example, is not activated even when no music is being played.
How to Disable the Power Auto-OFF Function
1. With the power supply ON, hold down the POWER button for
at least 3 seconds.
2. Then confirm that the POWER indicator flashes three times
after your finger is released.
The auto-OFF function is enabled again after the power has
been switched OFF.
