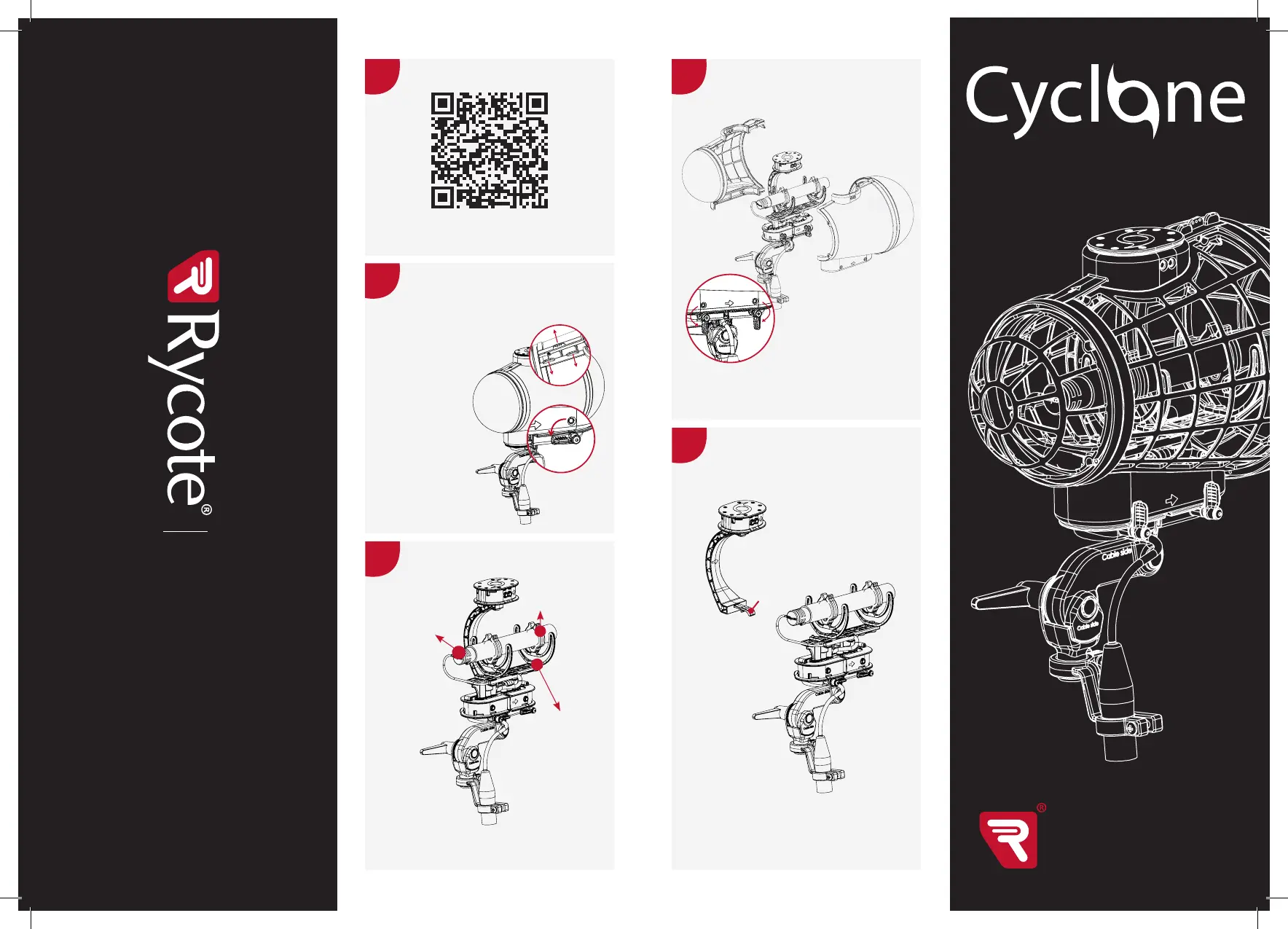

Quick Start Guide
SMALL
Advanced Windshield System
Removing windshield
from the suspension
2
1 Undo safety catches
on both sides
2 Use release tabs to separate the two
sections of the windshield
3 Pull windshield away from
lower & upper suspension
Fitting microphone
3
Fit the input
connector
to the mic
(XLR model
shown)
Fit the mic into the
suspension
Support the mic
by evenly
positioning the
Lyres along
its length
The Lyres can be moved or replaced using
the hex key supplied.
2
1
3
Download Instructions
1
Removing and
retting the C-Arm
5
If the suspension is needed in a restricted
space, like a ceiling shot, the suspension
can be used without the C-Arm fitted.
Re-tting is the reverse, and
ensure to push the C-Arm in
rmly until fully home
Whilst pulling the C-Arm, press down the
release tab and the C-Arm will pull out
Release tab
Fitting windshield
to suspension
4
1 Ensure safety catches
are in the open position
on both sides
3 Rotate the four safety catches into closed position
2 Fit both sides of the windshield to the
upper & lower basket suspension pods
Rycote Microphone Windshields Ltd
Libby’s Drive, Slad Road, Stroud, Glos, GL5 1RN, U.K.
Email: tech_support@rycote.com Tel: +44 1453 759338
03/2016
Trusted By
Professionals
More information and full instructions can be downloaded here
www.rycote.zendesk.com/hc/en-us/articles/207948165-
Cyclone-User-Guide
Basket View
Suspension View - XLR model
1. Release Tabs
2. Windshield, Right
3. Safety Catch
4. Boom Adaptor
5. Neutrik XLR 3-Pin male
6. XLR Holder
7. Windshield, Left
8. Basket Suspension (top)
1. Lyre
2. Basket Suspension (lower)
3. Safety Catch
4. Neutrik XLR 3-Pin male
5. XLR Holder
6. Boom Adaptor
7. Oset Link
8. Rycote Short XLR
9. C-Arm
10. Basket Suspension (upper)
Specications
The Cyclone Small is available in three different
model variants: XLR; LEMO and MZL.
Cyclone Windshield Kit, Small (XLR)
089103
Mic Lengths: 75 mm - 160 mm
Mic Diameters: 19 mm – 25 mm
Max. Weight of Mic: 110 grams
Mic Connector: XLR 3-pin Female
Output Connector: XLR 3-pin Male
Overall Length: 297 mm (11.7 inch)
Body Length: 142 mm (5.6 inch)
Max. Diameter: 157 mm (6.2 inch)
Height: 230 mm (9 inch)
Weight: 568 g (20 oz)
Compatibility
DPA 4017C, 4018C
Neumann KM100 Series
Schoeps CMC Series
Sennheiser MKH 8040*, MKH 8050*
MKH 50
What’s in the box?
• Cyclone Windshield System
• Cyclone Cable (fitted)
• Hex key driver, for adjustment of Lyres
• Offset Link Adaptor Plates
• Quick Start Guide
• Rycote Sticker
Optional Accessories
• Cyclone Windjammer, Small (029103)
• Extension handle (037301)
• Cyclone w/Tac!T cable, XLR-3f (017034)
Removing the Oset Link
You may prefer to remove the Offset Link and re-
attach the boom adaptor directly to the base of the
lower suspension assembly (using the Offset Link
Adaptor Plates provided). Detailed instructions are
provided in the Cyclone User Guide, which you can
access on our website at https://rycote.zendesk.
com/hc/en-us/articles/207948165-Cyclone-User-
Guide or scan the QR code overleaf.
(* Our recommendation for the Sennheiser
MKH8040/8050 is the Cyclone Small (XLR) model,
based on the use of the Sennheiser MZX module
with these microphones. If you wish to use either
of these mics without the MZX module attached,
they will then be compatible with the Cyclone Small
(MZL).
Thank you for choosing the
Cyclone Windshield! The
following Quick Start Guide
provides you with the basics
to get you started.
Full details about this product are available on
our website, where you can also download more
detailed instructions.
Quick Start Guide
Cyclone Small
Cyclone Windshield Kit, Small (LEMO)
089104
The details for this LEMO version of the Cyclone Small
are as-per the XLR version noted above (albeit with
a marginal weight saving, based on the use of the
LEMO connector). This version of the Cyclone Small
comes fitted with a LEMO microphone connector, for
use with the Schoeps CCM series of microphones.
Compatibility
Schoeps CCM Series
1
4
8
6
5
3
2
9
7
1
2
3
4
5
6
7
8
Cyclone Windshield Kit, Small (MZL)
089105
The details for this MZL version of the Cyclone Small
are as-per the XLR version noted above. This version
of the Small Cyclone comes fitted with an MZL
microphone connector.
Compatibility
Sennheiser MKH 8060*
All weights & dimensions are approximate
Key Features
• Superb acoustic transparency - the open
shell structure with no parallel surfaces
greatly reduces room-tone effects & provides
a clean frequency response;
• Massive wind noise reduction - asymmetric
basket covered with 3D-Tex® material
provides enormous benefits in terms of
surface turbulence & acoustic impedance. An
optional Cyclone Windjammer can be used
for the most extreme weather conditions;
• Advanced shock isolation - with industry-
leading Rycote Lyre® microphone suspension
and exclusive Floating Basket Suspension
(Pat. Pending) with built-in Lyre technology,
for additional vibration isolation between
basket and pole;
• The detachable Offset Link bracket, included
with Cyclone Small models, provides mic-axis
articulation for ideal microphone placement;
• Quick & Easy - unique Z-Locking System
with magnetic locking for instant windshield
removal/attachment;
• Lightweight, durable construction &
materials - to withstand extreme field use.
Overview
Quick. Clear. Consistent.
The Cyclone Small premium microphone
windshield system delivers outstanding
performance for small diaphragm condenser
and short shotgun microphones alike.
10
Our customers are involved with some
amazing projects and use Rycote
products out in the field every day.
To read more
rycote.com/on-location
| On Location
