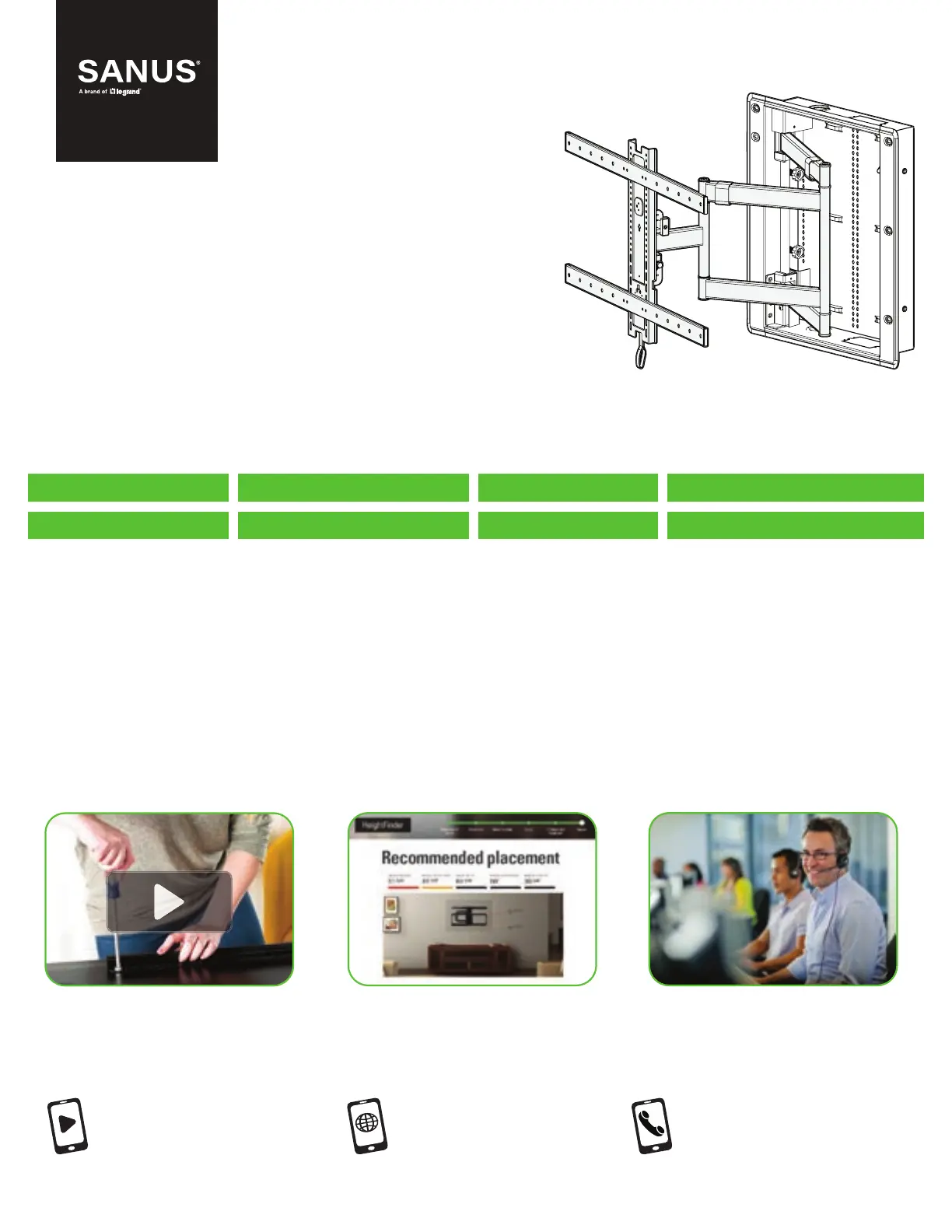

VIWLF128-B2
INSTRUCTION MANUAL
WE’RE HERE TO HELP
Our live install experts are
standing by to help.
Call us at:
US: +1 (800) 359-5520
EMEA: +31 (0) 495 580 852
UK: +44 (0) 800 056 2853
Get it right the first time.
HeightFinder™ shows you
where to drill.
Use it now:
SANUS.com/2567
Want to watch a video that
shows how easy this is?
Watch it now at:
SANUS.com/3151
Texto en espol, página 12 Deutscher Text Seiten 16 Svensk text sida 20
中文文字说明请参见第 24
Texte fraais page 14 Nederlandse tekst op pagina 18
Русский текст: стр. 22 日本語は 26 ペー
2
Wall
Construction
IMPORTANT SAFETY INSTRUCTIONS
– PLEASE READ MANUAL PRIOR TO USE SAVE THESE INSTRUCTIONS
WARNING: Avoid potential personal injuries and property damage!
DO NOT INSTALL THIS MOUNT IN A FIREWALL (The wall between a garage and a living space, or the wall between two condominiums or occupancies sharing a wall).
Contact your local building inspector before cutting a hole in the drywall if unsure.
This product is designed ONLY to be installed into wood stud walls — DO NOT INSTALL INTO DRYWALL ALONE
Do not use this product near water; such as a bath tub, wash bowl, kitchen sink, laundry tub, swimming pool, or in a wet basement.
Equipment shall be installed in accordance with ANSI/NFPA 70, National Electrical Code (NEC), NFPA 72, CAN-ULC-S540, Canadian Electrical Code,
and/or other applicable sections of ANSI/IEEE C2 & National Electrical Safety Code (NESC). Equipment intended for installation in information
technology equipment (computer) rooms should be installed in accordance with NFPA 75, Standard for the Fire Protection of Information
Technology Equipment.
Installation shall be completed by a professional electrical contractor or low voltage technician.
Do not use this product for any purpose not explicitly specified by manufacturer
Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
Please read through these instructions completely to be sure you’re comfortable with this easy install process.
Check your TV owner’s manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product,
contact Customer Service: [US]: +1 (800)-359-5520 [EMEA]: +31 (0) 495 580 852 [UK]:+44 (0) 800 056 2853.
135 lbs.
(61.2 kg)
TV Weight Limit
(including accessories)
DO NOT EXCEED
If your TV (plus accessories) weighs MORE, this
mount is NOT compatible.
Visit SANUS.com or call customer service to find a
compatible mount.
Tools
Needed
AwlPencil Level TapeStud
Finder ScrewdriverTape
Measure
1/8 in.
(3 mm)
Drill BitElectric Drill
Call Customer Service:
[US]: +1 (800)-359-5520
[EMEA]: +31 (0) 495 580 852
[UK]:+44 (0) 800 056 2853
ONLY install on
wood stud wall.
Drywall alone
will NOT hold the
weight of your TV.
Unsure
wood studs
16" spacing
ACCEPTABLE
CAUTION:
DO NOT install
in drywall alone
3
Dimensions
3.9
100.0
23.6
600.0
3.9
100.0
15.7
400.0
18.1
460.8
20.8
529.0
2.5
63.5
7.8
196.9
15.5
393.7
16.0
406.4
24.9
632.6
67°
67°
UP
15°
DOWN
28.0
710.6
14.0
355.6
0.5
13.5
3.9
98.0
19.3
490.9
SIMULATED 65"
FLAT SCREEN TV
TV INTERFACE
WALL PLATE
TOP VIEW - EXTENDED
3-D
SIDE VIEW - EXTENDED
SIDE VIEW RETRACTED
TOP VIEW - RETRACTED
FULLY ASSEMBLED MOUNT
BEFORE YOU BEGIN
Remove the stand
from your TV — if attached.
Install any accessories
you may have purchased, if they requireTV
removal prior to assembly. The TV is removable
for future accessory purchases.
Soft clean surface
Protect the face
of your TV when laying it down for
installation.
