Seite 1/20

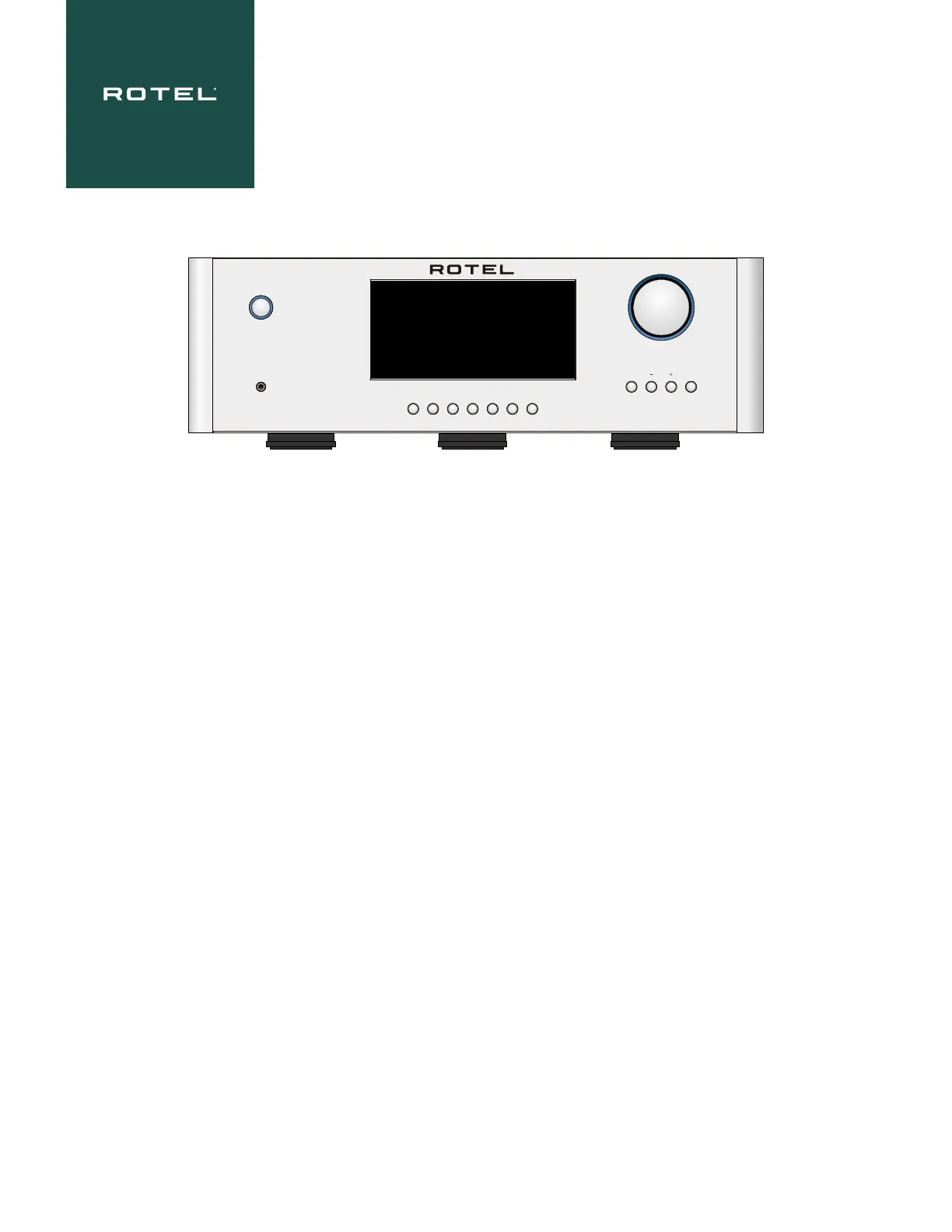

RAS-5000
Amplied Streamer
Streamer Amplié
Verstärkter Streamer
Streamer amplicado
Versterkte streamer
Streamer amplicato
Förstärkt Streamer
Интегрированный Сетевой Стример
Owner’s Manual
Manuel de l’utilisateur
Bedienun gsanleitung
Manual de Instrucciones
Gebruikershandleiding
Manuale di istruzioni
Instruktionsbok
Инструкция пользователя
2
RAS-5000 Amplied Streamer
cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
The apparatus should be used in non tropical
climate.
The ventilation should not be impeded by
covering the ventilation openings with items,
such as newspapers, table-cloths, curtains, etc.
No naked flame sources, such as lighted candles,
should be placed on the apparatus.
Touching uninsulated terminals or wiring may
result in an unpleasant sensation.
You must allow a minimum 10 cm or 4 inches
of unobstructed clearance around the unit.
WARNING: The rear panel power cord connector
is the mains power disconnect device. The
device must be located in an open area that
allows access to the cord connector.
The unit must be connected to a power supply
only of the type and voltage specified on the
rear panel. (USA: 120 V/60Hz, EC: 230V/50Hz)
Connect the component to the power outlet
only with the supplied power supply cable or
an exact equivalent. Do not modify the supplied
cable. Do not use extension cords.
The mains plug is the disconnect of the unit. In
order to completely disconnect the unit from
the supply mains, remove the main plug from
the unit and the AC power outlet. This is the
only way to completely remove mains power
from the unit.
Use Class 2 wiring for speaker connections to
ensure proper installation and minimize the
risk of electrical shock.
The batteries in the remote control should not
be exposed to excessive temperature such as
sunshine, re or other heat sources. Batteries
should be recycled or disposed as per state and
local guidelines.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following to
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
Notice
The RS232 connection should be handled by
authorized persons only.
WARNING: There are no user serviceable parts
inside. Refer all servicing to qualified service
personnel.
WARNING: To reduce the risk of fire or electric
shock, do not expose the unit to moisture or
water. Do not expose the unit to dripping or
splashing. Do not place objects filled with liquids,
such as vases, on the unit. Do not allow foreign
objects to get into the enclosure. If the unit is
exposed to moisture, or a foreign object gets
into the enclosure, immediately disconnect
the power cord from the wall. Take the unit to
a qualified service person for inspection and
necessary repairs.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has
two blades with one wider than the other. A
grounding type plug has two blades and a
third grounding prong. The wide blade or the
third prong are provided for your safety. If the
provided plug does not fit into your outlet,
consult an electrician for replacement of the
obsolete outlet.
Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
Only use attachments/accessories specified by
the manufacturer.
Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer,
or sold with the apparatus. When
a cart is used, use with caution
when moving the cart/apparatus
combination to avoid injury from
tip-over.
Unplug this apparatus during lightning storms
or when unused for long periods of time.
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
Rotel products are designed to comply
with international directives on the
Restriction of Hazardous Substances
(RoHS) in electrical and electronic
equipment and the disposal of Waste
Electrical and Electronic Equipment
(WEEE). The crossed wheelie bin
symbol indicates compliance and that
the products must be appropriately
recycled or processed in accordance
with these directives.
Important Safety Instructions
This symbol means that this unit
is double insulated. An ear th
connection is not required.
interference received, including interference
that may cause undesired operation.
3
Figure 1-1: Controls and Connections
Commandes et Branchements
Bedienelemente und Anschlüsse
Controles y Conexiones
Controlli e connessioni
De bedieningsorganen en aansluitingen
Kontroller och anslutningar
Органы управления и разъемы
1: Power Button
Activate the unit or put it into standby mode
2
: Power LED
3
: Headphone Output
Connect headphones for private listening.
4
: Source Button
Selects the input signal source.
5
: Display
6
: Volume Knob
Adjust the volume output level.
7
: MENU and - / + buttons
Access the various menus and operate the Amplifier
settings.
12 3
4 5 6
7
