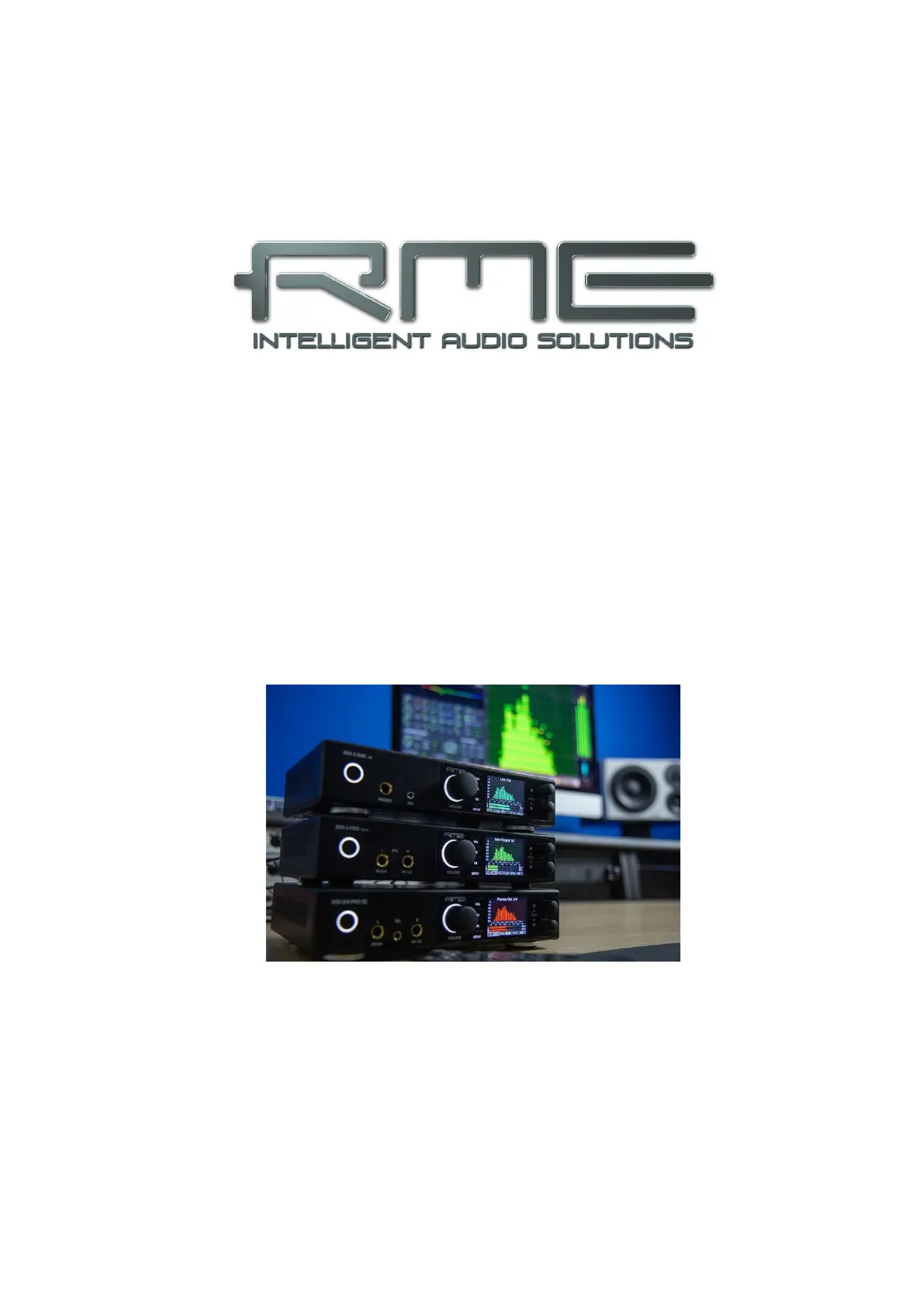

User’s Guide

Controlling the ADI-2 Series

from macOS, Windows and iPad

User’s Guide ADI-2 Remote - v 2.0

1 Introduction 3...............................................................

2 System Requirements............................................... 3

3 Software Installation ................................................. 4

4 After Installation: First Step Backup!– ................... 4

5 Overview 5 ....................................................................

6 Quick Guide ............................................................... 6

7 App Menu ................................................................... 8

7.1 File Load Factory EQ Examples – – ...................... 8

7.2 Options Settings –.................................................. 9

7.3 Options Enter Fullscreen Mode– ........................ 10

7.4 Window Zoom 100% –......................................... 10

7.5 Window Show State Overview –.......................... 10

8 The Pages

8.1 Line Input

8.1.1 General ............................................................. 11

8.1.2 Parametric EQ .................................................. 11

8.1.3 Advanced Settings ............................................ 12

8.2 Line Output

8.2.1 General ............................................................. 13

8.2.2 Parametric EQ .................................................. 14

8.2.3 Advanced Settings ............................................ 15

8.3 Phones Output ................................................... 16

8.4 Device

8.4.1 Device Mode ..................................................... 17

8.4.2 Phones .............................................................. 18

8.4.3 Clock Settings ................................................... 18

8.4.4 Hardware .......................................................... 19

8.4.5 Display .............................................................. 20

8.4.6 Setups .............................................................. 21

8.5 EQ Presets

8.5.1 EQ Preset Editor ............................................... 21

8.5.2 EQ Presets .......................................................22

9 Appendix .................................................................. 23

User’s Guide ADI –-2 Remote v 2.0

1. Introduction

RME’s ADI-2 Pro, a true milestone, was released in 2016. Followed by the ADI-2 DAC, ADI-2 Pro

AE (Anniversary Edition), ADI-2 Pro FS, ADI-2 Pro FS R BE and lately the ADI-2/4 Pro SE, RME

has successfully combined usability with exibility, and brought professional features into the

home and HiFi market.

7 years later RME once again shows what long-term relationship between RME developers and

RME customers means: The newly released ADI-2 Remote for macOS, Windows and iPadOS

not only comes for free, but also supports ALL devices of the ADI-2 series, back to the very rst

ADI- Pro from 16!* 2 20

* The original ADI- AD/DA converter does not have USB or DSP, and as such is not part of this series. 2

The software : ADI-2 Remote can be downloaded from RME’s website

Windows: https://www.rme-audio.de/downloads/adi2remote_win.zip

macOS: https://www.rme-audio.de/downloads/adi2remote_mac.zip

iPadOS ADI-2 Remote: available via Apple’s App Store as .

Please note the below system requirements, for updated rmware, matching driver and computer

hardware.

The MIDI protocol used by the ADI-2 Remote is available for downloaded as an Excel document:

https://www.rme-audio.de/downloads/adi2remote_midi_protocol.zip

2. System Requirements

Firmware

For the software to communicate with the ADI-2 device, and to support all nal features, make

sure you have these latest rmware versions in use:

ADI-2 DAC: USB 81, DSP 61

ADI-2 Pro: USB 7, DSP 7 26 12

ADI-2/4 Pro SE (Hw Rev 6): USB 72, DSP 39

ADI-2/4 Pro SE (Hw Rev.7): USB 9, DSP 3920

The latest rmware version comes in a FUT (Firmware Update Tool), download here:

Windows: https://www.rme-audio.de/downloads/fut_madiface_win.zip

macOS: https://www.rme-audio.de/downloads/fut_madiface_mac.zip

Note: To update the rmware under Windows, the installed MADIface series driver is required.

See the ADI-2 manual.

Windows

The ADI-2 Remote uses the same graphics engine as , so the same system re-DigiCheck NG

quirements apply: , and a graphics card that supports . This Windows 10 or higher Direct3D 12

might exclude some older computers, even when running Windows 10, for example with Intel

integrated graphics HD4600 and HD4000.

More information on Direct3D and an overview of supported graphics cards is available here:

https://en.wikipedia.org/wiki/Feature_levels_in_Direct3D
