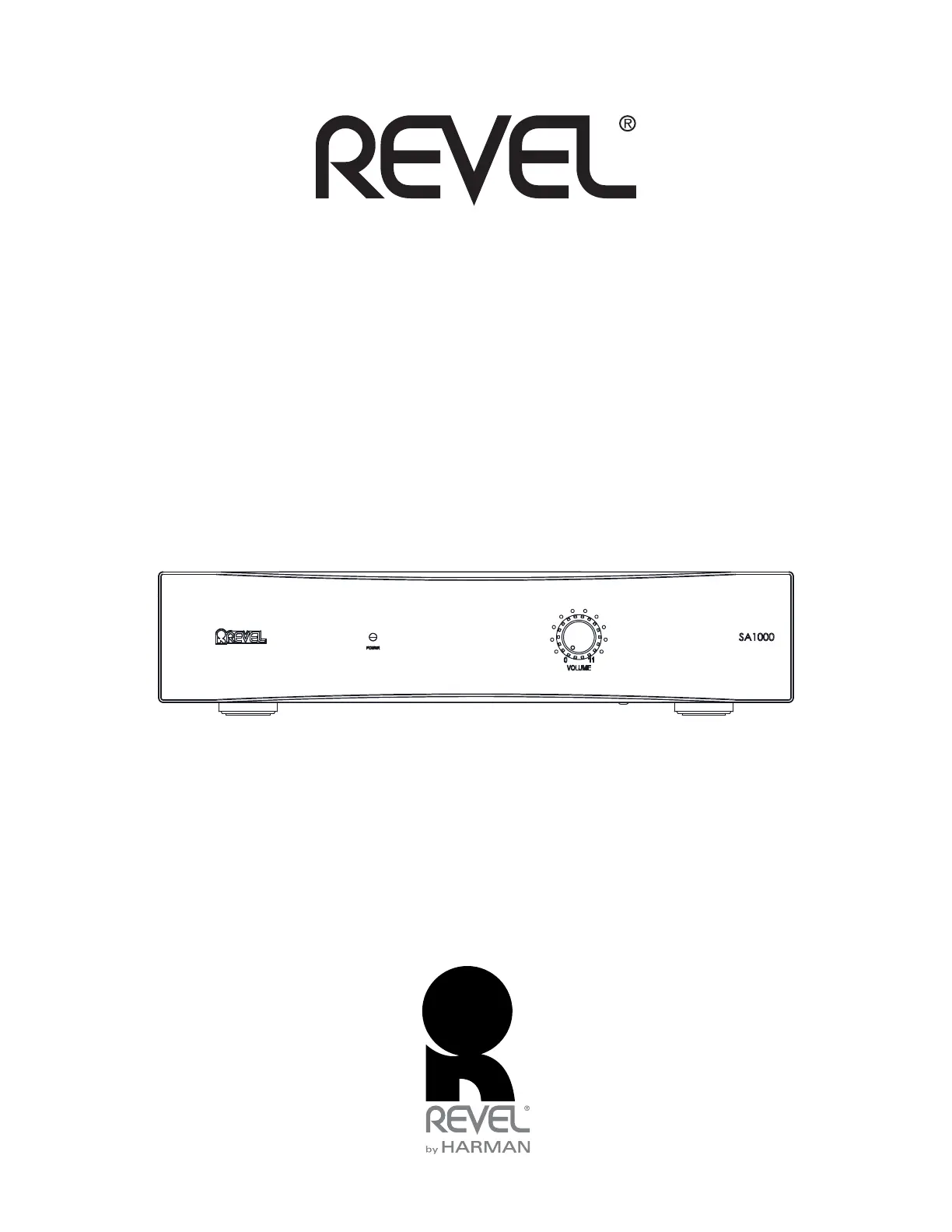

SA1000 Subwoofer Ampliļ¬er
Ownerās Manual
2SA1000 Subwoofer Ampliļ¬er
Ownerās Manual
TABLE OF CONTENTS
About RevelĀ® ................................................................. 2
About Your RevelĀ® SA1000 Subwoofer Ampliļ¬er .... 3
Product Highlights .................................................... 3
Whatās In The Box ..................................................... 3
Unpacking...................................................................... 3
Front Panel Layout......................................................... 3
Rear Panel Layout ......................................................... 4
Connections .............................................................. 4
Equalization .............................................................. 4
Installation .................................................................... 5
Cooling Requirements ................................................... 5
Connections/Ampliļ¬er .................................................. 5
Conļ¬gurations/Wiring................................................... 6
Troubleshooting ............................................................. 7
Speciļ¬cations ................................................................ 7
Warranty ....................................................................... 8
Congratulations and Thank You for purchasing your new REVELĀ® SA1000
Subwoofer Ampliļ¬er.
Please take the time to read the following installation and setup
information in order to optimize your the performance of your ampliļ¬er
and architectural subwoofer system.
ABOUT REVELĀ®
Since 1996, REVELĀ® has stood at the forefront of loudspeaker design
and performance. Backed by Harman Internationalās world leading
research and design facilities, REVEL
Ā® loudspeakers beneļ¬t from
cutting-edge resources such as:
ā¢ Multiple large anechoic chambers which allow for precise testing
and measurements.
ā¢ A multi-channel listening lab for double-blind, position independent
listening tests.
ā¢ A laser interferometer that enables detailed driver and cabinet
analysis.
ā¢ Finite element analysis, utilized for advanced loudspeaker modeling.
ā¢ A stereo lithography apparatus, which rapidly ābuildsā tooled parts.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturerās instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves or other apparatus (including ampliļ¬ers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding-
type plug has two blades and a third grounding prong. The wide blade or the
third prong is provided for your safety. If the provided plug does not ļ¬t into
your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles and the point where they exit from the apparatus.
11. Only use attachments/accessories speciļ¬ed by the manufacturer.
12. Use only with the cart, stand, tripod, bracket or table speciļ¬ed by
the manufacturer or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long
periods of time.
14. Refer all servicing to qualiļ¬ed service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power supply
cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, or the apparatus has been exposed to rain or moisture,
does not operate normally or has been dropped.
15. Do not expose this apparatus to dripping or splashing and ensure that no
objects ļ¬lled with liquids, such as vases, are placed on the apparatus.
16. The mains plug is used as disconnect device, the disconnect device shall
remain readily operable.
17. WARNING: Apparatus shall be connected to a MAINS socket outlet with a
protective earthing connection.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR.
The lightning ļ¬ash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated ādangerous voltageā within the productās enclosure
that may be of sufļ¬cient magnitude to constitute a risk of electric
shock to persons.
Warning: To reduce the risk of electric shock, do not
remove cover (or back) as there are no user-serviceable
parts inside. Refer servicing to qualiļ¬ed personnel.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the product.
WARNING: To reduce the risk of ļ¬re or electric shock, do not
expose this apparatus to rain or moisture. Operating Temperature
35ĖC.
3
SA1000 Subwoofer Ampliļ¬er
Ownerās Manual
ABOUT YOUR REVELĀ® SA1000 SUBWOOFER AMPLIFIER
The SA1000 subwoofer ampliļ¬er is a high efļ¬ciency Class D
ampliļ¬er speciļ¬cally designed to be used in conjunction with REVEL
Ā®
Architectural subwoofers. It is optimized to give the best dynamics
and frequency response of REVELĀ® Architectural subwoofers, and is
speciļ¬cally designed to drive their highly reactive load impedances.
NOTE: The EQ and headroom management have been speciļ¬cally
designed for REVELĀ® Architectural subwoofers! Use of the
SA1000 with any other subwoofers could lead to damage of the
subwoofer or the SA1000 ampliļ¬er. Contact your dealer or visit
www.revelspeakers.com for the latest list of models that can be
safely used with your SA1000 ampliļ¬er.
PRODUCT HIGHLIGHTS
ā¢ Wide dynamic range
ā¢ Low distortion and low noise
ā¢ 2 EQ modes (Customized for in-wall and in-ceiling subwoofers)
ā¢ User-adjustable Single-band PEQ (Room Equalization)
ā¢ Automatic Turn-On (detecting signal presence) and Turn-Off after 10
minutes with no signal
ā¢ Short-circuit and over-current protection
ā¢ Over-temperature compensation
ā¢ Two dual-banana output connectors for easy installation and
connection to REVELĀ® Architectural in-wall or in-ceiling subwoofers
(Maximum of 2 subwoofer modules per ampliļ¬er)
WHATāS IN THE BOX
ā¢ 1 x SA1000 Subwoofer Ampliļ¬er
ā¢ 2 x Rack Mount brackets
ā¢ 4 x Screws for installing rack mount brackets
ā¢ 1 x SA1000 Ownerās Manual
ā¢ 1 x Power Cord
UNPACKING
Carefully unpack the ampliļ¬er and accessories. If you suspect damage
from transit, report it immediately to your dealer and/or delivery service.
Keep the shipping carton and packing materials for future use.
WARNING: Before you start to set up your ampliļ¬er, make sure
you read and observe the Important Safety Instructions found at the
beginning of this manual.
1. Power LED
The Power Indicator LED identiļ¬es the current state of the SA1000
ampliļ¬er. The ampliļ¬er has three different powered states:
ā¢ Red: Standby ā the SA1000 automatically enters Standby if no signal
is detected from the system for 10 minutes.
ā¢ Green: On ā the SA1000 turns on to the āOnā state, or when a signal
is detected.
ā¢ No Light: Off - the AC mains power switch is in the off position or the
SA1000 is unplugged.
2. Volume Control
Adjusts the volume level of the ampliļ¬er.
FRONT PANEL LAYOUT
Figure 1: Front-panel controls and indicators
1 2
