PRECISIONEERED RELOADING EQUIPMENT
We think that we make the very best reloading equipment in the world. If you
agree, please tell your friends. If you disagree, tell us we want to do something
about it!
Customer Service
1-800-533-5000 (US or Canada) or 530-533-5191
Hours: Monday - Thursday, 6:30am - 3:00pm Pacific Time
(hours may vary)
e-mail: rcbs.tech@atk.com or visit our website at www.rcbs.com
RCBS 605 Oro Dam Blvd. Oroville, CA 95965
CCI - SPEER - RCBS
OUTERS - RAMLINE - ORBEX – FEDERAL
7200547-12/06

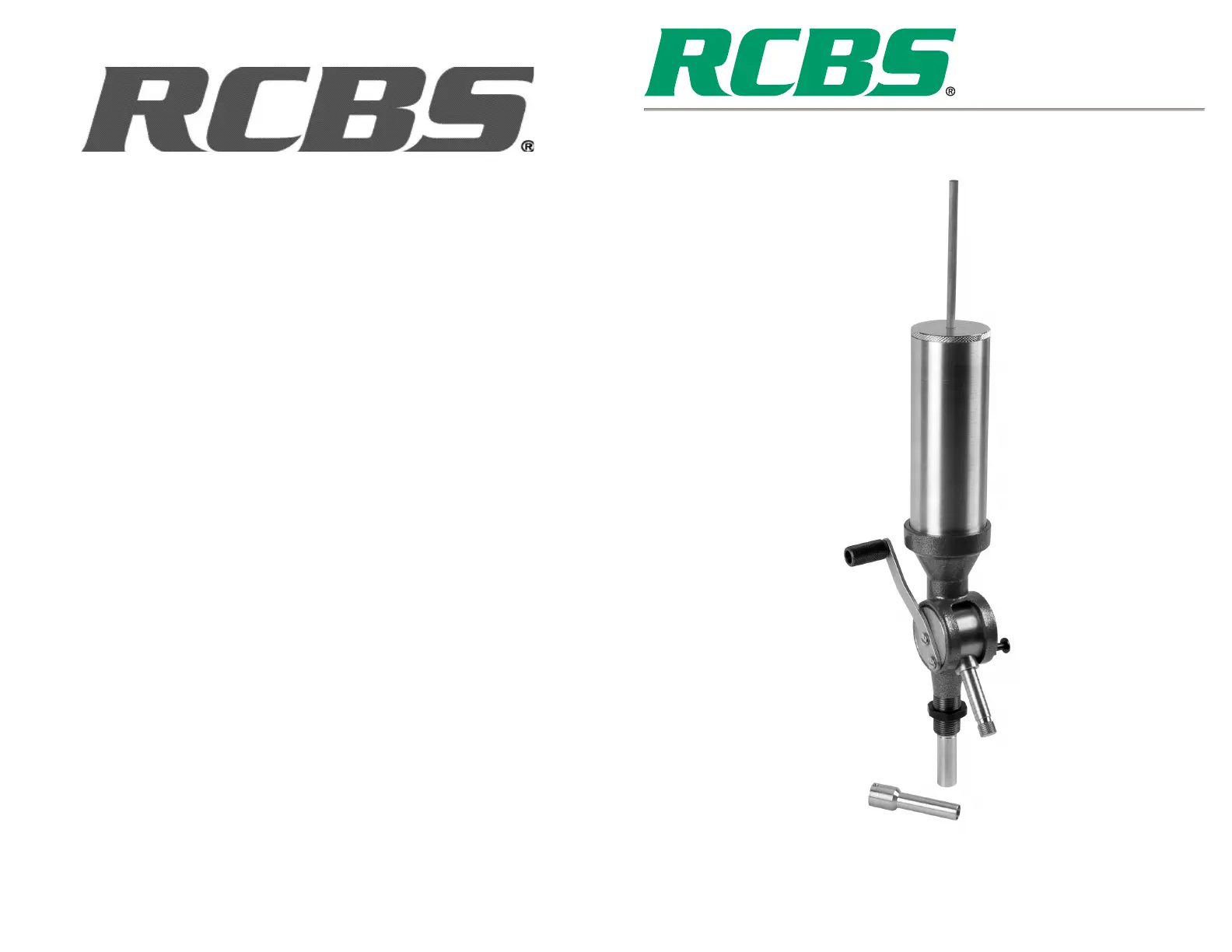

BLACK POWDER MEASURE
PRODUCT INSTRUCTIONS
SAFETY
Reloading is an enjoyable and rewarding hobby that is easily conducted with
safety. But carelessness or negligence can make reloading hazardous. This product has
been designed from the beginning with the user’s safety in mind.
As with any reloading operation, some safety rules must be followed. By
observing these few rules, the chance of hazardous occurrence causing damage or injury
becomes extremely remote.
GENERAL
• Use the equipment as the manufacturer recommends. Study the instructions
carefully and become thoroughly familiar with the operation of the product. Don’t
take short cuts.
• Observe “good housekeeping” in the work area. Keep tools and components neat,
clean and orderly. Promptly clean up any powder spills.
• Always wear adequate eye protection.
• If any unusual resistance is encountered when moving the operating handle, STOP
IMMEDIATELY and investigate the cause. To proceed against unusual resistance
may damage equipment and/or cause serious injury!
LOADING DATA
• Use only laboratory tested data. We highly recommend the use of the SPEER
Reloading Manual.
• OBSERVE ALL WARNINGS ABOUT THE USE OF MAXIMUM LISTED
LOADS.
POWDER HANDLING
• Store primers and powder beyond the reach of children and away from heat,
dampness, open flames and electrical equipment.
• DO NOT use any powder unless its identity is positively known. Discard all mixed
powders and those of uncertain or unknown identity.
• Before charging cases, settle the powder in the powder hopper. Throw and check the
weight of at least ten charges. This will assure you that the correct powder charge is
being thrown.
• After a reloading session ends, return the remaining powder back into its original
factory container. This will preserve the identity and shelf life of the powder.
• DO NOT smoke while handling powder or primers.
• Black Powder MUST be emptied from the measure IMMEDIATELY after use.
RECORD KEEPING
• Keep complete records of reloads. Apply a descriptive label to each box showing the
date produced, and the primer, powder and bullet used. Labels for this purpose are
packed with SPEER bullets.
Since RCBS has no control over the choice of components, the manner in which they
are assembled, the use of this product, or the firearms in which the resulting
ammunition may be used, no responsibility, either expressed or implied, is assumed
for the use of ammunition reloaded with this tool.
Drain Attachment installation position Powder hopper “drain” position
TO REMOVE A CYLINDER
To remove a measuring cylinder for cleaning, first empty the powder hopper
using the previously described operation. Then pull the Lock Pin and remove the
Drain Tube. You can then either remove the two handle screws and handle or the
Lock Pin Assembly and carefully slide out the measuring cylinder.
Do not attempt to remove the powder hopper from the main casting.
STORAGE
Due to the corrosive nature of Black Powder, the Black Powder Measure must
be disassembled, cleaned and lubricated for storage after each use. Consequently,
the Black Powder Measure must be cleaned to remove the storage lubrication prior
to each use. Failure to follow these instructions will cause the metal parts to
corrode, corrosion is NOT covered by the lifetime warranty.
Item Oty Part No Description
1 2 7109019 Handle Screw
2 1 7109033 Hopper
3 1 7109187 Lock Ring
4 1 7109027 Handle Assy
5 1 7198815 Body
6 1 7198816 Cylinder
7 1 7198817 Powder Sleeve
8 1 7198821 Hopper Cap
9 1 7798822 Low Powder Disc
10 1 7798823 Low Powder Rod
11 1 7798824 Drain Tube
12 1 7798826 Metering Screw Assy
13 1 7798821 Drop Tube Assy
2 7138285 Drop Tube O Ring
14 1 7798856 Lock Pin Assy
GENERAL INFORMATION
The Black Powder Measure will perform two powder charging tasks in one fast,
simple operation. Cycling of the handle will accurately measure powder within a
fraction of a grain and swiftly dispense it into a case, one after another. Powder
pours uniformly from the powder hopper into the measuring cylinder, through the
drop tube and into the case. You can change from one charge to another quickly and
easily by adjusting the brass metering screw.
The powder level is visible at all times due to the low powder follower rod
which ‘rides’ the powder stack down.
The measuring cylinder has a precision-machined surface and slides into the
honed main casting for a precise fit. The lower portion of the main casting has the
standard 7/8”-14 threads and may be used on an optional Powder
Measure/Piggyback Stand or Advanced Powder Measure Stand.
A powder measure is basically a device which measures powder by volume and
not by weight. However, before you start throwing a given charge with this powder
measure, the first charges must always be weighed on a powder scale to arrive at the
desired charge. Accurate powder measure charges will also depend upon the size
and uniformity of the powder kernels used, and how smoothly and uniformly you
operate the powder measure handle. For consistency, it is imperative that you follow
a set routine when throwing charges of powder.
Due to the corrosive nature of Black Powder, the Black Powder Measure must
be disassembled, cleaned and lubricated for storage after each use.
TO ASSEMBLE
To prepare the Black Powder Measure for use, the measuring cylinder,
measuring screw, drain attachment, inside of main casting and powder funnel
portion of main casting must be cleaned to remove the factory applied rust
preventative. Failure to do so will cause inconsistent powder charges.
