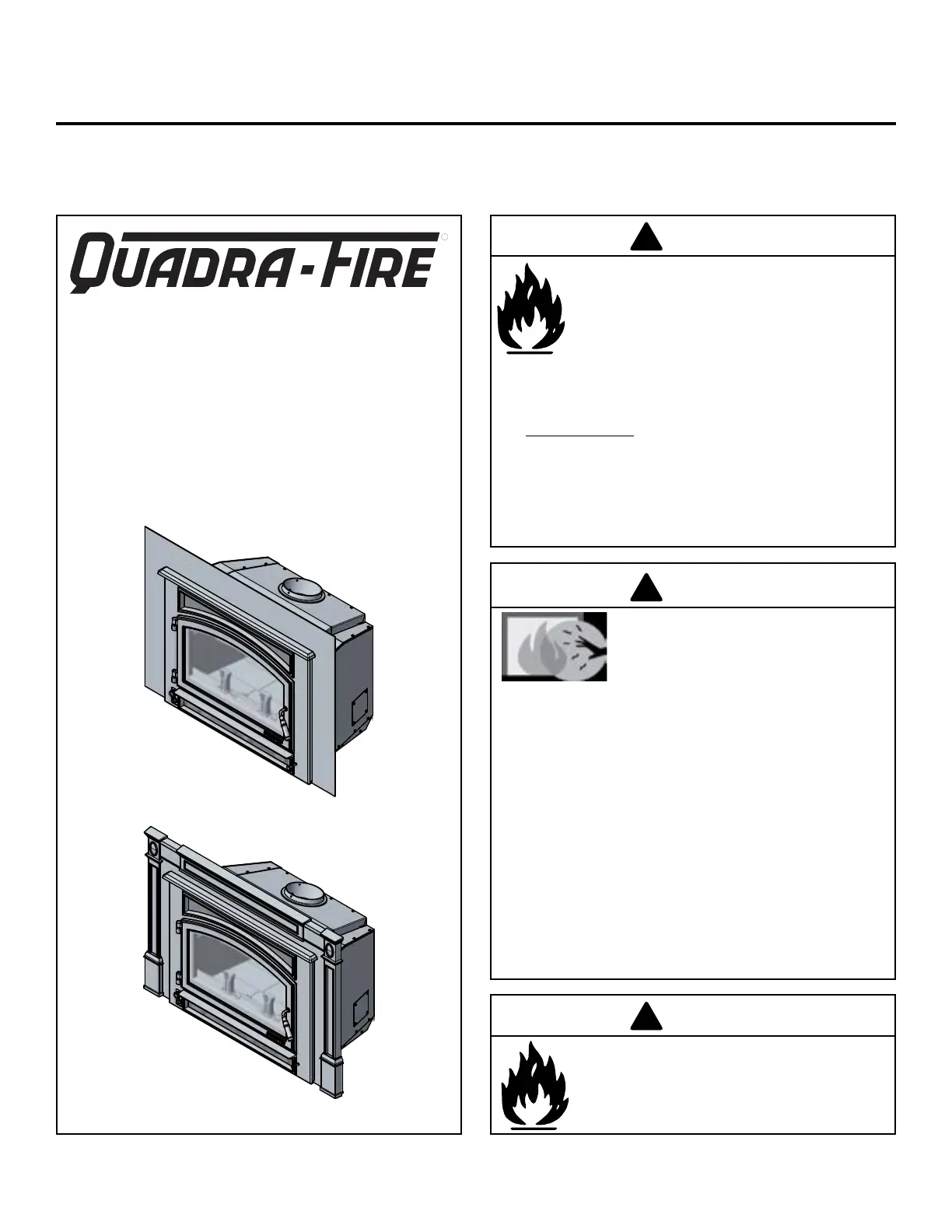

Quadrare • Expedition II AU Install Manual_Rev B • 2020 - ___ • 09/20
R
EXPEDITION II AUSTRALIAN
WOOD INSERT
AUTOMATIC COMBUSTION
CONTROL (ACC)
MODEL NUMBER:
EXPEDITIONII-AU
Installation Manual
Installation & Appliance Set-Up
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
NOTICE: DO NOT DISCARD THIS MANUAL
• Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any
other appliance.
• Do not over re - If appliance or chimney connector
glows, you are over îš¿ring. Over îš¿ring will void
your warranty.
• Comply with all minimum clearances to combustibles
as speciîš¿ed.
Failure to comply may cause house îš¿re.
If the information in these instructions is
not followed exactly, a îš¿re could result
causing property damage, personal injury,
or death.
WARNING
!
HOT SURFACES!
Glass and other surfaces are hot during
operation AND cool down.
Hot glass and appliance will cause burns.
• Do not touch glass until it is cooled
• Use leather gloves when reloading fuel
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room
as appliance.
• Alert children and adults to hazards of high
temperatures
• High temperatures may ignite clothing or other
ammable materials.
• Keep clothing, furniture, draperies and other
ammable materials away.
WARNING
!
Fire Risk.
For use with solid wood fuel only.
Other fuels may over îš¿re and generate
poisonous gases (i.e. carbon monoxide).
WARNING
!
7095-818
2
Quadrare • Expedition II AU Install Manual_Rev B • 2020 - ___ • 09/20
1 Important Safety Information
A. Insert Certiîš¿cation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
B. BTU & E󰀩ciency Specications .................. 3
C. Glass Speciîš¿cations. . . . . . . . . . . . . . . . . . . . . . . . . . . 3
D. Non-Combustible Materials . . . . . . . . . . . . . . . . . . . . . 3
E. Combustible Materials . . . . . . . . . . . . . . . . . . . . . . . . . 3
2 Getting Started
A. Design and Installation Considerations 4 . . . . . . . . . . . .
B. Fire Safety 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
C. Negative Pressure 5. . . . . . . . . . . . . . . . . . . . . . . . . . . .
D. Tools And Supplies Needed 5. . . . . . . . . . . . . . . . . . . . .
E. Inspection of Appliance and Components .......... 5
F. Install Checklist 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 Dimensions and Clearances
A. Appliance Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 7
B. Clearances to Combustibles . . . . . . . . . . . . . . . . . . . . 9
4 Chimney Systems
A. Locating Your Appliance & Chimney ............. 12
B. Minimum Height of Flue System Exit ............. 13
C. Chimney Termination Requirements ............. 13
D. Venting Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
E. Inspections 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
F. Larger Chimneys ............................ 14
G. Masonry Chimney . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
H. Install into a Masonry Fireplace ................. 16
I. Install Into a Factory Built Fireplace 16 . . . . . . . . . . . . . .
J. Securing Chimney Components................. 16
K. Altering the Fireplace 16. . . . . . . . . . . . . . . . . . . . . . . . .
L. Zero-Clearance Fireplace 17. . . . . . . . . . . . . . . . . . . . . .
M. Ovalizing Round Stainless Steel Liners........... 17
N. Chimney Height / Rise and Run................. 17
5 Appliance Set-Up
A. Outside Air Kit ..............................18
B. Stove Pipe or Liner to Flue Collar 19 . . . . . . . . . . . . . . .
C. Optional O󰀨set Adapter . . . . . . . . . . . . . . . . . . . . . . . 19
D. Power Cord 19 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
E. Appliance to Stove Pipe or Liner 19 . . . . . . . . . . . . . . . .
F. Flat Surround 20 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
G. Flat Surround with Trim Kit . . . . . . . . . . . . . . . . . . . . 21
H. Standard Surround & Cast Trim Kit . . . . . . . . . . . . . . 22
6 Reference Materials
A. Service and Maintenance Log . . . . . . . . . . . . . . . . . . 23
B. Service Parts List 25. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quadra-Fire is a registered trademark of Hearth & Home Technologies.
TABLE OF CONTENTS
Safety Alert Key:
• DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury.
• WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury.
• CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
• NOTICE: Indicates practices which may cause damage to the appliance or to property.
!
 = Contains updated information

7095-818
3
Quadrare • Expedition II AU Install Manual_Rev B • 2020 - ___ • 09/20
Model: EXPEDITIONII-AU
Laboratory: ASFT
Report No: ASFT20046
Type: Hardwood only at 25% dry basis
Standard: AS/NZS4013 for Hardwood
The Quadra-Fire Expedition II Australian Wood Insert is Hardwood Certiîš¿ed. Hardwood Particulate Emissions equaling 1.3
g/kg with a Space Heating E󰀩ciency of 61%.
This wood appliance needs periodic inspection and repair for proper operation. It is against federal regulations to operate
this wood appliance in a manner inconsistent with operating instructions in this manual.
Overall Average E󰀩ciency
Burning Hardwood (AS/NZS 4014) 61%
Average Particulate Emission
Factor Burning Hardwood (AS/
NZS 4014)
1.3 g/kg
Maximum Average Heat Output
Burning Hardwood 8.5 kW
Wetback
Wetbacks are
NOT an approved
option and must
not be îš¿tted.
Vent Size: 6 inches
Firebox Size: 56.65 Litres
Recommended Wood Length: 457 mm
Fuel Orientation: Side to Side
Approved Fuel
Hardwood only
with a Moisture
content less than
25% (dry basis)
A. Insert Certiîš¿cation
B. BTU & E󰀩ciency Specications
C. Glass Speciîš¿cations
This appliance is equipped with 5mm ceramic glass.
Replace glass only with 5mm ceramic glass. Please contact
your dealer for replacement glass.
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage.
For assistance or additional information, consult a qualiîš¿ed
installer, service agency or your dealer.
D. Non-Combustible Materials
Material which will not ignite and burn, composed of any
combination of the following:
- Steel
- Plaster
- Brick
- Iron
- Concrete
- Tile
- Glass
- Slate
E. Combustible Materials
Material made of/or surfaced with any of the following
materials:
- Wood
- Compressed Paper
- Plant Fibers
- Plastic
- Plywood/OSB
- Sheet Rock (drywall)
Any material that can ignite and burn: ame proofed or not,
plastered or non-plastered.
1
1
1
1 1
Important Safety Information
Hearth & Home Technologies WILL NOT warranty
appliances that exhibit evidence of over îš¿ring. Evidence
of over îš¿ring includes, but is not limited to:
• Warped air tube
• Deteriorated refractory brick retainers
• Deteriorated ba󰀪e and other interior components
NOTE: Hearth & Home Technologies, manufacturer of this appliance, reserves the right to alter its products, their
speciîš¿cations and/or price without notice.
