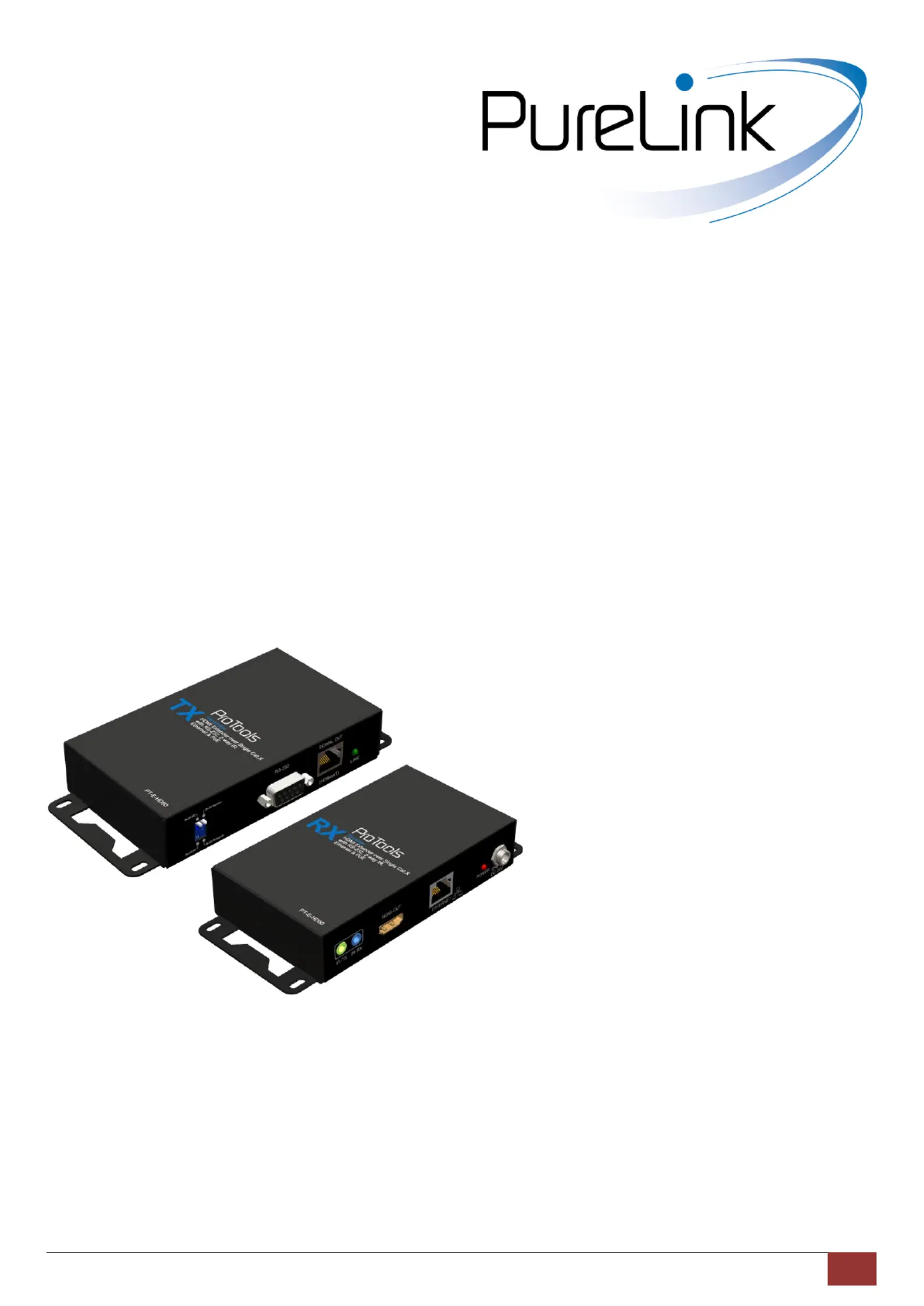

HDMI Extender over Single Cat.X with - RS 232,
2-way IR, Ethernet & PoE
User’s Guide
Model no.
PT-E-HD50
Designed in Germany
Made in Taiwan
© 20 PureLink GmbH. All rights reserved. 10
www.purelink.de
2
Table of Contents
Secon 1: Geng Started .................................................................................................. 3
1.1 Safety and Noce .................................................................................................. 3
1.2 Introducon .......................................................................................................... 3
1.3 Package Contents .................................................................................................. 4
1.4 Panel Descriptions ................................................................................................. 4
1.5 Installaon ............................................................................................................ 6
Secon 2: Specicaons 7....................................................................................................
Secon 3 Noce : ................................................................................................................ 8
Secon 4: Performance Guide 8...........................................................................................
www.purelink.de
3
Secon 1: Geng Started
1.1 Safety and Noce
Please read all of these instrucons carefully before you use the device. Save this manual for future
reference.
The PT-E-HD50 HDMI Extender over Single Cat.X with RS-232,2-way IR, Ethernet & PoE has been tested for
conformance to safety regulaons and requirements, and has been cered for internaonal use. However, like all
electronic equipments, the should be used with care. Please read and follow the safety instrucons to PT-E-HD50
protect yourself from possible injury and to minimize the risk of damage to the unit.
 Follow all instrucons and warnings marked on this unit.
ï‚· Do not aî‡ empt to service this unit yourself, except where explained in this manual.
 Provide proper venlaon and air circulaon and do not use near water.
ï‚· Keep objects that might damage the device and assure that the placement of this unit is on a stable
surface.
 Use only the power adapter and power cords and connecon cables designed for this unit.
ï‚· Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before
cleaning.
1.2 Introducon
The boosts up PT-E-HD50 HDMI Extender over Single Cat.X with RS-232,2-way IR, Ethernet & PoE
your video/audio transmission distance up to m () in HDTV 1080p with 48-bit color depth. -E-HD50 also PT
supports the most advanced 3D video format complaint with HDMI specicaon and therefore guarantees
the highest 3D video compability on the market. With only one cost eecve Cat.5/5e/6 cable, users can
readily extend HDTV sources from DVD players, Blu-ray Disc player, PS3, PC, and any other kinds of sources
compliant with TMDS to distant display monitors including HDMI or DVI enabled TV sets or LCD PC
monitors. With the advanced design for the latest HDMI technology, deep color video, DTS-HD or Dolby
TrueHD audio, and HDCP supports and compability are all further insured. This exibility makes HDCP
compliant DVD players or PS3 transmit utmost high quality video and audio with a greater distance at the
minimal cost, when integrang several components apart. In addion, -E-HD50 is also equipped with PT
bi-direconal IR pass-through path and RS-232 serial port control. These bonus features allow users to
boost IR control distance up to 100m (330 ) and makes IR control possible through only single Cat.5/5e/6
cable including HDMI signals. In addion, serial port oers the convenient path for interacve applicaon,
such as touch panel In addion, -E-HD50 also supports POE (Power over Cable) which can power both s. PT
units from TX or RX with power supply.
The -E-HD50 includes two units: transming unit -E-HD50-TX and receiving unit -E-HD50-RX. PT PT PT
The transming unit is used to capture the input HDMI / DVI signals with IR control packets and carry the
signals via one cost eî…°ective Cat.5/5e/6 cable. The receiving unit is responsible for equalizing the
transmiî‡ ed HDMI signal and reconstrucng IR and serial control signals. -E-HD50 oî…°ers the most PT
convenient soluon for digital signage with long distance A/V transmission path, and with 10G
transmission width ready, -E-HD50 is ready for your next HDMI generaon and applicaons! PT
Support HDMI Deep Color, full 3D & 4K2K@30 (HDBaseT technology)
Extend the transmission up to 100m (330) from the HDMI source at Full HD 1080p 48-bit
