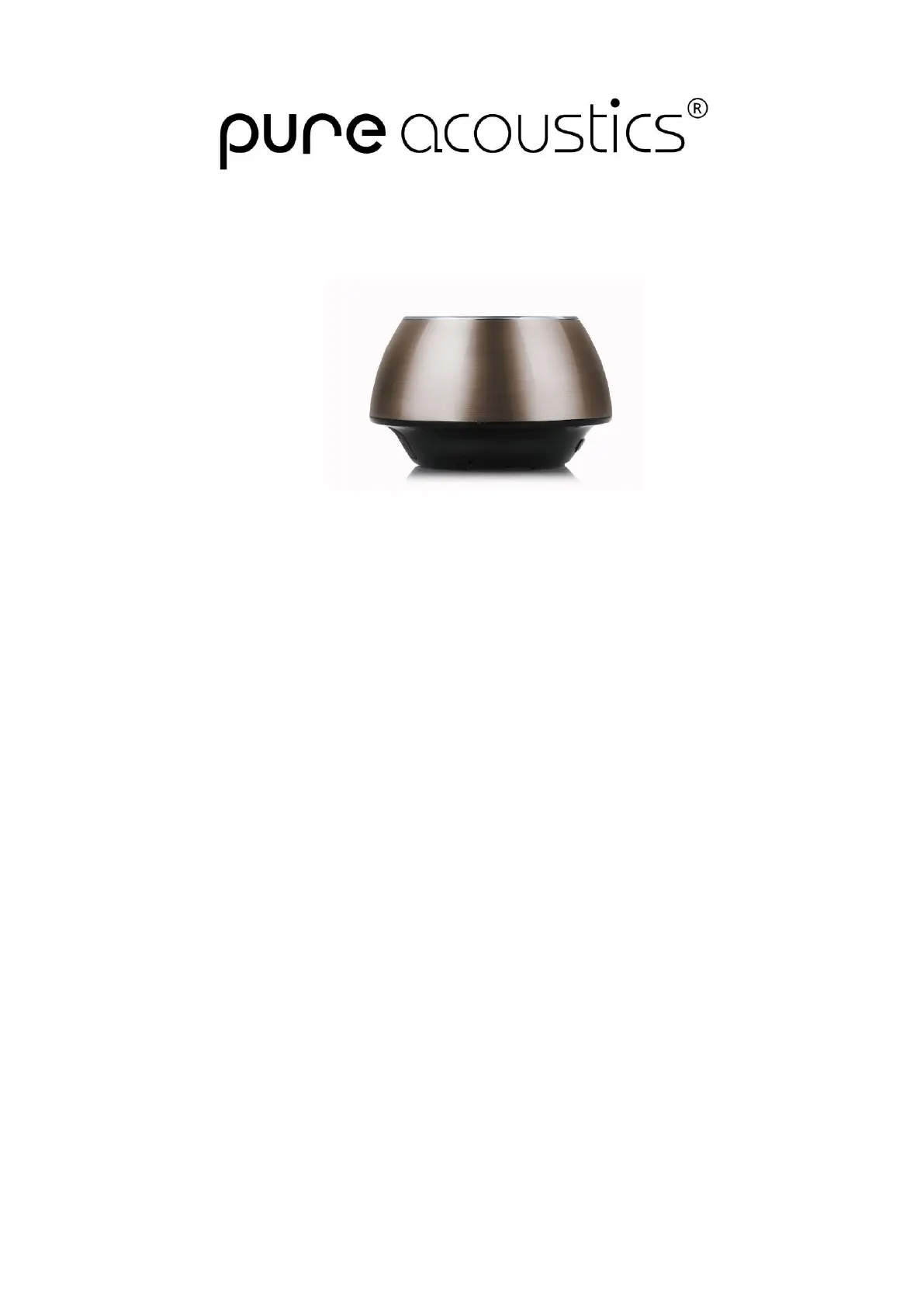

Seite 1/4
User’s Manual for QBT- 220
Preface
Distinguished customer,
Thanks for choosing the Pure Acoustics QBT-220 Wireless Bluetooth Speaker. Before use, it will be rather helpful to read this
manual carefully so that you can use it in an appropriate way. With stylish outer appearance, compact structure, high fidelity
sound and multi-functionality, it has obtained patents concerning its outer appearance and adopted advanced electric and sound
technology in the industry, ultimately making itself the best choice to hook up with your devices such as tablet, cell phone and
digital music player etc. perfectly by presenting you exceptional stereo effect either you are at home, on vacation or at work..
I. Precautions
Please store and use this product at the ambient temperature;
Do not expose this product to the rain or damp surroundings;
Prevent this product from falling that could result in serious damage;
Do not dismantle, repair or modify this product on your own;
In order to avoid any risk, do not dispose this product inappropriately or toss it into the fire as there is a built-in lithium
battery inside.
II. Considerate Hints
1) Do not turn up the volume to a fair high level constantly as this could shorten the service life of this product or impair
your hearing.
2) When encountering any fault during operation, please cut off the power supply and disconnect the USB cable to prevent
further damage to the speaker or other components.
3) The Bluetooth transmission range or connectivity could be affected by low battery power. In that case, please recharge
immediately.
III. Outer Appearance and Function Buttons
1. / / : play/pause/ mode.
During music playing, press it to pause; if it’s paused, press it for playing; press it to change between, BLUETOOTH, AUX,
FM, USB modes; under FM mode, press it for a long time for channels searching press it to pause under AUX and -press ; re
to play; under BLUETOOTH mode, press it to answer the call when call comes, re-press to hang off
2. : press it for a long time for volume decrease during music playing; short time press for last song. Under BLUETOOTH,
it’s only for volume decrease
3. : press it for a long time for volume increase during music playing; short time press for next song; under BLUETOOTH,
it’s only for volume increase
IV. Features
1. FM radio: search channels automatically and can save the channels for future use
3. with built-in Li battery, can be powered by USB cable or DC 5V USB cable
4. with power failure recovery function automatically start from power off point when ：it’s powered again
5. 3.5mm Aux cable, easy to connect with computer/MP3/MP4/IPOD/IPHONE…
6. Connected with computer through USB, the priority mode is to play music from computer. Aux cable is not needed.
7. Play music through bluetooth connection
V. Product Parameters
Product Model：QBT-220
Bluetooth Specifications Bluetooth 3.0 ：
Transmission Distance：≤10M (depending on operation environment and devices to which it connects)
Impendence: 4Ω
Frequency Response: 90Hz-20KHz
Sensitivity: 80db±2db
Signal to Noise Ratio (SNR): ≥76dB
Output Power: 3W×1
Powered by Built-in Li battery/USB
Product size: φ62×76MM
VI. Power
Built-in Li battery/ USB/ USB DC5V
USB Charge
Port
A UX
Function
buttons
Power
Switch
VII. System Composition
1 Speaker 1set ）
2 3.5 Audio Cable 1piece ）
3 USB Cable 1piece ）
4 User's Manual 1copy ）
VIII. Function Introduction
1) A mode UX
Connect the speaker with audio device like computer/MP3/MP4/IPOD/IPHONE, press for 3 seconds to decrease
volume, for volume increase. Under A mode, press for pause or playing UX
2) FM mode
Plug in AUX cable as signal antenna under FM mode. Press “Play/Pause” button for 3 seconds to search, save and delete
channels. Press for last channel, for next channel. Press r 3 seconds to increase volume, to fo
decrease volume.
3 BLUETOOTH mode )
Change the mode into BLUETOOTH, blue light of the speaker will keep glistering. Switch on other bluetooth device like
mobile, Laptop, etc to search for the speaker. When the speaker is found by the bluetooth device, match the 2 devices. If
they’re successfully matched, the speaker will beep. On the other hand, bluetooth device also displays information
concerning successful connection. As the speaker is able to memorize the last paired device, it will automatically pair up
with the device to which it connected successfully last time when turned on. If no bluetooth device is available after the
speaker is shifted to BLUETOOTH mode for 5 minutes, bluetooth function of the speaker will close. For 2nd connection,
please turn off the speaker, shift to BLUETOOTH mode and re-connect.
Remark: When connection fails, please double check if power is enough for the speaker; or turn off the speaker and switch
on for trying again.
4) Music playing under BLUETOOTH mode
During music playing under BLUETOOTH mode, press for a long time for volume decrease, for volume
increase.
Remark: When the speaker plays music through bluetooth connection, music choosing or pausing is done on bluetooth
device like mobile, Laptop. You can’t choose music or pause by the speaker.
5 Hands-free call answering ）
When the speaker is playing music from mobile through bluetooth, the speaker will beep if somebody calls your mobile.
Press on the speaker to answer the call with the speaker, repress to hand off. In bluetooth connection, press
twice, the speaker can dial the last cellphone Number you called.
6 Switch on the speaker, connected with computer through USB, the priority mode is to play music from computer directly. )
A cable is not needed. UX
7 Recharge )
