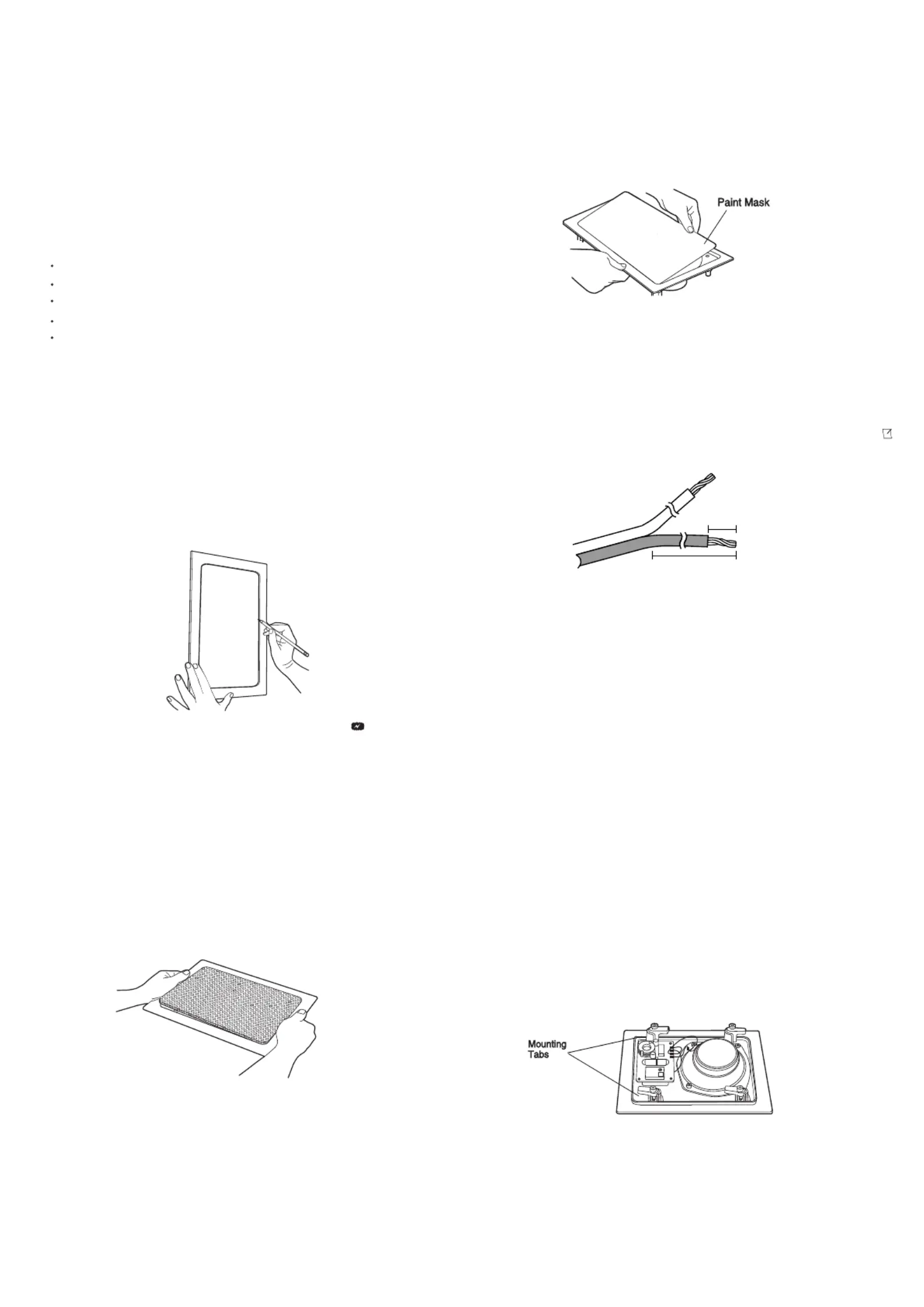

INSTALLATION
To mount your speaker, you need the following items (not
supplied,available following items (not supplied,available
at your local electronics store).
drywall or keyhole saw
wire stripper
Phillips screwdriver
pencil or marker
18-20 gauge speaker wire
1. Be sure the mounting surface is Between 3/8"
(9.5mm) and 1 1/4" (31mm) Thick, with at least
a 2 3/4" ( Mounting 69mm) clearance behind the
surface and no wall studs or other objects to
block the back of the speaker.
2. Remove the inner cardboard disc from the supplied
template/paint mask and keep it for later. Use the
outer portion as a template to mark the cutout hole
size and location for mounting the speaker.
Your local electronics store sells a wide selection of
speaker wire. We recommend you use wire that is
colo -coded or marked on one side to help you connect r
the wire orrectly c
If you choose to paint the frame and grille, paint them
and let them dry before you connect the speaker wire
or mount the speaker.
To remove the grille for painting, insert a paper clip into
one of the grille openings then pull up. Or, you can carefully
twist the plastic frame back and forth until the grille edge
becomes exposed, then lift the grille to remove it.or use
the grill remover to remove the grille.
You can also paint the frame to match your wall or ceiling.
To prevent paint from entering the speaker, remove the
grill and insert the supplied cardboard paint mask. After
2. Separate about 4"(101mm) of Speaker wire at each end.
3. Use a drywall or keyhole saw to cut the hole.
1. Route the speaker wire to the speaker from the receiver.
6mm (1/4")
101mm (4")
3. Using a wire stripper, remove about 1/4"(6mm) of
insulation from each wire. Then twist the ends of
each wire.
4. Connect the marked wire to a red Speaker terminal
by pressing the release tab, inserting the wire into the
hole, and then releasing the Tab. Repeat this procedure
to connect the unmarked wire to the balck terminal.
5. Connect the marked wire coming from the speaker to
the left channel of the receiver's positive (+) terminal.
Then connect the unmarked wire to the left Channel
of the amplifier's negative (-) terminal.
MOUNTING THE SPEAKER
MOUNTING THE SPEAKER
MOUNTING THE SPEAKER
MOUNTING THE SPEAKER
MOUNTING THE SPEAKER
1. Remove the grill to expose the mounting screws.
2. Be sure the mounting tabs are turned in, allowing
the speaker to fit into the hole. Then insert the
speaker into the mounting hole.
3. Use the four screws to tighten the mounting tabs
to the wall or ceiling. Be careful not to over tighten
the screws.
4. Replace the grille.
To remove the speaker from the wall or ceiling, loosen
the screws only far enough to remove the speaker. This
will prevent loss of the mounting tabs.
PREPARING THE LOCATION
PREPARING THE LOCATION
PREPARING THE LOCATION
PREPARING THE LOCATION
PREPARING THE LOCATION
PREPARING THE SPEAKER
PREPARING THE SPEAKER
PREPARING THE SPEAKER
PREPARING THE SPEAKER
PREPARING THE SPEAKER
Carefully remove the dust cloth from behind the grill and
replace it after you are finished painting.
the paint is dry, remove the paint mask and replace the grill.
CONNECTING THE SPEAKER WIRES
CONNECTING THE SPEAKER WIRES
CONNECTING THE SPEAKER WIRES
CONNECTING THE SPEAKER WIRES
CONNECTING THE SPEAKER WIRES
