IMPORTANT SAFETY NOTE:PROPER SELECTION OF MOUNTING
HARDWARE NOT INCLUDED HEREIN AND PROPER ASSEMBLY AND
INSTALLATION OF BRACKETS,INCLUDING BUT NOT LIMITED TO
SELECTION OF APPROPRIATE WEIGHT BEARING SUPPORT AND
BRACKET USE WITH THE SPECIFIED SPEAKER ONLY IS THE EXCLUSIVE
RESPONSIBILITY OF THE CUSTOMER MANUFACTURER DISCLAIMS ANY
LIABILITY FOR THE SELECTION OF MOUNTING HARDWARE AND OR
BRACKET INSTALLATION.
Bracket assembly and mounting:
Bracket
Bracket
Bracket
Bracket assembly
assembly
assembly
assembly and
and
and
and mounting:
mounting:
mounting:
mounting:

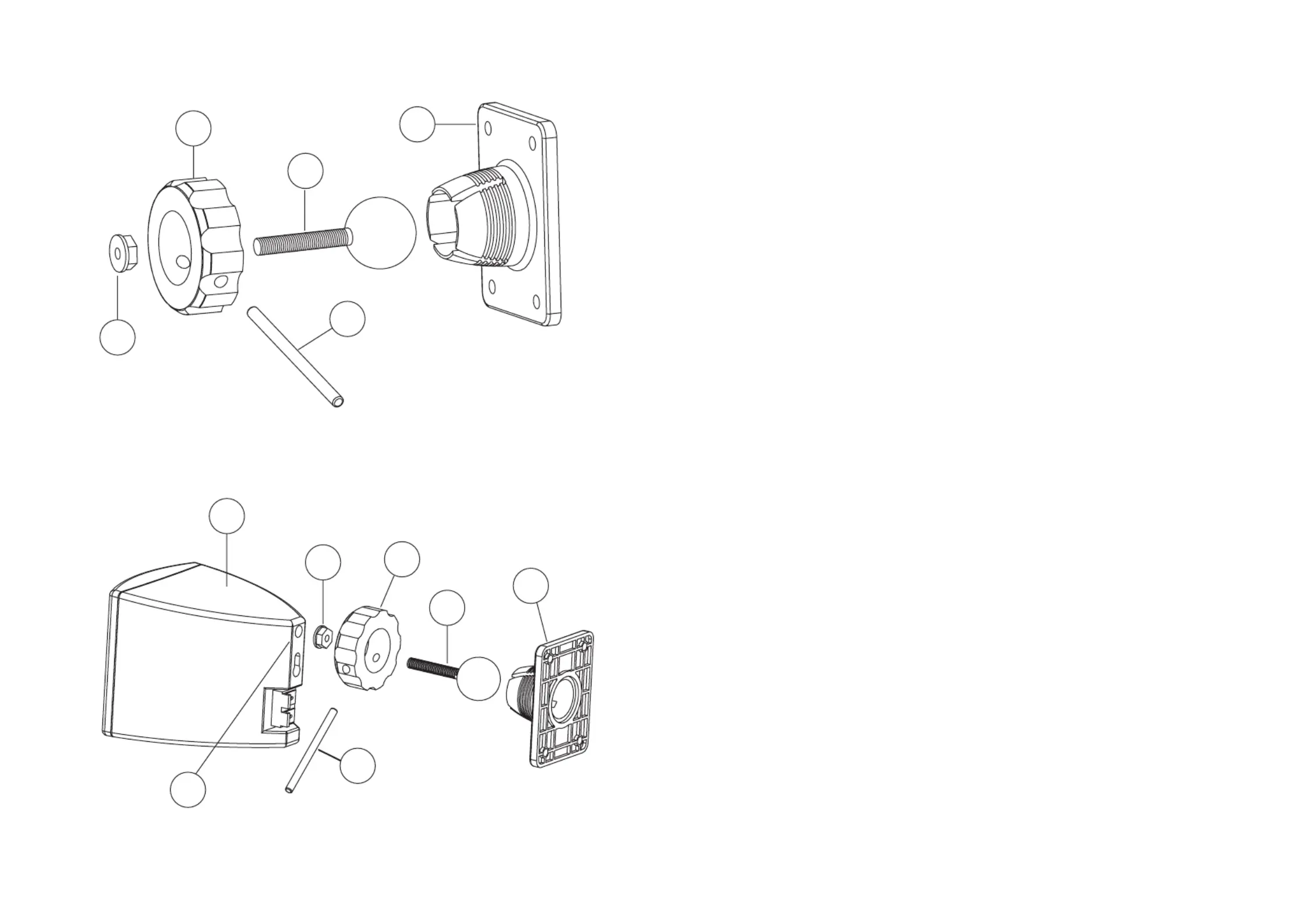

Loosen and remove the molded nut (2) by tuming it counter clockwise.Use
the supplied metal bar (5) if necessary by inserting it in one of the holes on
the molded nut (2).
a.
Pull the ball/shaft (3) out of the wall bracket (4).b.
Slide on the molded nut (2) onto the ball/shaft (3) with threaded opening
facing the ball,and thread on the metal nut (1) all the way onto the ball/shaft
(3),with the nut (1)’s knuned surface facing away from the ball.” ”
c.
Screw on the ball/shaft (3) into the threaded insert on the back of the speaker
cabinet (6) until it is fully seated aganst the bottom of the insert.
d.
Tighten the knurted nut (1) using a crescent wrench until it is firmly seated
against the back of the speaker and has fully locked the ball/shaft (3) and the
speaker cabinet together.Please note that once this nut is tightened,it may
embed some marks on the back of the speaker where the attachment is
made.However these marks will be covered by the nut (1).
” ”
e.
Mount the wall bracket (4) onto a wood stud on the wall,using#10,minimum
1 inch long,wood screws.Make sure that all 4 screws are driven into the stud
and not in drywall if the bracket needs to be mounted on drywall,the use of
properly selected and installed wall-anchors and screws is essential.
f.
Holding the speaker cabinet (7) with both hands,reinsert the ball portion of
the ball/shaft (3) into the wall bracket (4).
g.
Hand tighten the molded nut (2) while positioning the speaker for the intended
orientation. Please do NOT tighten the molded nut (2) too hard to avoid
damaging the bracket.
h.
Once the orientation of the speaker is finalized,use the metal bar (5) in one
of the holes on the molded nut (2) and tighten securely . Please do NOT
press hard and strike the speaker when it is finalized.
i.
12
34
5
6
7
1
2
3
4
5
