OWNERāS MANUAL
S10 / S8
Powered Subwoofers

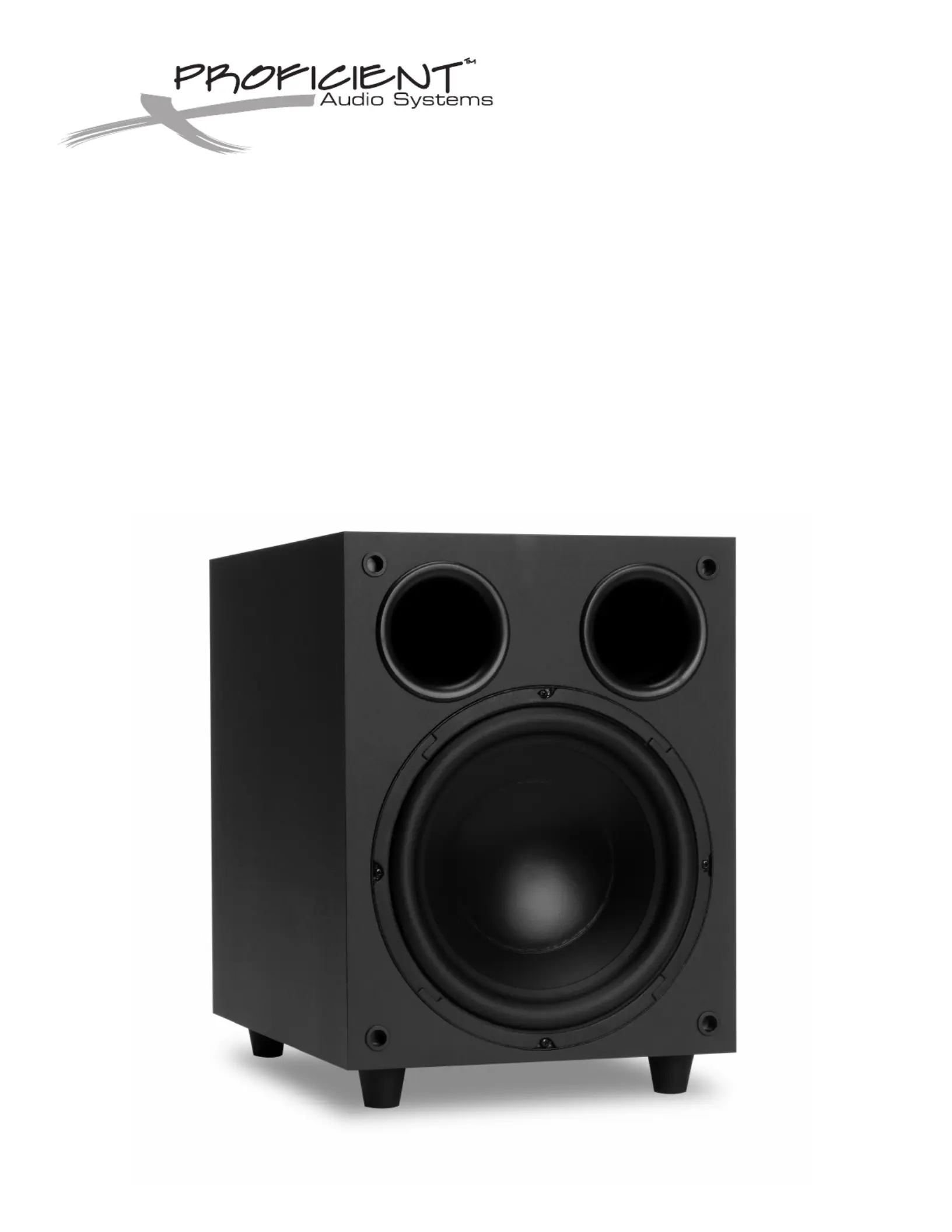

Proļ¬cientās S10 and S8 Powered Subwoofers provide accurate bass to any audio system, and are designed to work in conjunction with your other
audio components. The S10 / S8 can be connected to any surround sound receiver that has a subwoofer output, any receiver that has a built-in
preampliļ¬er, or any receiver that has speaker level outputs.
INTRODUCTION
For optimal performance, the S10 / S8 should be placed in a corner along the same wall as the front speakers. The units are not shielded, so do not
place them too close to video devices. When choosing a place for the S10 / S8, please keep the following in mind:
DO
ā¢ Place the S10 / S8 with its feet resting on a solid ļ¬at level surface.
ā¢ Place the S10 / S8 in a well-vented area to provide proper cooling. In areas that lack proper ventilation, such as tight cabinets or racks, it may
be necessary to install small fans to create air movement.
DONāT
ā¢ Obstruct the driver or ports of the S10 / S8 as that will hinder performance.
ā¢ Place the S10 / S8 in any position other than horizontal with the feet down. Never place on its side or resting on the back where the terminals are located.
ā¢ Place the S10 / S8 near heat sources, or in an area that it would be exposed to moisture.
PLACEMENT
2
SAFETY INSTRUCTIONS
ā¢ Explanation of Graphical Symbols
1. Read Instructions: All the safety and operating instructions should be read
before the appliance is operated.
2. Retain Instructions: The safety and operating instructions should be retained for
future reference.
3. Heed Warnings: All warnings on the appliance and in the operating instructions
should be adhered to.
4. Follow Instructions: All operating and other instructions should be followed.
5. Water and Moisture: The appliance should not be used near water - for example,
near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a
swimming pool, etc.
6. Carts and Stands: The appliance should be used only with a cart or stand that is
recommended by the manufacturer.
PORTABLE CART
WARNING
7. Wall or Ceiling Mounting: The appliance should be mounted to a wall or ceiling
only as recommended by the manufacturer.
8. Ventilation: The appliance should be situated so that its location or position does
not interfere with its proper ventilation. For example, the appliance should not be sit-
uated on a bed, sofa, rug, or similar surface that may block the ventilation openings;
or placed in a built-in installation, such as a bookcase or cabinet that may impede
the ļ¬ow of air through the ventilation openings.
9. Heat: The appliance should be situated away from heat sources such as radiators,
stoves, or other appliances that produce heat.
10. Power Source: The appliance should be connected to a power supply only of
the type described in the operating instructions or as marked on the appliance.
11. Power-Cord Protection: Power-supply cords should be routed so that they are
not likely to be walked on or pinched by items placed upon or against them,
paying particular attention to cords at plugs, convenience receptacles, and the
point where they exit from the appliance.
12. Cleaning: The appliance should be cleaned only as recommended by the
manufacturer.
13. Nonuse Periods: The power cord of the appliance should be unplugged from
the outlet when left unused for a long period of time.
14. Object and Liquid Entry: Care should be taken so that objects do not fall into
and liquids not spilled into the inside of the appliance.
15. Damage Requiring Service: The appliance should be serviced by qualiļ¬ed ser-
vice personnel when:
a. The power-supply cord or the plug has been damaged; or
b. Objects have fallen onto, or liquid has been spilled into the appliance; or
c. The appliance has been exposed to rain; or
d. The appliance does not appear to operate normally or exhibits a marked
change in performance; or
e. The appliance has been dropped, or the cabinet damaged.
16. Servicing: The user should not attempt to service the appliance beyond those
means described in the operating instructions. All other servicing should be
referred to qualiļ¬ed service personnel.
17. Grounding or Polarization: The precautions that should be taken so that the
grounding or polarization means of an appliance is not defeated.
The lightning ļ¬ash with arrowhead symbol, within
an equilateral triangle, is intended to alert you to
the presence of uninsulated ādangerous voltageā
within the productās enclosure that may be of
sufļ¬cient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral tri-
angle is intended to alert you to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
appliance.
APPLICABLE FOR USA, CANADA OR WHERE
APPROVED FOR USAGE
CAUTION: TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE PLUG TO WIDE SLOT,
INSERT FULLY.
ATTENTION: POUR EVITER LES CHOCS
ELECTRIQUES, INTRODUIRE LA LAME
LA PLUS LARGE DE LA FICHE DANS LA
BORNE CORRESPONDANTE DE LA PRISE ET
POUSSER JUSQU AU FOND.
CAUTION: To reduce the risk of electric
shock, do not remove cover (or back).
No user-serviceable parts inside. Refer
servicing to qualiļ¬ed service personnel.
3
Voltage Selector (See Figure 1)
For use in the U.S., the S10 / S8 comes preset from the factory at 115V. For use in other countries,
the voltage may be set at 230V. (Please note that an outlet adapter or alternate power cord may be
required.)
Connecting the Line Level Audio Inputs (See Figure 2)
If your surround sound receiver or ampliļ¬er has only one subwoofer output, simply plug it into the
Left Line Input. If your receiver or ampliļ¬er has a built-in preampliļ¬er, the left and right pre-outputs
can be connected to the Left and Right Line Inputs. CAUTION: Only make connections when the
S10 / S8 is turned off.
Connecting the Speaker Wires (See Figure 2)
Follow these instructions when using the Speaker Level Outputs of your receiver or ampliļ¬er to
connect to the S10 / S8.
For best results, use speaker wire that is at least 18 gauge. For runs longer than 75 feet, 14 gauge
wire is recommended.
Wire larger than 14 gauge is not recommended because it may not ļ¬t into the connector. For best
results, strip all wire insulation no more than
3
ā8" from the end before inserting into the connector.
1. Strip the speaker wiresā insulation
3
ā8" from the end.
2. Connect the wires from the speakers to the appropriate location above āTo Speakersā. Please
observe proper polarity of the connections (+ to + and ā to ā).
3. Connect the ampliļ¬erās or receiver's speaker outputs to the appropriate location above āFrom
Receiverā. Please observe proper polarity of the connections (+ to + and ā to ā).
CAUTION: If the āTo Speakersā and āFrom Receiverā connections are reversed, a short could result
across the ampliļ¬er or receiver output terminals, which may seriously damage your ampliļ¬er or
receiver. Please double-check all connections before turning on your ampliļ¬er or receiver.
INSTALLATION
Once the S10 / S8 is connected, use the controls described below to make adjustments so that it
will blend seamlessly with the other speakers in your system.
Power Switch (See Figure 3)
This switch sets the power mode of the S10 / S8. Select āOnā or āOffā to turn the system on or off.
Selecting āAutoā will automatically turn the S10 / S8 on when it receives an audio signal from your
system, and will automatically turn off when it stops receiving the audio signal.
Crossover Knob (See Figure 3)
Use this control to adjust the upper frequency limit of the S10 / S8. The purpose is to control the
overlap the upper frequencies of the S10 / S8 and the main speakerās lower frequencies.
Volume (S10) / Level (S8) Knob (See Figure 3)
Use this control to match the output of the S10 / S8 to that of the main speakers in the system. We
recommend that you play a variety of material before selecting a setting. Start with the control in
the āMinā position (completely counterclockwise) and slowly turn it up.
OPERATION
The S10 / S8 Powered Subwoofer is designed to function trouble-free. Most problems occur due to operating errors. If you have a problem, please
check the troubleshooting list ļ¬rst. If the problem persists, contact your authorized Proļ¬cient dealer or Proļ¬cient Customer Service at 800.448.0976
TROUBLESHOOTING
A hum or buzzing sound is heard. The sound may be caused by a ground loop in the system. Try to eliminate
this by reversing the AC plugs of other components in the system.
Try plugging the receiver into another outlet.
Other causes may include faulty cables.
The S10 / S8 will not turn on. The subwoofer must be plugged into a live outlet. The power switch on
the back panel must be on. A signal must be playing into the input jacks.
No sound is heard. Audio cable to the receiver is not connected properly or the cable is bad.
Use another cable that you know is good.
Check all wire connections and plugs.
Problem Possible Causes & Solutions
Figure 2:
Speaker Level Inputs/Outputs
Line Level Inputs
Figure 1:
Voltage Selector
Figure 3:
Volume / Level Knob
Crossover Knob
Power Switch
