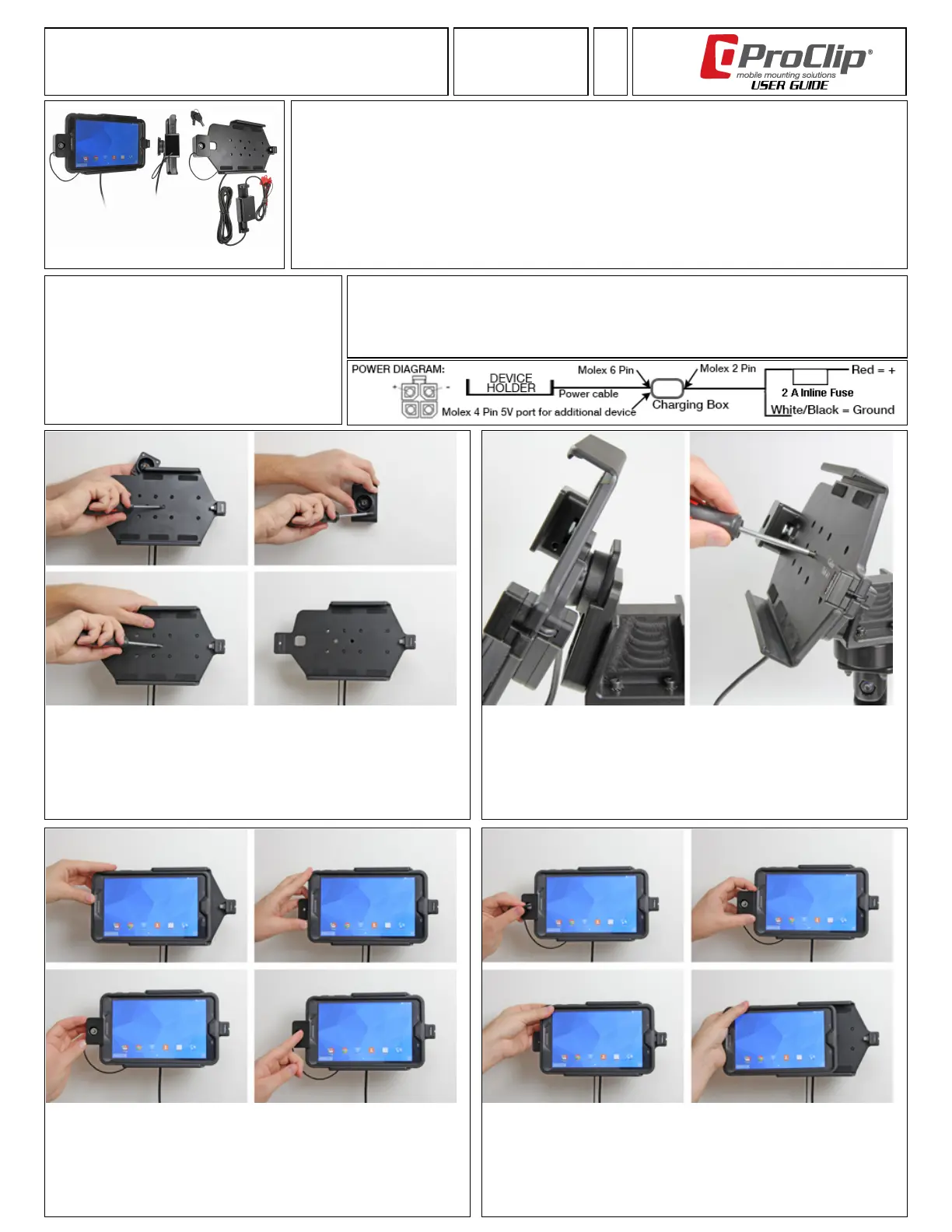

Item No. 247073 - Key Lock Charging Holder for

Hard Wired Installation

Compatible with:

Samsung Galaxy Tab 4 8.0 w/ Otterbox Defender

Important:

Self-installation instructions and advice are provided for your

convenience. It is your responsibility to determine if you have the

knowledge, skills, and physical ability required to properly perform an

installation. ProClip USA, LLC. shall have no liability for damage or

injury resulting from the installation or use of any ProClip or third

party products. It is your responsibility to ensure that all products are

installed in adherence with local laws and regulations and in such a

manner as to allow a vehicle to be operated safely and without

distraction. ProClip USA, LLC. product warranties do not cover the

installation, removal or re-installation of any product.

Power Rating: Input Voltage: 10-30 VDC, 1.1A / Output Voltage: 5 VDC, 2A.

Wiring: Follow the diagram below. Route the wire from the holder behind the dashboard and connect it to a

power source; White or Black to ground or the vehicle chassis, and Red via the 2A in-line fuse to a positive power

source. Professional installation is recommended.

Attention: Carefully read all instructions and review the images before installing this product.

1. To attach the holder to a mount:

Unscrew the screw in the center of the holder so you can remove the tilt swivel

base plate on the back. Place the base plate over the matching holes in the

face plate of your mounting bracket. Attach the base plate by using the

applicable screws enclosed - self-tapping screws if the mount has small holes

or machine screws with nuts if the mount has larger holes.

Place the holder onto the base plate and attach it with the center screw. Adjust

the holder to the preferred position and tighten the screw rmly.

3. To insert the tablet into the holder:

Slide the tablet carefully into the holder. Then slide the lock block onto the left

part of the holder. Push on the center tab in the lock until you hear it click into

place and lock. The holder and tablet is in place. If you want to rotate the tabletNote:

between portrait and landscape view, or angle it for a better view, then loosen

the center screw in the holder slightly.

2. To attach the holder to a Locking Move Clip (quick release plate):

Slide the tilt swivel base plate on back of the holder into the clip. Push until it clicks

into place. Adjust the holder to the preferred position and tighten the center screw

rmly to keep the holder in its position. Then, if you want easier angling or rotation of

the holder between landscape and portrait position, loosen the screw slightly.

To remove the holder from the Locking Move Clip:

Press on the release tab and pull the holder out of the clip.

4. To remove the tablet from the holder:

Unlock the holder with the enclosed key and pull the lock block away from the holder.

Then slide the tablet carefully out of the holder.

For wiring and connecting to a power source, please follow the diagram further up on

this page.

Returns

All returns must be made within thirty (30) days of the delivery date and include proof of purchase, a copy of your original order, or invoice. No products shipped hereunder may be returned without ProClip

USA's prior approval. In order to return a product, the buyer must obtain an RMA number (Return Merchandise Authorization Number). Items returned without a valid RMA number may be rejected. Items

that are open, used, damaged, or returned without all original components may have a restocking fee applied.

Limited Warranty and Liabilities

ProClip warrants that the Products will be free of defects in materials and workmanship for a period of one (1) year from the date of purchase. If any Product should become defective within the warranty

period, ProClip, at its option, will replace it, repair it or refund the purchase price. Repair or replacement parts or Products will be furnished on an exchange basis and will either be new or reconditioned. All

replaced Products shall become the property of ProClip. Warranty service is available to you by delivering the Product during the warranty period to the company it was purchased from or to ProClip at 4915

Voges Rd., Madison, WI 53718 USA and providing proof of purchase, price and date. If shipped to ProClip, the buyer must rst call ProClip at +1 800-296-3212 or e-mail ProClip at returns@proclipusa.com to

obtain a return approval and return number. You will bear all shipping, packaging and insurance costs and all other costs, excluding labor and parts, necessary to eectuate repair, replacement or refund

under this warranty. For more information on how to obtain warranty service, write, e-mail or telephone ProClip at 4915 Voges Rd., Madison, WI 53718 USA.Tel: +1 800-296-3212, e-mail:

returns@proclipusa.com.

THIS LIMITED WARRANTY DOES NOT EXTEND TO ANY PRODUCT WHICH HAS BEEN DAMAGED AS A RESULT OF ACCIDENT, MISUSE, ABUSE OR AS A RESULT OF UNAUTHORIZED SERVICE.

THIS WARRANTY IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES FOR THIS PRODUCT. IMPLIED WARRANTIES, INCLUDING THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR

PURPOSE AND NON-INFRINGEMENT SHALL HAVE NO GREATER DURATION THAN 1 YEAR FROM THE DATE OF PURCHASE. IN THE EVENT THIS PRODUCT BECOMES DEFECTIVE DURING

THE WARRANTY PERIOD, THE PURCHASER'S EXCLUSIVE REMEDY SHALL BE REPAIR, REPLACEMENT OR REFUND AS PROVIDED ABOVE. IN NO EVENT SHALL PROCLIP BE LIABLE FOR

INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING WITHOUT LIMITATION LOSS OF PROPERTY, ARISING FROM BREACH OF ANY EXPRESSED OR IMPLIED WARRANTY. PROCLIP

DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED, OTHER THAN THOSE SET FORTH ABOVE. IN NO EVENT WILL PROCLIP BE LIABLE TO YOU OR ANY THIRD PARTY FOR ANY

INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING, WITHOUT LIMITATION, INDIRECT, SPECIAL, PUNITIVE, OR EXEMPLARY DAMAGES, INCLUDING ATTORNEY FEES ARISING OUT OF

THE USE OF OR THE INABILITY TO USE THE PRODUCTS, OR FOR ANY CLAIM BY ANY OTHER PARTY, EVEN IF PROCLIP HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Regulatory information: www.proclipusa.com/regulatory.html

ProClip USA, LLC • 4915 Voges Road • Madison, WI 53718 • USA
