Tristand
• 3x M8 nuts �
Size without feet (W x D x H): 328 x 328 x 678 mm
Size with feet (W x D x H): 328 x 328 x 700 mm
Top plate surface (W x D): 150 x 142 mm
Weight per Tristand: 5 kg
Maximum load per Tristand: 20 kg
• 1x base plate�
• 2x steel pro les�
(marked no. 1) �• 2x steel pro les�
(marked no. 2) �
• 4x M4x14 allen screws�
• 1x 2,5mm allen key �
• 3x spike feet�
• 3x cups for spike feet�
• 1x top plate�
Before assembly please make sure all parts are included.

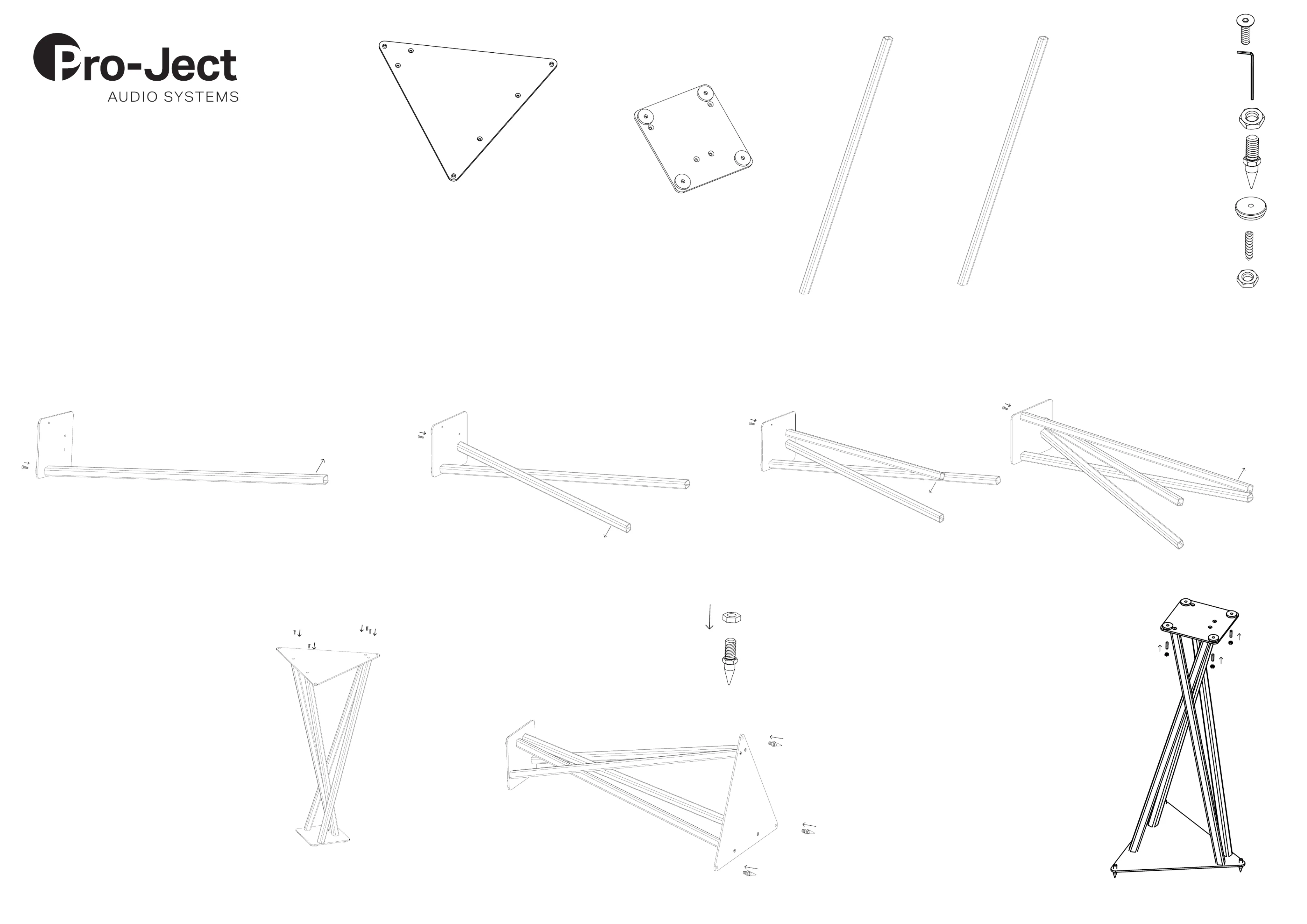

Step 1
As shown in the picture below, take the top
plate and one of the two steel pro les �
marked with no. 1 and attach them together.
Screw the top plate and steel pro le together �
(using a M4x14 screw and the included allen
key), but do not tighten the screw completely
yet.
Steel pro le points in that direction�
Step 2
Take another steel pro le now with mark no.2, �
and attach it in the opposite direction to the
previous one into the hole above the rst �
steel pro le (as shown in the picture below). �
Don't tighten the screws completely.
Steel pro le points in that direction�
Steel pro le points in that direction�
Step 3
Repeat step 2 with another steel pro le.�
Step 4
Repeat step 1 with another steel pro le �
marked no. 1 in the same direction as in step
1.
Steel pro le points in that direction�
Step 5
Take the base plate and put it on the steel
pro les from the other side. Align the threads �
with the holes in the base and screw them
together. At rst don't tighten the screws �
completely. Once you have all screws in the
threads, tighten them. Afterwards, also
tighten the screws on the top plate (steps 1 –
4).
Pro-Ject Audio Systems is a division of Audio Tuning Vertriebs GmbH Margaretenstrasse 98, A-1050 Vienna, Austria
Step 6
Screw the nuts onto the spike feet.
Then screw the feet into the base. Carefully
lift the assembled Tristand up, place it on the
ground and put the cups under the spike feet.
You can now tighten or loosen the spike feet
to ensure the base is level (use a spirit level if
necessary).
Step 7
Now you are ready to place the speaker on
the Tristand. You have two options on how to
do that.
1) Directly place the speaker onto the
microporous rubber pads on top plate.
2) Screw the M5x20 spikes into the threads
located in the middle of the microporous
rubber pads. Adjust the height until the
speaker has a proper stand and lock the
screw with a nut from the bottom.
• 4x M5x20 spikes �
• 4x M5 nuts �
