SWC resis ve interface
INSTALLATION MANUAL

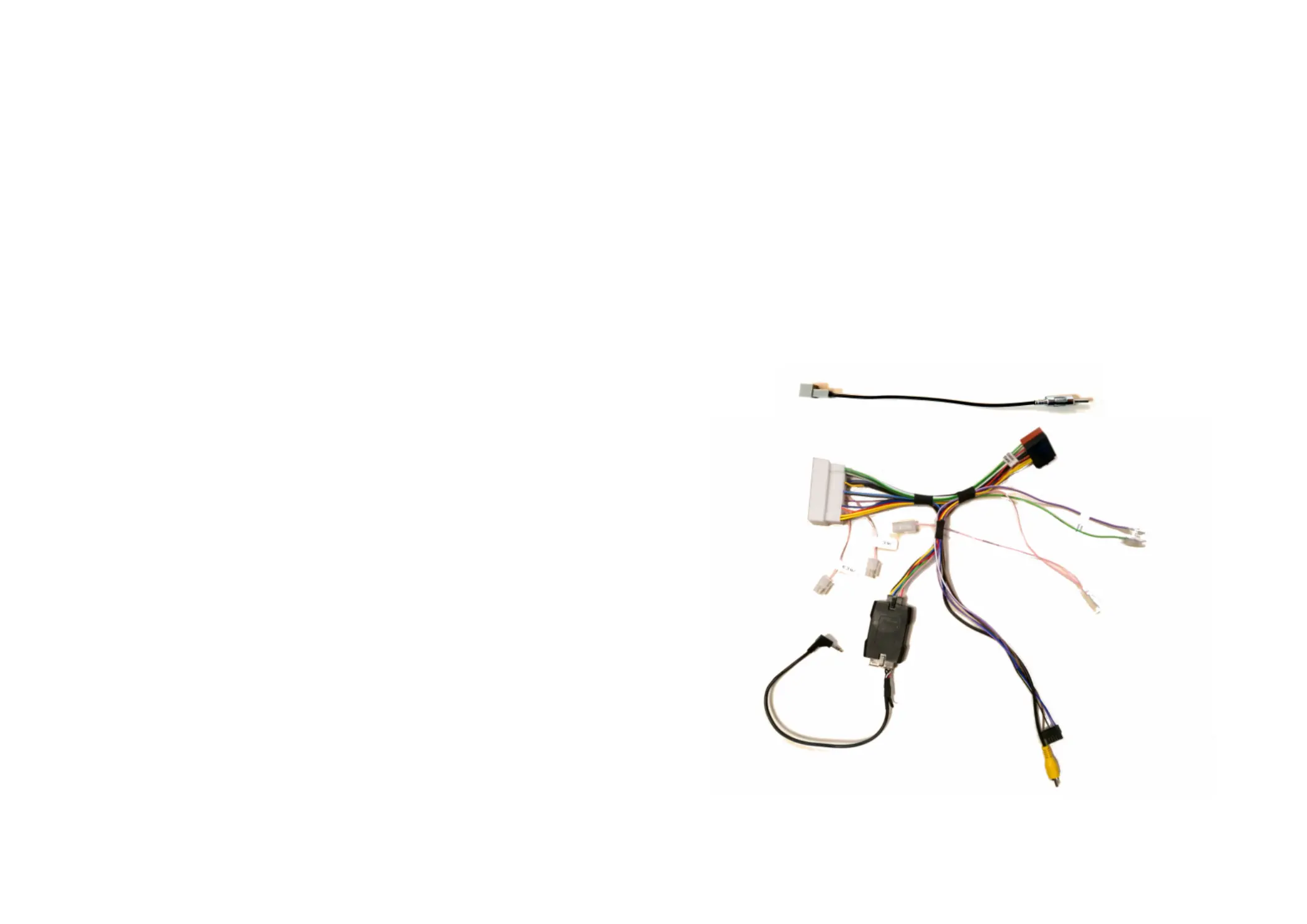

Kit content:
Customer code:
10/2017 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
wiring harness
All installa on work must be performed by a quali ed professional installer only.� fi
The manufacturer / dealer is not liable for any kind of incidental or indirect damages.
antenna adapter
HYUNDAI/KIA
Model:
Steering wheel control interface installa on kit for:
Hyundai i30 2017> with or without OE Navigaon + Rear Camera
Kia Rio 2017> with or without OE Navigaon + Rear Camera
Kia Picanto 2017> with or without OE Navigaon + Rear Camera
radio adapter
CA-R-KO.002
1- Voice
2- Volume +
3- Mute
4- Volume -
5- Accept incoming call
6- Reject incoming call
7- Seek down
8- Seek up
9- Source
In order to prevent ESD damage, the WHEEL REMOTE JACK must be
connected before plugging in the connectors on car side.
Connect cables to the radio side as follow:
1- to ISO CONNECTORS (black and red housings)
2- to WIRED REMOTE SOCKET (NOTE: do not connect to microphone socket)
3- to SERVICES (if required); func ons are marked on the wires:
Green - Parking;
Pink - Speed;
Violet - Reverse Signal;
4 - Choose and connect the right cable : "OE Navi" or "NO OE Navi" (func ons are
marked on the labels) as supported by the vehicle;
5- to RADIO ANTENNA-CONNECTOR
Connect cables to the car side as follow:
6- to CAR CONNECTOR
7- to be only used with CA-BC-6V.001 on vehicles with original rear-view
camera
8- to CAR ANTENNA-CONNECTOR
6
3
1
The steering wheel buons perform the following func ons
(if supported by the radio and vehicle):
cut along the do ed line - copy for the vehicle owner
ATTENTION!
1
2
2
4
5
8
6
3
7
9
4
4
CONNECT
2
*
*
1
7
8
5
