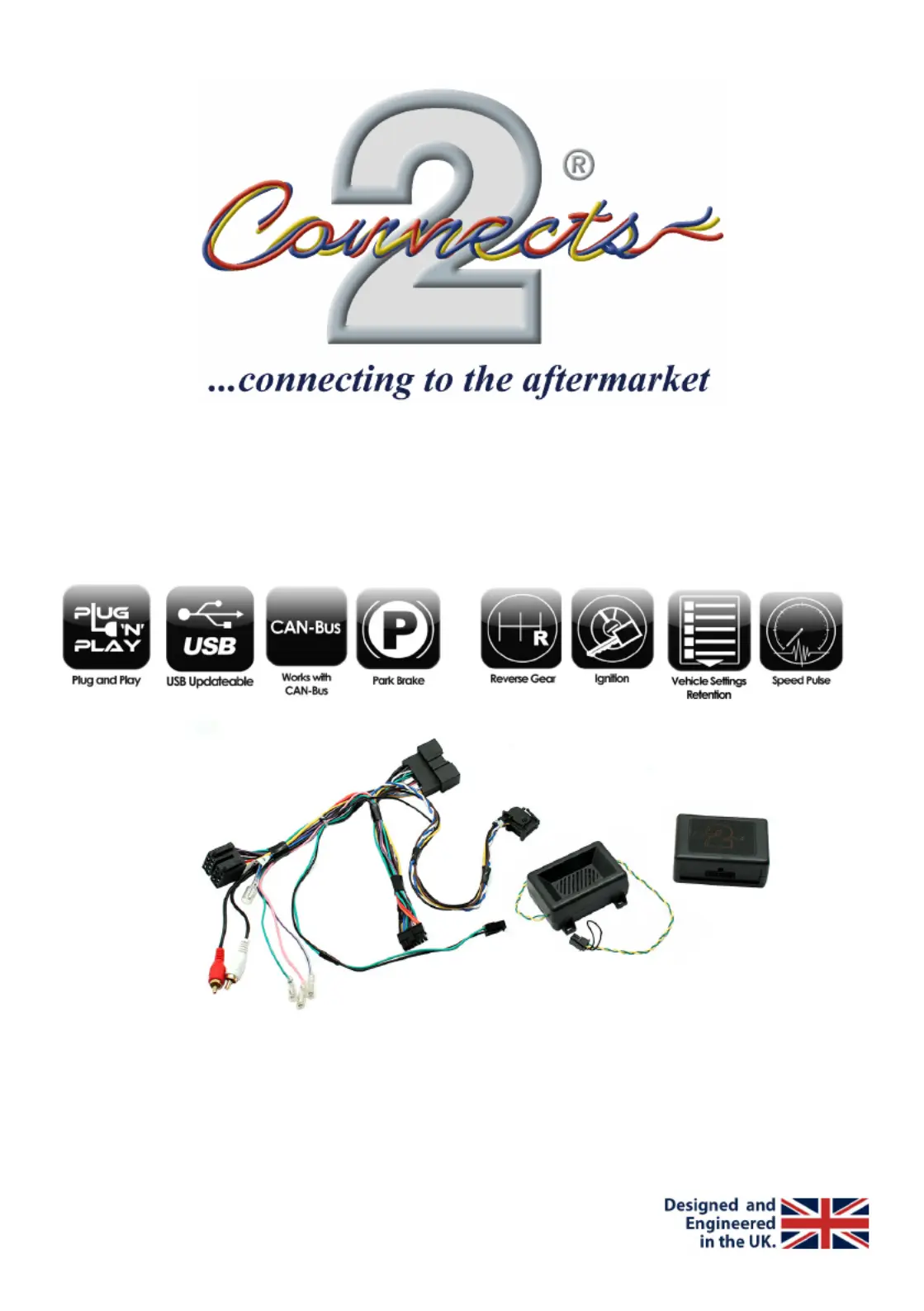

Seite 1/4
www.connects2.com
CTSFO017.2
Ford Steering Wheel Control Interface
INSTRUCTION MANUAL
www.connects2.com
2
ABOUT THIS PRODUCT...
CTSFO017.2
Ford steering wheel control interface for Ford vehicles with CAN-Bus.
Product Contents
- Interface
- Harness
- Instruction
Application
Focus 2015>
Prior to installation
Read the manual prior to installation. Technical knowledge is necessary for installa-
tion. The place of installation must be free of moisture and away from heat sources.
Please ensure you use the correct tools to avoid damage to the vehicle or product.
Connects2 can not be held responsible for the installation of this product.
Technical Support
Connects2 want to provide a fast and suitable resolution should you encounter any
technical issues. With this in mind, when contacting Connects2, try to provide as
much Information as possible. This will speed up the process and help us to help you.
Please use our dedicated online technical support centre: support.connects2.com
Subscribe to our YouTube Channel for installation
guides and tips... www.youtube.com/connects2
1. Interface
2. Male Power/Speaker ISO connector
3. Vehicle Specic Connector
4. Car Display Unit Connector
5. Chime Retention Box (Secure to Fascia)
1
3
2
4
5
www.connects2.com 3
FITTING GUIDE
1. Remove and disconnect the original head unit.
2. Connect the 12 way molex connector of the head unit patch lead
(supplied separately) to the interface.
3. Connect the opposite end of head unit patch lead to the head unit steering
wheel control input on the back of the aftermarket head unit. This may be a
3.5mm jack plug or a wire input depending upon the head unit brand being
tted. Please see the head unit installation manual for further information on
where to connect.
Important Note: This step must be completed before connecting power to the
interface. Failure to so do may result in no steering wheel control function.
4. Connect the 14 way molex connector, the car display connector (from the
vehicle) and the chime retention box to the interface.
5. Connect the car display connector (from the interface) to the vehicle and
the Aux In to the back of the head unit
6. Connect the male power/speaker ISO harness to the female power/speaker
ISO harness from the aftermarket head unit.
