INSTRUCTION MANUAL
CTUFT02

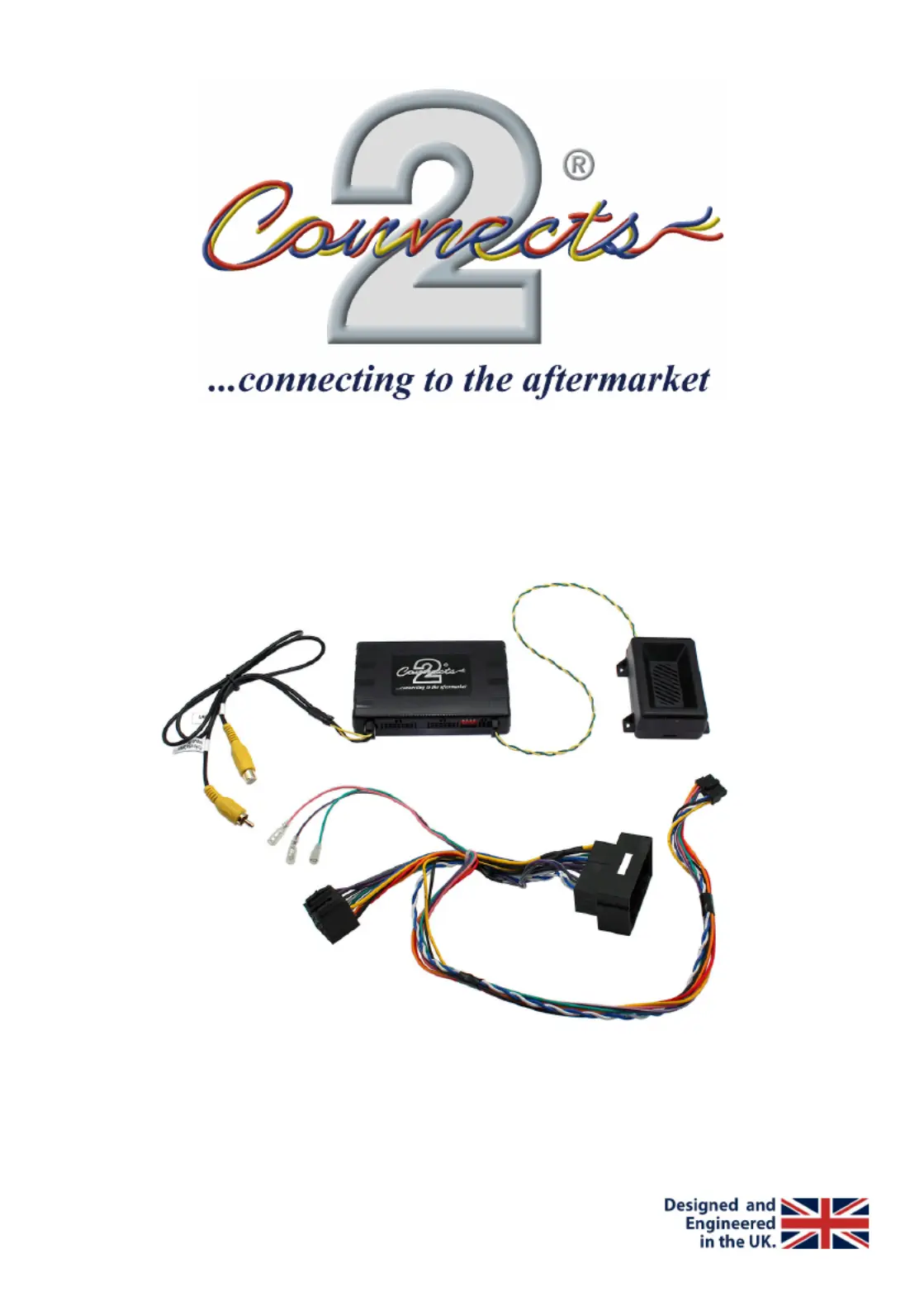

FIAT INFODAPTER
www.connects2.com
ABOUT
The Connects2 Infodapter for Fiat 500X 2015> vehicles allows vehicle setting and parking
sensor information to be displayed on any aftermarket head unit with rear camera input.
The Infodapter also allows the use of the steering wheel controls with almost every
steering wheel control compatible head unit on the market.
DIP SWITCH SETTINGS
See Fig 1.
Up = Off, Down = On
1: On = Pioneer head units. Off = All other head units
2: Setting for reverse camera. On = PAL, Off = NTSC. The default setting is Off (NTSC).
3: Resets the display settings back to default. If the display settings have been
manipulated in a way that it is no longer possible to make adjustments, change the
DIP switch #3 from Off to On and back. This will reset the screen settings to the factory
defaults. During this procedure the screen background will change to red. While the
background is red, no settings can be made.
4: Not applicable
Interface Connections
Fig 1.
1
2 3 4
DI ONP
Reverse Camera output
to head unit and reverse
camera input from
optional camera
Power Harness Steering Wheel
Remote control
connector to
head unit
Dip Switches Not Used
Fig 2.
Mute(Grey)
Speed Pulse (Pink)
Reverse (Purple)
Aftermarket head
Infodapter
Steering Wheel
Control Input
ISO
Connector
Reverse Camera Input
10 Reverse camera
(optional)
To car connector
www.connects2.com
Speech Button
Track Up/Down
Fig 3.
Steering Wheel Controls
Conguration Menu
To access the menu, for 2 seconds (Fig. 3).(if no speech push and hold the speech button
button, pick up can be used) This will enable the conguration menu. To navigate
through the menu options use the To select a menu Track Up/ Track Down buttons.
Conguration Menu
Vehicle Settings
Infodapter Settings
Language
Version
< Back
Vehicle Settings
Display
Clock
Doors and Locks
Lights
Safety and Driving Assistance
Vehicle Off Options
• Vehicle Settings
Vehicle settings can be adjusted via
the menu. All vehicle setup options
that were available with the original
head unit, are now available through
the aftermarket head unit. See the
vehicle handbook for more information
regarding these features.
Screen Size/Position
Horizontal Size
Horizontal Position
Vertical Size
Vertical Position
< Back
• Infodapter Settings
o Screen Size/Position -
Make sure all 4 corner markers
are touching the corners of the
aftermarket head unit display.
