IVECO
All installa on work must be performed by a quali ed professional installer only.� fi
The manufacturer / dealer is not liable for any kind of incidental or indirect damages.
10/2019 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints. R0
SWC CANBUS
2019>
INSTALLATION MANUAL
Daily with opendash/ Radio Prepara on/ OEM DAB Radio Set up
Model:
Year:
Kit content:
Customer code:
10/2019 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
wiring harness
antenna adapter
voltage stabilizer
All installa on work must be performed by a quali ed professional installer only.� fi
The manufacturer / dealer is not liable for any kind of incidental or indirect damages.

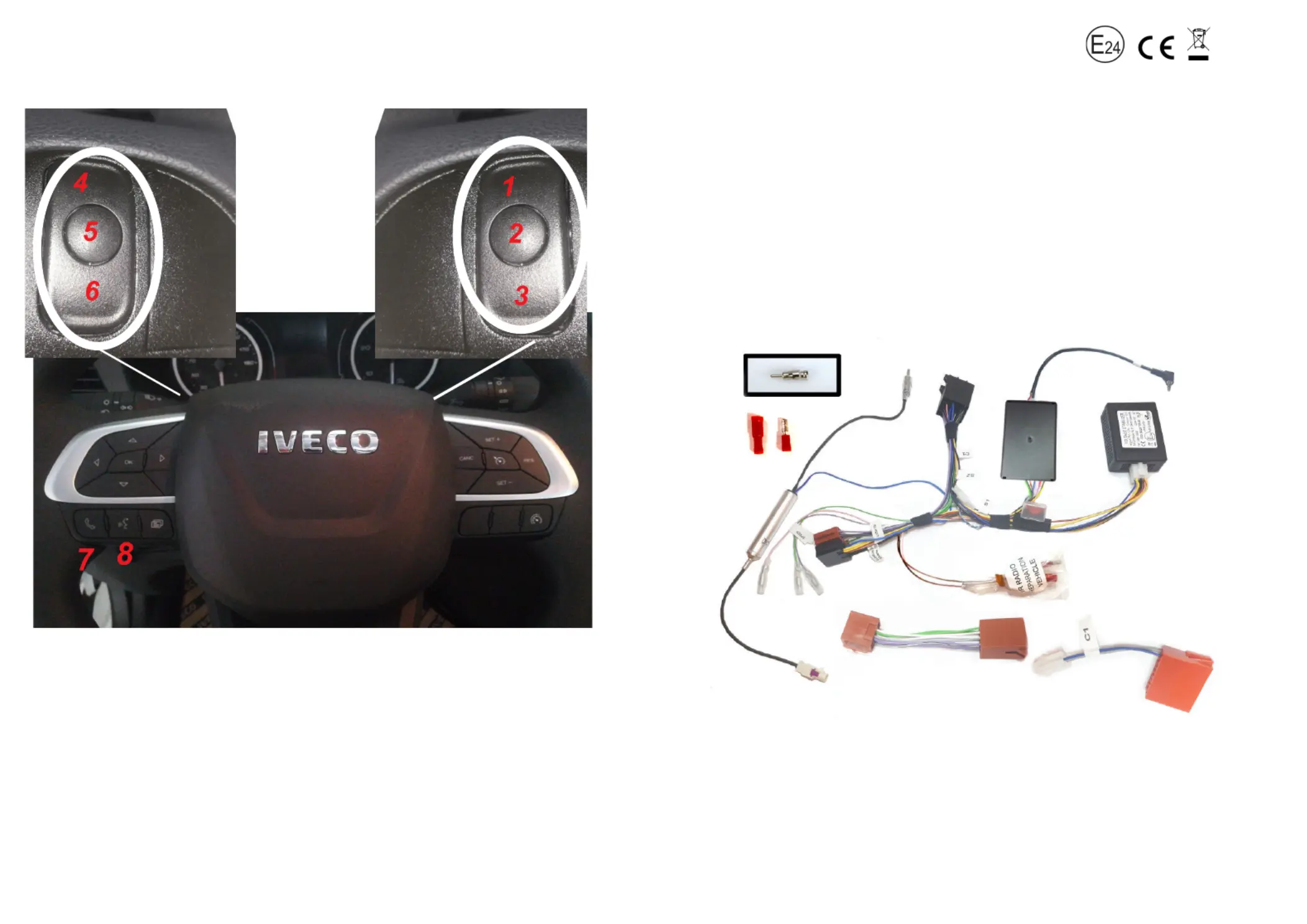

Steering wheel control interface installa on kit for:
radio adapter (*) if included
*
CA-R-DAI.004
1- Volume +
2- Mute
3- Volume -
4- Seek +
5- Source
6- Seek -
7- Accep ng incoming call
8- Speech
Steering wheel func ons :
ATTENTION!
In order to prevent ESD damage, the STEERING WHEEL REMOTE JACK (5)
must be connected before plugging in the connectors on car side.
Connect cables as follow:
1A/1B- to RADIO CONNECTORS
2- to SERVICES:
Pink - Speed
Green - Parking
Violet/White - Reverse
3- to brown see the a acched page
4- to white see the aacched page
5- to WIRED REMOTE SOCKET (NOTE: do not connect to AUX socket)
6- to CAR CONNECTORS
7- ANTENNA ADAPTER
8- OPTIONAL 1=> see next page
9- OPTIONAL 2=> see the a acched page
2
4
9-optional 2
3
1A
8-optional 1
6
3A
4A
7
1B
5
Pair your phone and make a call.
if you hear the audio in a wrong way (only tweeters for example)=> install
the cable number 1 on the interface as shown below.
All installaon work must be performed by a qualied professional installer only. The manufacturer / dealer is not liable for any kind of incidental or indirect damages
10/2019 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints
IVECO DAILY
Daily 2019 with open dash / Radio preparaon / OEM DAB Radio setup => SET THE HARNESS ACCORDING TO THE CONFIGURATION OF YOUR VEHICLE
CONFIGURATION
STEP 1
STEP2
Conguraon with Radio Steering wheel controls and open
dash
Connect to wires
Number 3 & 4 of
the interface:
Conguraon with Radio steering wheel controls and DAB
Radio
Conguraon without Radio steering wheel controls and
open dash
