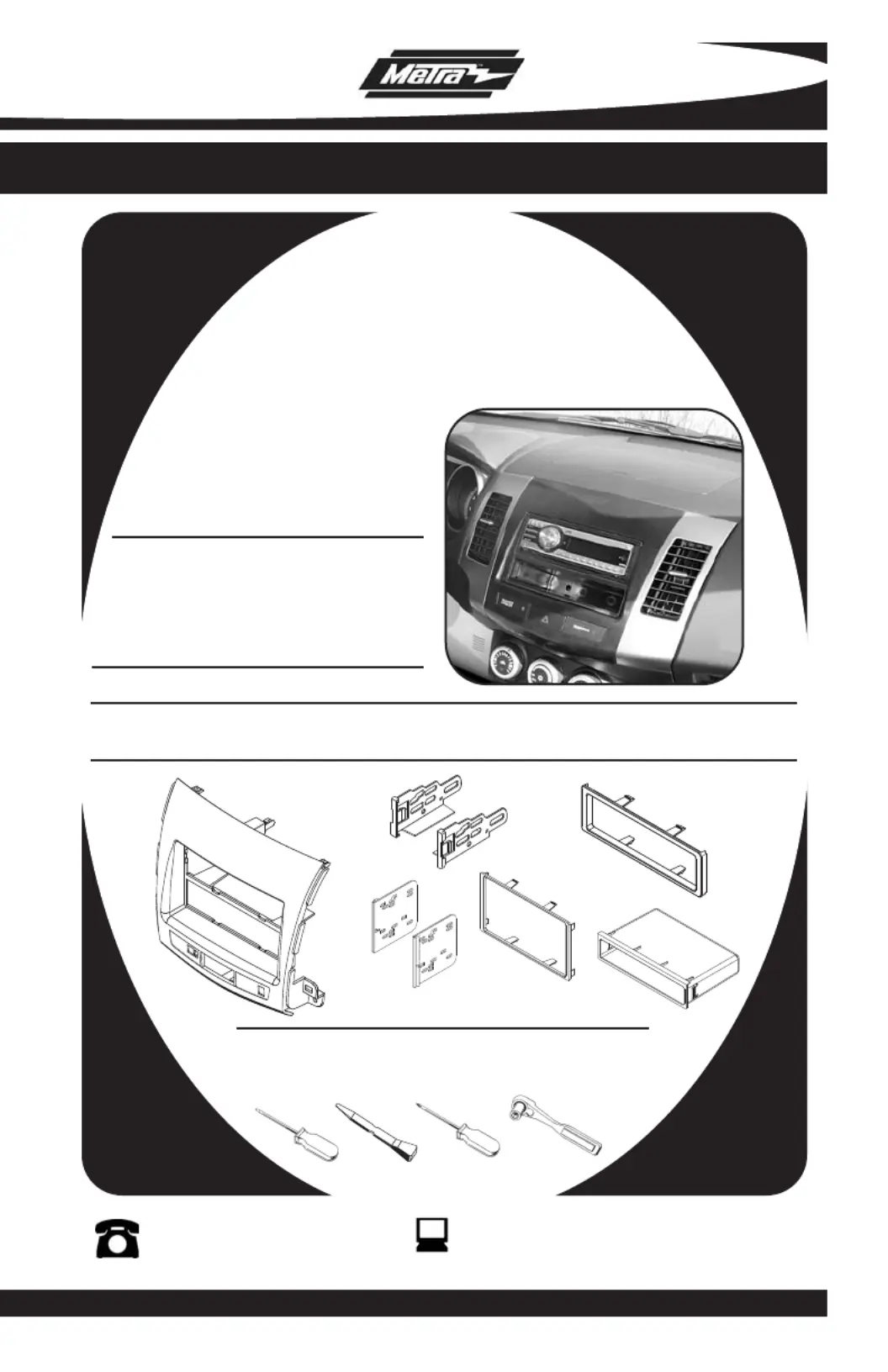

INSTALLATION INSTRUCTIONS FOR PART 99-7013
99-7013
APPLICATIONS
Mitsubishi Outlander
2007-2008
KIT FEATURES
• DIN Radio Provision with Pocket
• ISO Mount Radio Provision with Pocket
• Double DIN Radio Provision
• Stacked ISO Mount Units Provision
A) Radio Housing • B) ISO Brackets • C) ISO Trim Plate • D) Double DIN Brackets
• E) Double DIN Trim Plate • F) Snap In Pocket
KIT COMPONENTS
A
Small Flat Blade Screwdriver/ Panel Removal Tool
• Phillips Screwdriver • Socket Set
1-800-221-0932
© COPYRIGHT 2007-2008 METRA ELECTRONICS CORPORATION
www.metraonline.com
BC
D
TOOLS REQUIRED:
E
F
Dash Disassembly
-
Mitsubishi Outlander 2007-2008 . . . . . . . . . . . . . . .
. . . . . 1,2
Kit Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Kit Assembly
- DIN Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
- ISO Mount Radio Provision with Pocket . 5. . . . . . . . . . . . . . . . . . . . . .
- Double DIN/Stacked ISO Units Provision . . . . . . . . . . . . . . . . . . . . . . . 6
Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
TABLE OF CONTENTS
99-7013
*Note:
Refer also to the instructions included with the aftermarket radio.
99-7013 DASH DISASSEMBLY
MITSUBISHI OUTLANDER 2007-2008
PASSE
NGER
AIR
BAG OFF
PA SS EN GER
PA
SSEN GER
AIR
BAG OFF
PASSENGER
B
C
1
Disconnect the negative battery ter-
minal to prevent an accidental short
circuit.
1
Unclip and remove the vents from the
left and right side of the factory radio
panel. (
Figure A)
Remove (4) Phillips screws securing
the radio chassis. Unplug and remove
the chassis.
(Figure C)
2
Remove (2) Phillips screws securing
the radio trim panel then unclip and
remove the panel.
(Figure B)
3
4
A
Continued on page 2.
