10. Remove hazard light switch (1)
from OEM head unit - attach it
to double DIN facia plate
Remove upper instrumental
panel (2) - attach it to double DIN
facia plate
Fix clips to double DIN facia plate
Place double DIN facia plate
Reinstall everything in reverse
order to nish installation
2
1
9. Connect all required circuit points
Fix Pioneer Navigation on
dashboard
Kia Sportage III 2010->
Compatible with these Pioneer double DIN devices
Pioneer Navigation

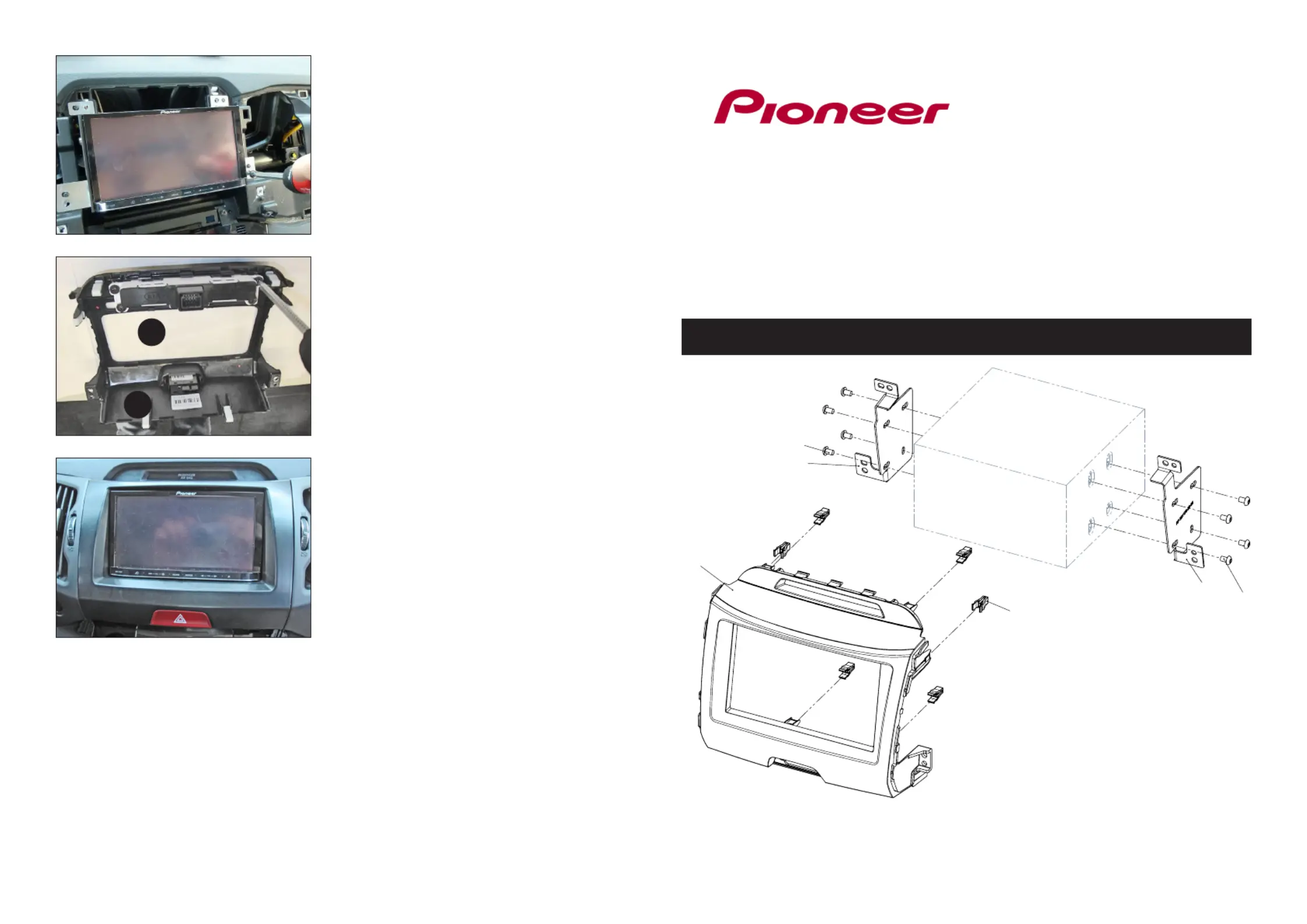

Installation Manual
Double DIN Kit
(1) Double DIN Facia Plate
(2) Mounting bracket (right)
(3) Mounting bracket (left)
(4) Fixing screws
(5) Clips
dark-grey: CA-HM-KIA 001 DG
light-grey: CA-HM-KIA 001 LG
1
24
3
4
5
2. Unclip right side panel
1. Remove screws of OEM head unit
(left and right)
4. Unclip left side panel
3. Remove right side panel by pulling
it towards your direction
5. Remove left side panel by pulling
it towards your direction
6. Remove screws of OEM head unit
Remove OEM head unit
7. Attach metal mounting
brackets to Pioneer Navigation
8. Bend down metal bar (see arrows)
in order to clear space for double
DIN head unit
