Double DIN Set contents
• (1) Facia Plate • (2/3) Mounting Brackets
• (4) xing screws

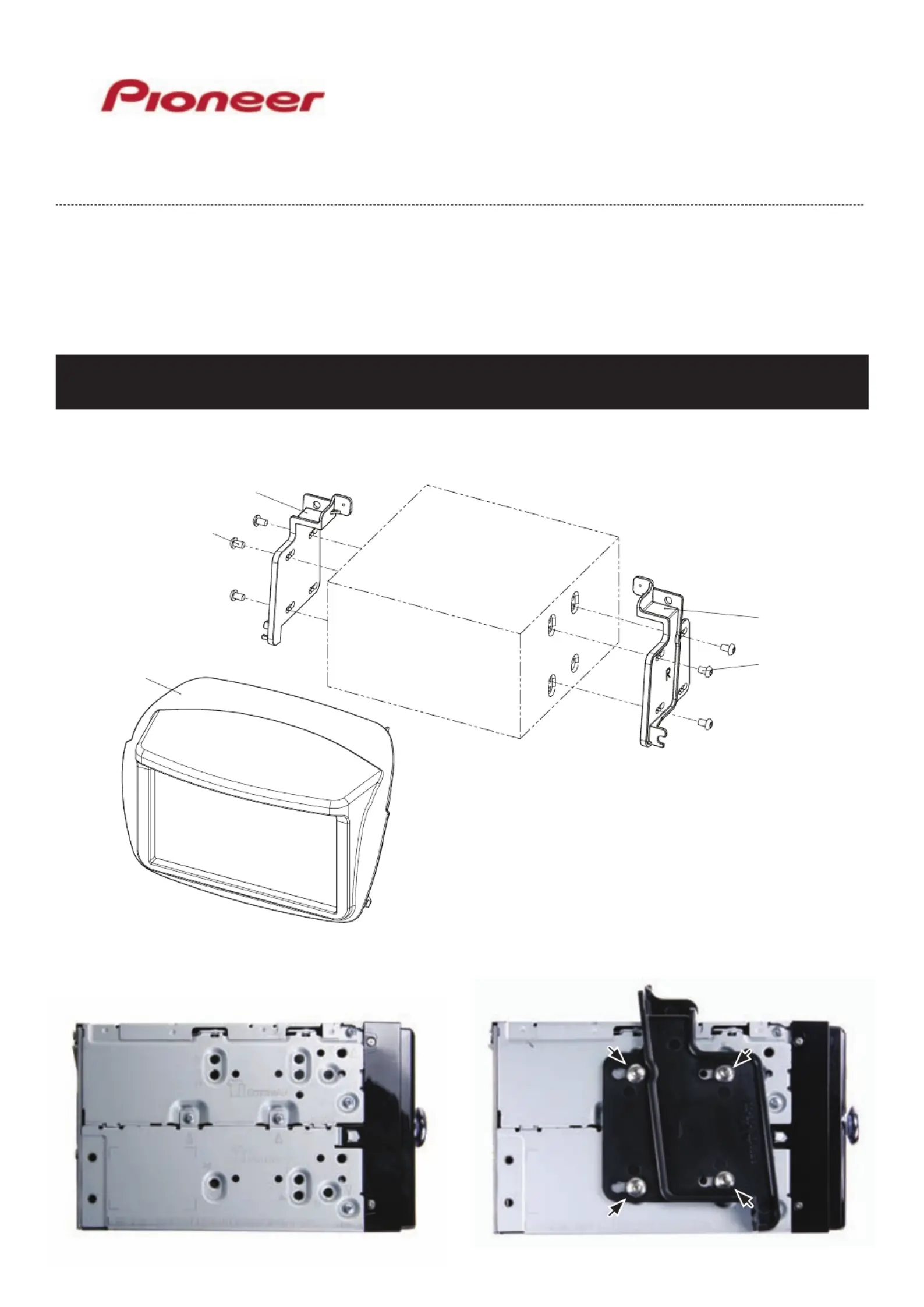

Attach mounting brackets left (L) and right (R) to
Pioneer Navigation (use the rst of three possible
holes as shown on the photo below)
1
2
4
3
4
Compatible with these double DIN devices
Pioneer Navigation
Installation Manual
Double DIN Kit
Part-No.: CA-HM-FIA.002
• Fiat Doblò 2010->
Installation Manual Double DIN Kit: Fiat Doblò 2010->
3. Remove screws holding
center panel (see arrows)
Info: You have to reuse the
screws later
Unclip center panel
Remove center panel
1. Remove OEM Radio with special
radio release keys
Please study the installation manual carefully, before you start. The installation requires some cutting
works of the OEM-Panel. All OEM screws have to be reused again
2. Remove 2 screws
(left and right)
All installation work must be performed by a qualied professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
4. Disassemble center panel (you have to reuse the screws later!)
5. Cut upper part from center panel inlay (the upper part - see cross - won‘t be needed anymore)
6. Cut this part at center console (see dashed line)
