© 5/2009 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
Compatible with these Pioneer double DIN devices
Pioneer Navigation
Installation Manual
Double DIN Kit 281294-06
• Suzuki Grand Vitara 2005->

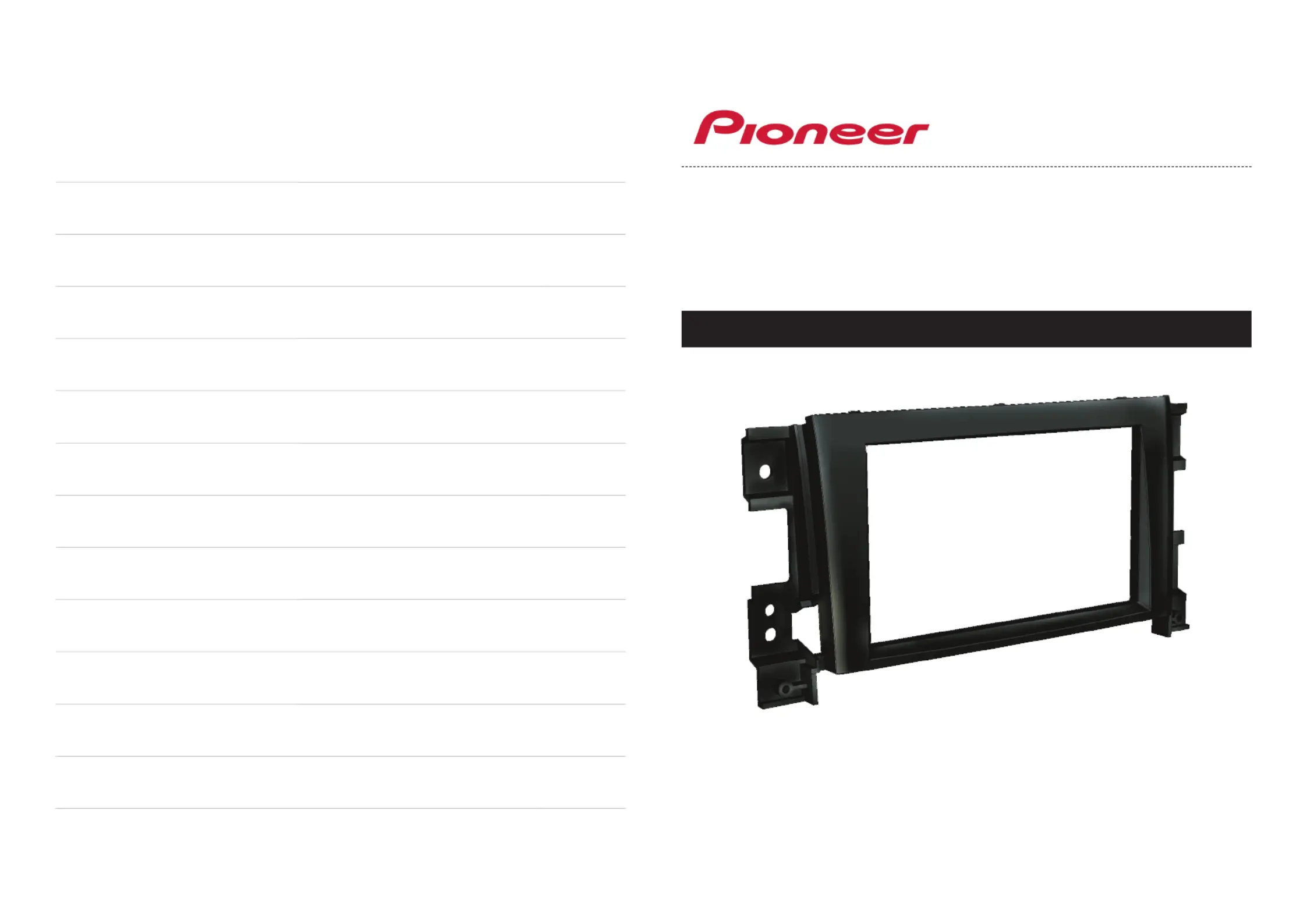

Double DIN Set contents
Facia Plate
Installation Manual Double DIN Kit 281294-06
2. Remove the four screws beside
the OEM head unit.
All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
1. Remove the side panels at the left
and right side of the dashboard
4. Remove the metal frame
from the OEM head unit
Mount the metal frame to the
Pioneer Navigation
5. Mount the new facia plate
to the Pioneer Navigation.
Connect all required circuit
points and place the facia
plate (with the Pioneer
Navigation) on the dashboard
Fix it with the four
original screws
Reinstall everything in
reverse order
3. Remove the OEM head unit
(which is still mounted
to the metal cage)
