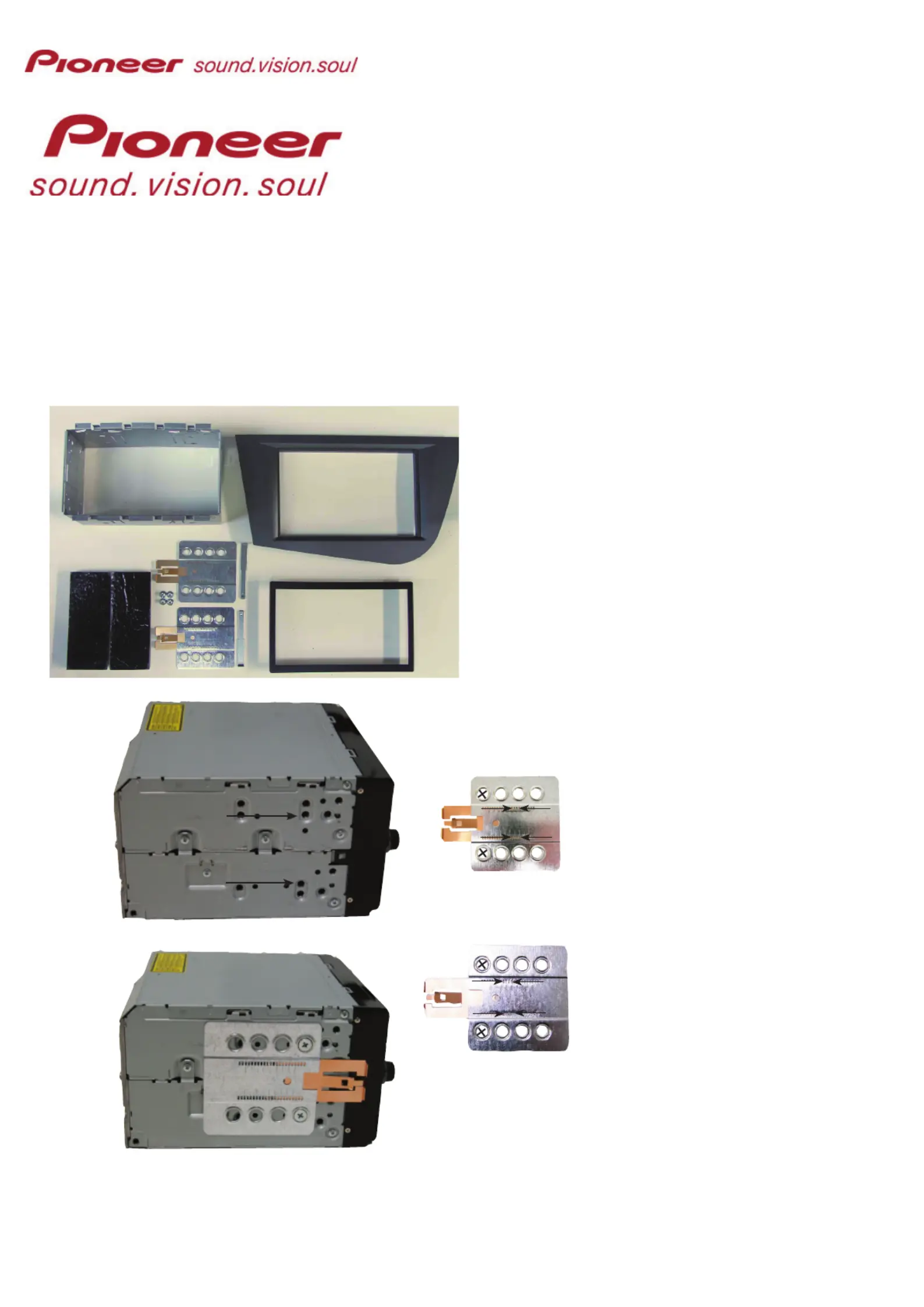

2-Din 12.301328-04
Installation kit includes the following items:
* 1X 2-ISO 110 mm. metal bracket
* 1X Radio trim
* 1X Replacement panel
* 2X Mounting plates
* 2X Mounting spacers
* 4X Screws
* 2X Cushion
* 2X Radio keys
Installation manual for:
Seat Leon 2008 -->
Light Silver
Use this hole
Use this hole
Pioneer HD1BT
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 14 & 16 marked with an arrow.
Measured from left to right.
Pioneer Avic D3
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 9 & 11 marked with an arrow
Measured from left to right.
* Mount the plates.
1 2
Place replacement panel for Seat
Leon 05-> incl. metal bracket.
Remove original radio. Use radio
removal keys at the location of the
arrows.
3 4
Place plastic radio trimConnect all wiring and place head
unit.
Connect all of the needed wiring harnesses and check all connections carefully
