2-DIN 12.301286-04

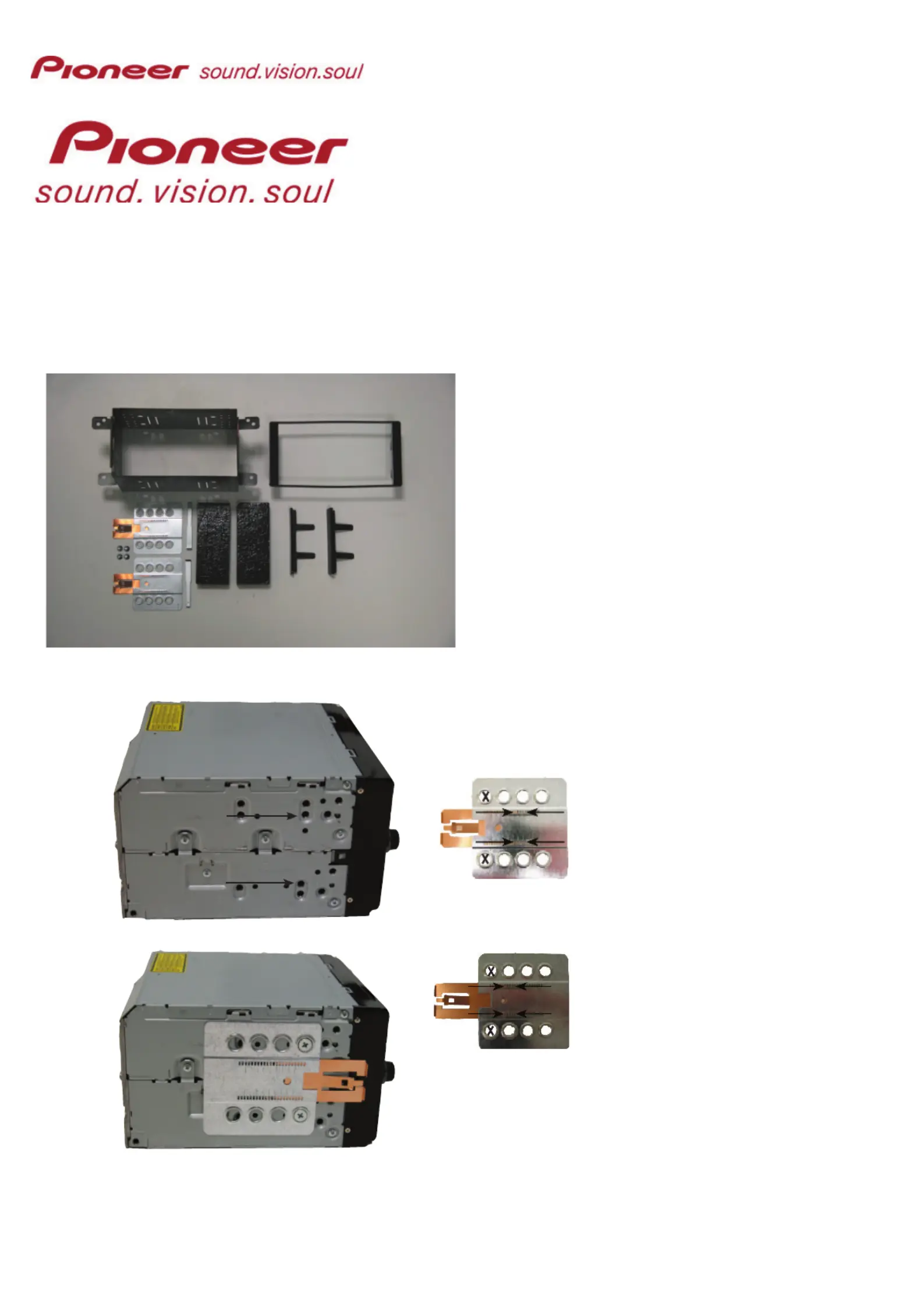

* Mount the plates.
Use this hole
Use this hole
Pioneer HD1BT
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 14 & 16 marked with an arrow.
Measured from left to right.
Pioneer Avic D3
We advice to use the following positions.
Other positions are also possible.
Use position 1 marked with a cross.
Use position 9 & 11 marked with an arrow
Measured from left to right.
Installation manual for:
Subaru Impreza 2008 -->
/ Forrester 2008-->
Installation kit includes the following items:
* 1X 2-ISO 100 mm. metal bracket
* 1X Radio trim
* 1X Replacement panel
* 2X Mounting plates
* 2X Mounting spacers
* 2X Radio removal keys
* 4X Screws
* 2X Cushion
Connect all of the needed wiring harnesses and check the connections carefully.
2-DIN 12.301286-04
Remove the original radio.
This is tighten by four screws.
Remove the panel around the radio at the
location of the arrows.
Use a plastic wedge.
Connect all of the needed wiring harnesses and check the connections carefully.
1 2
3 4
Place the 2-Din metal bracket.
5
Place the new heafdunit and the new
radio trim.
6
