SUPPORT

-Plastic Putty Knife

NOTE: Changing the door mount is not advisable if you have a door with custom wood overlay.

-Hinge Kit from Perlick

-Regular Phillips-Head Screwdriver

PROCEDURE FOR SWITCHING DIRECTION OF DOOR SWING

ON PERLICK C-SERIES, 15 INCH, AND SIGNATURE SERIES CABINETS

doing so may result in having a handle that is in an undesirable position.

Required:

-Large Flat-Head Screwdriver HINGE KITS

Part number 67439R to switch to Right Hinging

Part number 67439L to switch to Left Hinging

SCALE 1:24

3/28/2011DAS

Milwaukee, WI 53223

DRAWN

Perlick Corporation

67439

OR MECHANICAL, INCLUDING PHOTOCOPYING, RECORDING, OR USED IN ANYINFORMATION STORAGE, TRANSMISSION, OR RETRIEVAL SYSTEM, WITHOUT WRITTEN PERMISSION FROM THE PERLICK CORPORATION

REVERSAL

THIS DOCUMENT/PUBLICATION/SOFTWARE/DRAWING CONTAINS PROPRIETARY INFORMATION WHICH IS THE PROPERTY OF THE PERLICK CORPORATION. IT MAY NOT BE REPRODUCED OR TRANSMITTED IN ANY FORM, ELECTRONIC

DOOR HINGE DATE

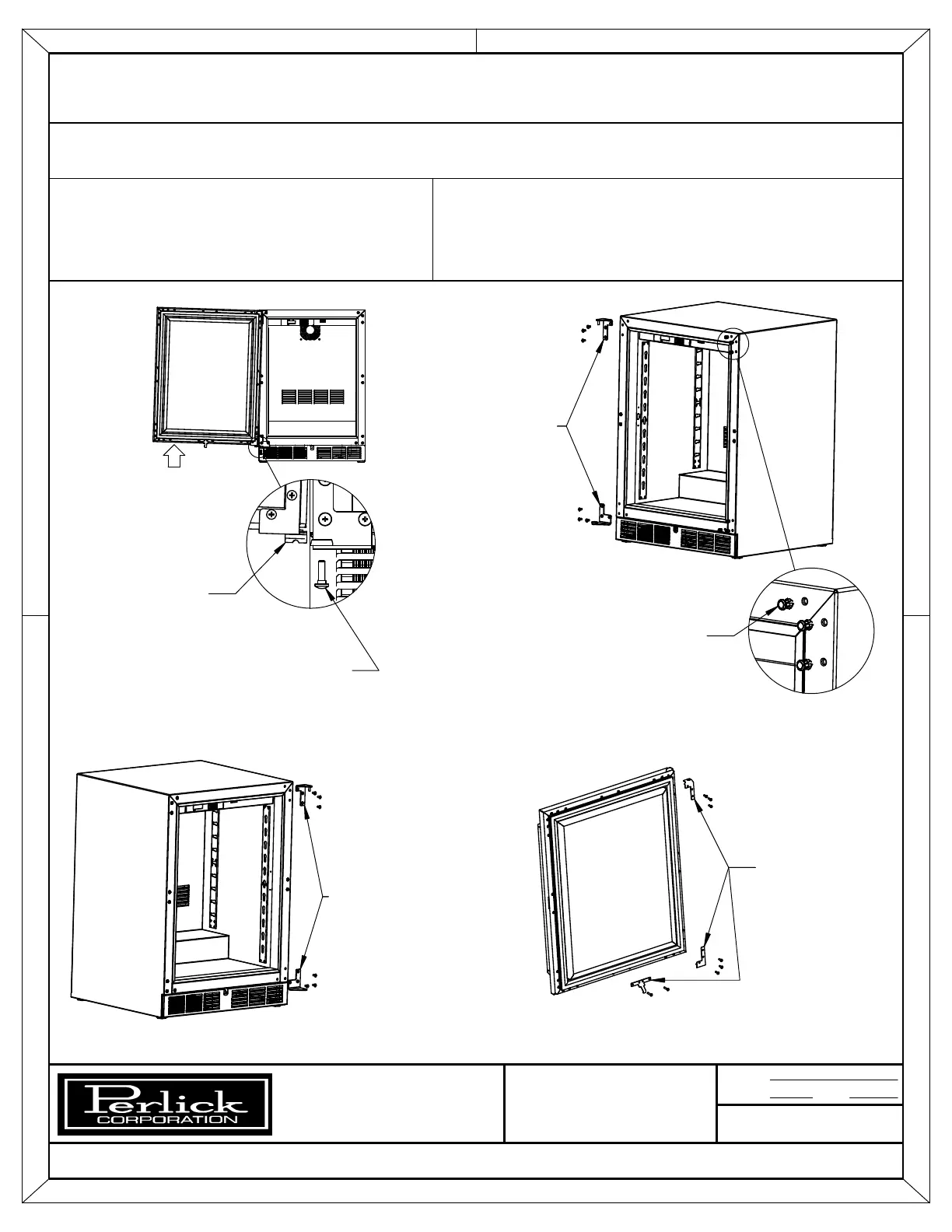

Step 1: Support door in

the open position as shown.

Remove Hinge Pin.

Step 2: Pull

door to the side,

then lower door.

Step 3: Remove

Top and Bottom

Hinge Brackets

and save the

screws for later.

Step 4: Remove the Hole Plugs

from the Top and Bottom Hinge

Bracket mounting holes. Then

place them in the holes on the

opposite side made vacant

in Step 3.

Step 5: Using the

screws from Step 3,

install the new Top

and Bottom Cabinet

Hinge Brackets.

Save the screws

for later.

Plunger Bracket.

Step 6: Remove

the Top and

Bottom Door

Hinge Brackets

and the Push

Step: 7 Remove the Front Panel

from the Door Assembly by

removing the inner mounting

screws, 4 per side, from the

perimeter of the assembly.

Rotate the Front Panel 180°,

the top becomes the bottom.

Reattach using the same

screws and mounting holes.
