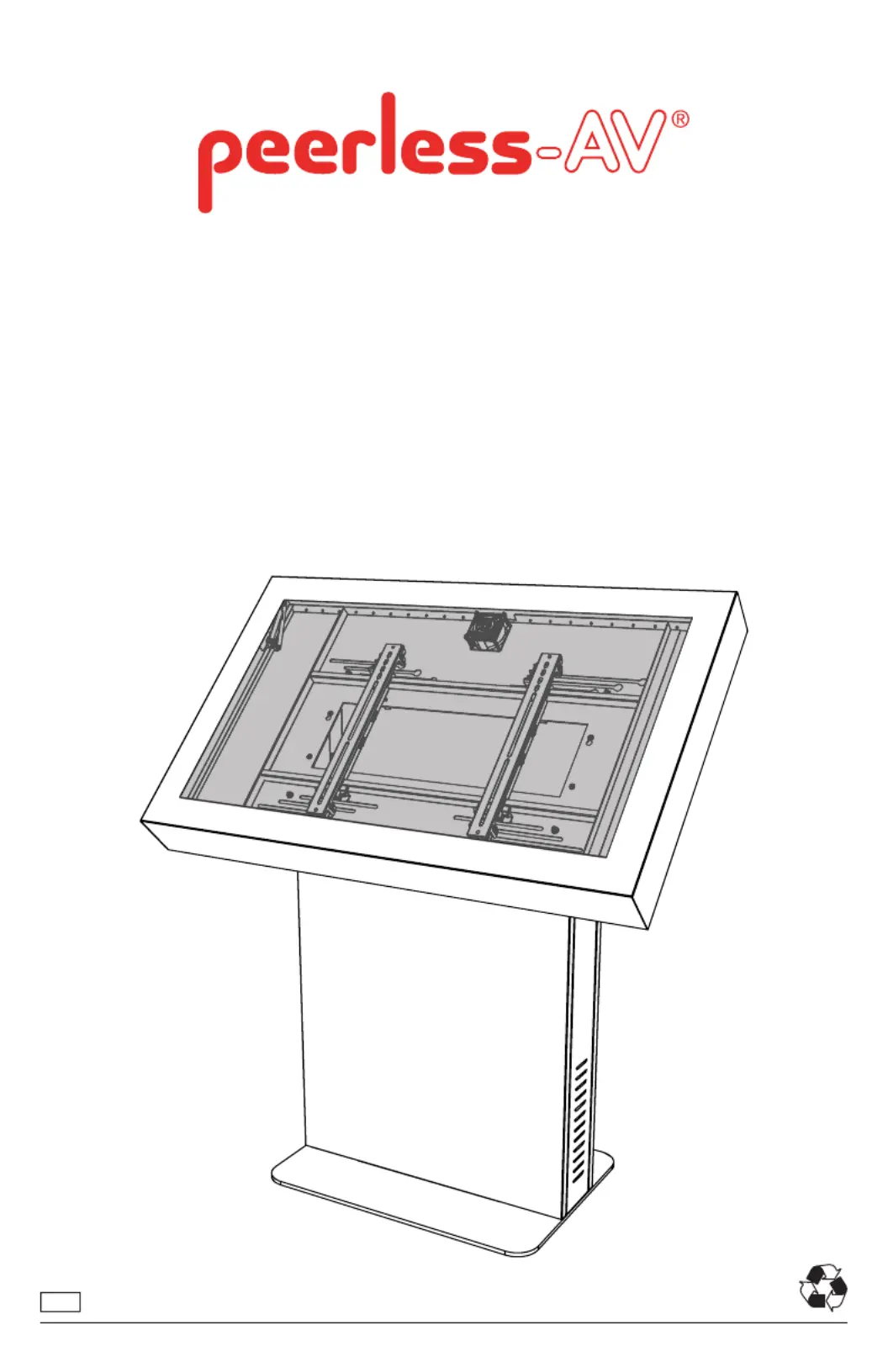

KIL540, KIL540-S, KIL540-EUK,
KIL542, KIL542-S, KIL542-EUK,
KIL546, KIL546-S, KIL546-EUK,
KIL547, KIL547-S, KIL547-EUK,
KIL555, KIL555-S, KIL555-EUK
22014-20-03 #:150-9017-2 06-04-14
ENG - Do not begin to install product until you have read and understood the instructions and warnings
contained in this user guide. This product is designed to be installed on wood stud, solid concrete or cinder
block walls. Hardware is included for wood stud, solid concrete and cinder block installation. Before installing
make sure the supporting surface will support the combined load of the equipment and hardware. Screws must
be tightly secured. Do not overtighten screws or damage can occur and product may fail. Never exceed the
Maximum Load Capacity. Always use an assistant or mechanical lifting equipment to safely lift and position
equipment. This product is intended for indoor use only. Use of this product outdoors could lead to product
failure or personal injury. To reduce the risk of electric shock or fi re, do not expose product to water or moisture.
Be sure power cord is routed so that it will not be tripped on, stepped on, or pinched by heavy items. Avoid
overloading electrical outlets or extension cords. Always disconnect the power cord from the power outlet
when installing, servicing, or not using the product for an extended period of time. Do not block ventilation
slots or fan exhaust on product. Blocking airfl ow could damage product. Arrange product to allow air to fl ow
freely around product. Keep product away from direct sunlight or any source of heat. For support please call
800- 4-SIGNAGE.
WARNING
Symbols
ENG
WARNING
ENG
#
Skip to step.ENG
x3
Screws must get at least three
full turns and fi t snug.
ENG
Do not overtighten screws.
ENG
Tools Needed for Assembly.
ENG
ENG Two person lift.
32014-20-03 #:150-9017-2 06-04-14
Parts (Before beginning, make sure you have all parts shown below).
ENG
A (1)
kiosk
J (2)
key
B (4)
M5 x 12 mm
C (4)
M5 x 25 mm
D (4)
M6 x 12 mm
E (4)
M6 x 25 mm
M5/M4/M6 washer
H (4)
M8 x 12 mm
F (4)
M8 x 25 mm
G (4)
spacer
I (4)
K (1)
6x1 wrench
Parts List KIL540
KIL540-S
KIL540-EUK
Part #
KIL542
KIL542-S
KIL542-EUK
Part #
KIL546
KIL546-S
KIL546-EUK
Part #
KIL547
KIL547-S
KIL547-EUK
Part #
KIL555
KIL555-S
KIL555-EUK
Part #
Description Qty
Akiosk BLK
kiosk SLV
1 150-P1169
150-4169
150-P1170
150-4170
150-P1171
150-4171
150-P1172
150-4172
150-P1172
150-4172
BM5 x 12mm Pan Phl
screw
4 520-1027 520-1027 520-1027 520-1027 520-1027
CM5 X 25mm Pan Phl
screw
4 520-9543 520-9543 520-9543 520-9543 520-9543
DM6 x 12mm Pan Phl
screw
4 520-1128 520-1128 520-1128 520-1128 520-1128
EM6 x 25mm Pan Phl
screw
4 520-1208 520-1208 520-1208 520-1208 520-1208
FM8 x 12mm Pan Phl
screw
4 520-9571 520-9571 520-9571 520-9571 520-9571
GM8 x 25mm Pan Phl
screw
4 520-1031 520-1031 520-1031 520-1031 520-1031
HM5/M4/M6 multi washer 4 580-1398 580-1398 580-1398 580-1398 580-1398
I1/4"spacer 4 540-1059 540-1059 540-1059 540-1059 540-1059
Jkey 2 565-0049A 565-0049A 565-0049A 565-0049A 565-0049A
K6x1 wrench 1 560-9646 560-9646 560-9646 560-9646 560-9646
