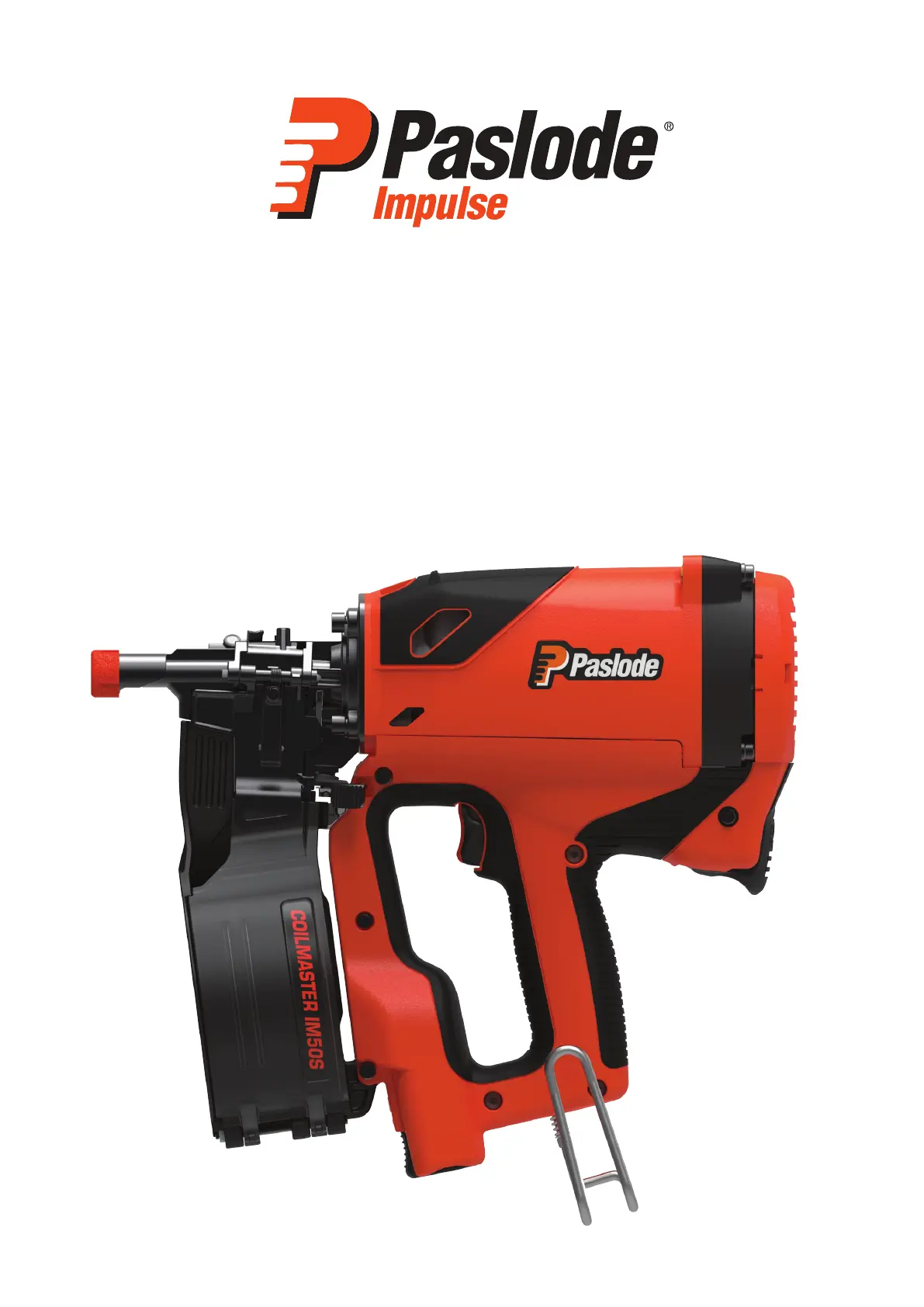

Seite 1/20
PASLODE IMPULSE
COILMASTER IM50S
MANUAL
ANZ Product Code B40001
1 IM50S COILMASTER MANUAL
TABLE OF CONTENTS
GENERAL SAFETY INSTRUCTIONS
TOOL SAFETY INSTRUCTIONS
BATTERY SAFETY & CHARGING
FUEL CELL SAFETY
TOOL OVERVIEW
FUEL CELL LOADING PROCEDURE
CORRECT TOOL OPERATING PROCEDURES
PREPARING AND USE OF TOOL
TROUBLESHOOTING
TOOL MAINTENANCE
TOOL SPECIFICATIONS
SCHEMATICS
ACCESSORIES
2
3
4
5
6
7
8
9
10
11
15
16
19
IM50S COILMASTER MANUAL 2
Congratulations on the purchase of your new Paslode Cordless IM50S CoilMaster Nailer.
GENERAL SAFETY INSTRUCTIONS
The Impulse system consists of: tool, fuel cell, battery,
charger and fasteners. In the interests of operator
and system safety, the tool, fasteners and the fuel
cells referred to in the Paslode documents, must be
considered as one single, complete safety system.
WARNINGS
DO NOT ATTEMPT TO OPERATE
THIS TOOL UNTIL YOU HAVE
READ AND UNDERSTAND ALL
SAFETY PRECAUTIONS AND
MANUAL INSTRUCTIONS.
The Paslode Impulse IM50S CoilMaster is
an internal combustion device. It produces
hot exhaust gases that may ignite
flammable materials. This tool must not
be used in a combustible environ ment or
in the presence of combustible materials,
such as flammable chemi cals, adhesives,
gasoline, or solvents.
Failure to follow all safety precautions and
instructions may result in a permanent
loss of vision, serious personal or even
fatal injury, property damage and/or tool
damage.
Do not expose the tool to temperatures in
excess of 49°C (120°F). Fuel and/or the
battery may burst, releasing flammable
gas.
This tool must be operated only in a well-
ventilated environment, because the tool
exhausts carbon monoxide similar to a
petrol/gasoline lawnmower. Exposure to
carbon monoxide may cause dizziness,
nausea, or unconsciousness.
ALWAYS keep the Impulse IM50S
CoilMaster fuel cell, battery and battery
charger out of the reach of children.
ALWAYS wear eye and ear safety
equipment (PPE) when working with
or in the vicinity of the Paslode Impulse
IM50S CoilMaster.
The Impulse IM50S CoilMaster should not
be used in the rain or where excessive
moisture is present.
MAINTENANCE
Restrict Field Maintenance to the following:
CHECKING THE ENERGY LEVEL OF THE BATTERY
RECHARGING THE BATTERY
CHECKING THE FUEL CELL
REPLACING THE FUEL
CLEANING/REPLACING THE AIR FILTER
CLEARING A JAM
CLEANING AND LUBRICATING THE TOOL
(SEE CLEANING MANUAL INSTRUCTIONS (PG 12)
CAUTION
Never attempt any maintenance of a
Paslode Impulse tool without first
removing the fasteners, fuel cell and
battery. Maintenance should be started
only after the tool is inoperative.
Operators should be capable of conducting basic
maintenance on the tool. This will not affect your tool
warranty.
FUEL CELL CHECK
Check the fuel cell. First remove the fuel cell from the tool
and check the “Best Use Before” date stamped on the
bottom of the cell.
CLEARING A NAIL JAM SAFELY
1. Remove the battery, fuel and fasteners.
2. Push the latch opening the magazine.
3. Clear jam, and push driver blade back up to its
rest position at the top of the cylinder.
4. Close magazine. Check contact probe moves freely.
FUEL CELL DISPOSAL
Dispose of all empty fuel cells responsibly. Remember to
dispose of these fuel cells where they will not be crushed,
punctured, burned or found by children.
Refer to your local authority regulations.
