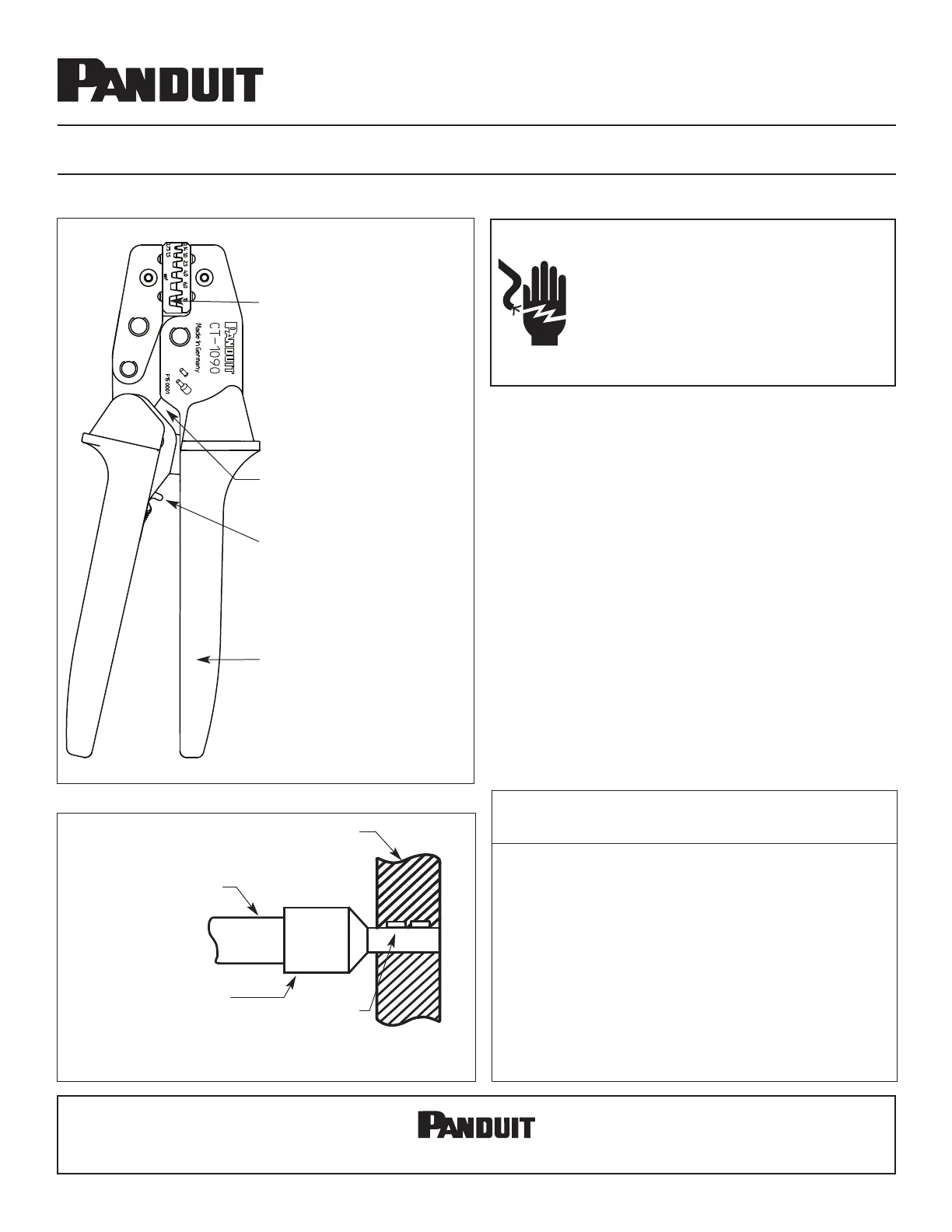

CONTROLLED CYCLE FERRULE CRIMPING TOOL
OPERATION, INSPECTION and MAINTENANCE INSTRUCTIONS
1. With the handles in the open position, insert the ferrule
into the crimp pocket. Make sure that the ferrule is
inserted fully into the crimp die (see Figure 2).
2. Insert the stripped wire into the ferrule until the wire
stops. Refer to product packaging for wire strip length.
3. Crimp the ferrule by closing the handles until the
controlled cycle mechanism releases. Upon release,
the handles will open automatically and the crimped
ferrule can be removed.
NOTE: Crimp entire uninsulated ferrule length. This may
require additional crimps.
CT-1090 TOOL
Fig. 1
Fig. 2
Stripped
Wire
Crimp Die
Controlled cycle mechanism
prevents tool from opening
before crimp cycle is completed.
Manual release lever, push
forward in the event that
controlled cycle mechanism
must be released.
Cushioned handle grips
CRIMP POCKETS for Ferrule
terminals. Refer to product
packaging for wire range and
proper crimp pocket. Crimp
pockets are identified with
applicable wire range.
Ferrule - Wire
crimp section
Ferrule Insulated
section
CT-1090
PA28190A01
REV: 00 9-2016
E-mail:
techsupport@panduit.com
For Technical Support:
1-800-777-3300
www.panduit.com
CAUTION:
Verify power is “OFF” before working on
wiring with these tools.
The plastic grips are for the user’s
comfort, and are not intended
to insulate against electrical shock while
working on live electrical circuits.
INSPECTION / MAINTENANCE
NEW TOOLS -
BEFORE PLACING INTO SERVICE:
All Panduit crimping tools are inspected before they are
shipped from the factory. All new tools should be
inspected before being used.
New tools are shipped, factory lubricated, in protective
packaging. After inspection, simply clean any excess oil
from the crimping dies and place into service.
When the tool is not in use, keep the handles closed to
prevent objects from becoming lodged in the crimping
area. Store the tool in a clean, dry area.
Page: 2 of 2
IN SERVICE TOOLS - AFTER TOOLS HAVE BEEN IN SERVICE:
It is recommended that each operator of the tool be made aware of - and responsible for following these maintenance
steps:
In-service tools should be cleaned and inspected at least ONCE A MONTH. To clean - wipe with a clean cloth.
In-service tools should be lubricated ONCE A WEEK, and after every cleaning. Lubricate all pins, pivots and bearing
surfaces with DOW CORNING®Molykote BR2 Plus.
Be sure to clean any excess oil from the crimping dies before using.
®Molykote BR2 Plus is the Registered Trademark of DOW CORNING.
VISUAL INSPECTION
1. Visually inspect the tool for missing or loose pins; then close the tool and note the return action of the handles.
2. Inspect the crimping dies for worn, chipped or broken edges.
3. If parts are missing, defective or damaged; contact Panduit for information on repair or replacement of tools.
4. Check for debris in dies. Any debris will need to be removed prior to tool use.
© Panduit Corp. 2016 OPERATION, INSPECTION
and MAINTENANCE INSTRUCTIONS CT-1090
