ELECTRICAL SOLUTIONS
Prime items appear in BOLD.
D3.50
B2.
Cable
Accessories
C1.
Wiring
Duct
C3.
Abrasion
Protection
C4.
Cable
Management
D1.
Terminals
D2.
Power
Connectors
E1.
Labeling
Systems
E2.
Labels
E3.
Pre-Printed
& Write-On
Markers
F.
Index
B3.
Stainless
Steel Ties
C2.
Surface
Raceway
E5.
Lockout/
Tagout
& Safety
Solutions
B1.
Cable Ties
A.
System
Overview
D3.
Grounding
Connectors
E4.
Permanent
Identification

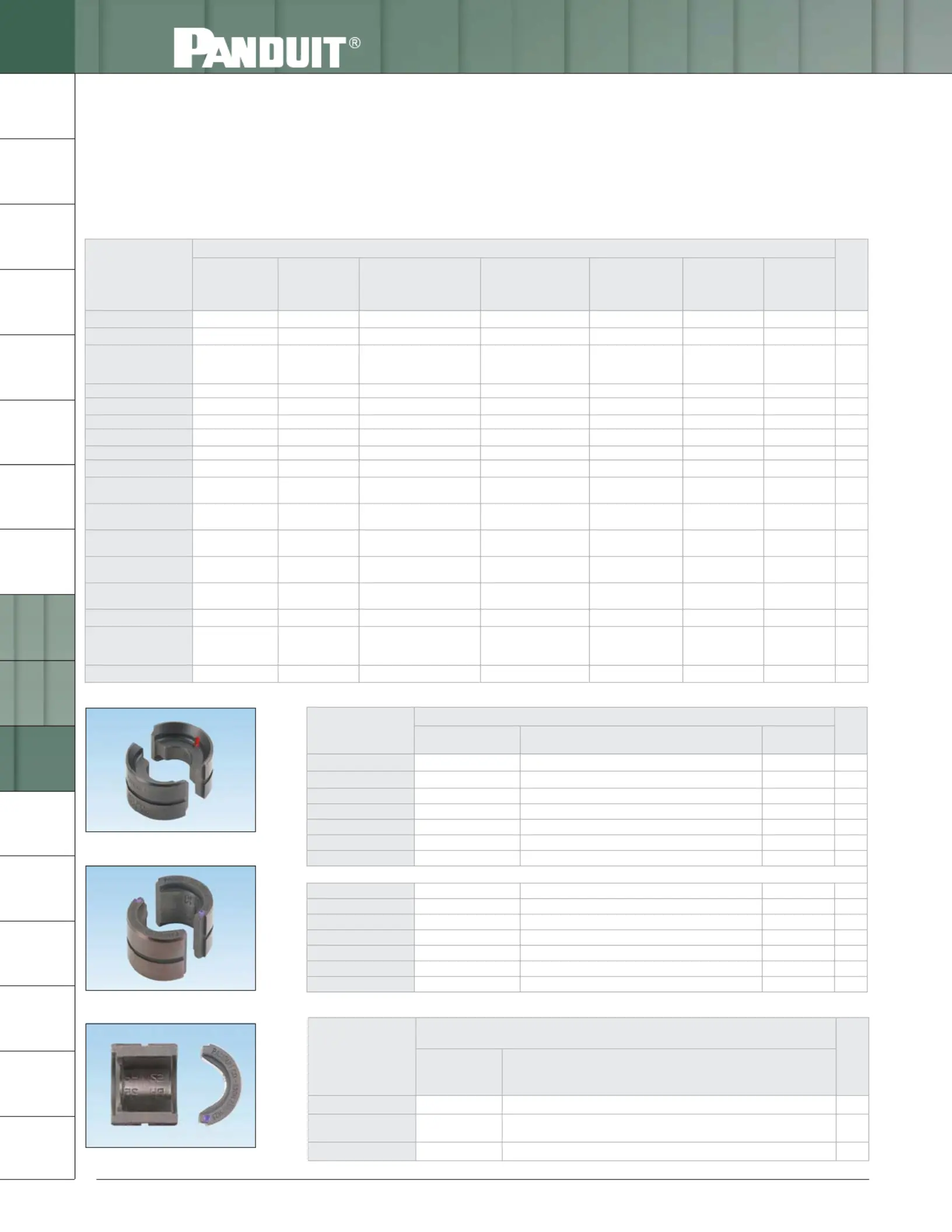

CD-920 Crimping Dies
• Color-coded for easy matching to color-coding marked
on connectors
• Embosses die index number on connector barrels for post
crimp inspection
• Part number permanently marked on crimping die for
easy identification
• Provides circumferential crimp results in terminations with
premium electrical and mechanical performance
CD-930H
CD-920
CD-930G
Part Number
Used to Install Panduit Tap Part Numbers Std.
Pkg.
Qty.
Copper Die Color
and Die No. Copper Tap
No. of
Crimps
CD-920H-6 Orange PH6 HTCT6X-6X-1 1 1
CD-920H-2 Brown PH2 HTCT2-2-1 1 1
CD-930H-250 Purple PH25 HTCT250-2-1, HTCT250-250-1 1 1
CD-920-BG PBG CTAP4-8-L, CTAP4-6-L, CTAP4-4-L 1 1
CD-920-C PC CTAP2-4-Q, CTAP2-2-X 1 1
CD-920-D3 PD3 CTAP4/0-2-X, CTAP4/0-2/0-X, CTAP4/0-4/0-X 1 1
CD-920-O PO CTAP2/0-2-X, CTAP2/0-2/0-X 1 1
Multiple Crimp Dies – Multiple Crimps in One Tool Cycle
CDM-920-2 Brown P33M CTAPF4-12-C 1 1
CDM-920-1 Green P37M CTAPF3-12-C 1 1
CDM-920-1/0 Pink P42M CTAPF2-12-C 11
CDM-920-2/0 Black P45M CTAPF1-12-C 11
CDM-920-3/0 Orange P50M CTAPF1/0-12-L 1 1
CDM-920-4/0 Purple P54M CTAPF2/0-12-Q 1 1
CDM-920-250 Yellow P62M CTAPF3/0-12-Q 1 1
Part Number
Used to Install Panduit Compression Lug and Splice Sizes
Std.
Pkg.
Qty.
Copper
Die Color and
Die No.
Copper
Code
Conductor
Size
Copper Code and Flex
Conductor Size for
LCAX, LCBX
LCDX, LCCX
Copper Flex
Conductor
Size for
LCAF, LCCF, SCSF
Copper Metric
Class 2R
Conductor Size
Aluminum
Die Color and
Die No.
Aluminum
Code
Conductor
Size
CD-920-8 Red P21 #8 AWG #8 AWG #8 AWG 10mm2— — 1
CD-920-6 Blue P24 #6 AWG #6 AWG #6 AWG 16mm2— — 1
CD-920-4 Gray P29 #4 AWG STR
#3 AWG STR
#2 AWG SOL
#4 AWG
#5, #4, #3 AWG
DLO flex
#4 AWG 25mm2
35mm2
Gray P29 #6 AWG 1
CD-920-2 Brown P33 #2 AWG #2 AWG #2 AWG — — — 1
CD-920-1 Green P37 #1 AWG #1 AWG — 50mm2Green P37 #4 AWG 1
CD-920-1/0 Pink P42 1/0 AWG 1/0 AWG #1 AWG — Pink P42 #2 AWG 1
CD-920-2/0 Black P45 2/0 AWG 2/0 AWG 1/0 AWG 70mm2Gold P45 #1 AWG 1
CD-920-3/0 Orange P50 3/0 AWG 3/0 AWG 2/0 AWG — Tan P50 1/0 AWG 1
CD-920-4/0 Purple P54 4/0 AWG 4/0 AWG 3/0 AWG 95mm2Olive P54 2/0 AWG 1
CD-920-250 Yellow P62 250 kcmil 250 kcmil flex
262 kcmil flex
4/0 AWG 120mm2Ruby P62 3/0 AWG 1
CD-920-300 White P66 300 kcmil — 250 kcmil
262 kcmil
150mm2White P66 4/0 AWG 1
CD-920-350 Red P71 350 kcmil 300 kcmil flex
313 kcmil flex
300 kcmil
313 kcmil
— Red P71 250 kcmil 1
CD-920-400 Blue P76 400 kcmil 350 kcmil flex
373 kcmil flex
350 kcmil
373 kcmil
185mm2Blue P76 300 kcmil 1
CD-920-500 Brown P87 500 kcmil 444 kcmil flex
450 kcmil flex
444 kcmil
450 kcmil
240mm2Brown P87 350 kcmil 1
CD-920-600 Green P94 600 kcmil — — 300mm2Green P94 400 kcmil 1
CD-920-500A Pink P99 500 kcmil 500 kcmil flex
535 kcmil flex
600 kcmil flex
500 kcmil
535 kcmil
— Pink P99 500 kcmil 1
CD-920-750 Black P106 750 kcmil — 646 kcmil 400mm2Black P106 600 kcmil 1
Part Number
Used to Install StructuredGround â„¢Direct Burial Grounding
Connector Part Numbers
Std
Pkg.
Qty.
Copper Die
Color and
Die No. Copper Tap
CD-930G-1/0 Red PG10 GCE1/0-1/0, GCC6X61/0-1/0 1
CD-930G-250 Black PG25 GCE250-1/0, GCE250-250, GCC6X6250-1/0, GCC6X6250-250,
GPC4H250-2
1
CD-930G-500 Blue PG50 GCE500-1/0, GCE500-250, GCC6X6500-1/0, GCC6X6500-250 1
