Service Manual
PESMX24030003CE
Version:2401
CONTENTS
1.Specification
2.Parts Identification
3.Wiring Diagram
PAGE
2 ~ 5
Ventilating Fan
1
6
WARNING
This service information is designed for experienced repair technicians only and is not designed for use by
the general public. It does not contain warnings or cautions to advise non-technical individuals of potential
dangers in attempting to service a product. Products powered by electricity should be serviced or repaired
only by experienced professional technicians. Any attempt to service or repair the product or products dealt
with in this service information by anyone else could result in serious injury or death.
IMPORTANT SAFETY NOTICE
There are special components used in this equipment which are important for safety. These parts are
marked by in the Schematic Diagrams, Exploded Views and Replacement Parts List. It is essential
that these critical parts should be replaced with manufacturer's specified parts to prevent shock, fire
or other hazards. Do not modify the original design without the manufacturer’s approval.
.Please have a static electricity depletion process in place before handling these components.
. Please use gloves when handling PCB parts during the repair process.
FV-0511VKS3
4.Parts List 7, 8

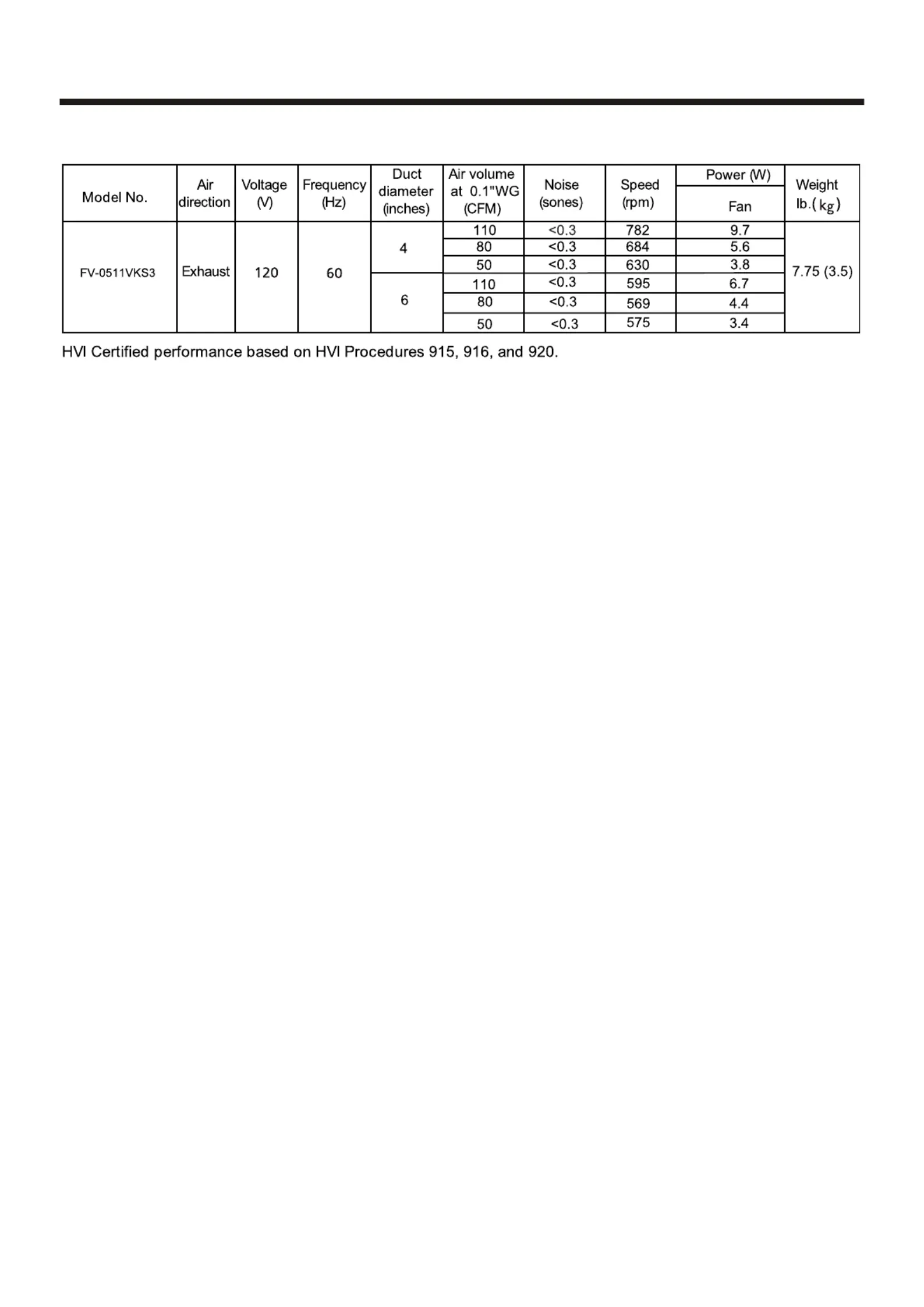

1. Specification
1
2. Parts Identification
Main Body Section
FV-0511VKS3
2
1
2
3
4
5
6C
(3pcs)
A
B
A
A
C
(3pcs)
C
(5pcs)
7
8
9
10
11
12
Power PCB Assy
Main PCB Assy
E
(2pcs)
13
C
