INSTRUCTION MANUAL

DP-100 Series

High-performance Digital DisplayPressure Sensor

WARNING

Thank you very much for using SUNX products. Please read this

Instruction Manual carefully and thoroughly for the correct and optimum

use of this product. Kindly keep this manual in a convenient place for quick

reference.

Never use this product as a sensing device for personnel protection.

In case of using sensing devices for personnel protection, use products

which meet laws and standards, such as OSHA, ANSI or IEC etc., for

personnel protection applicable in each region or country.

Japanese Measurement Laws prohibit the use of this product in Japan.

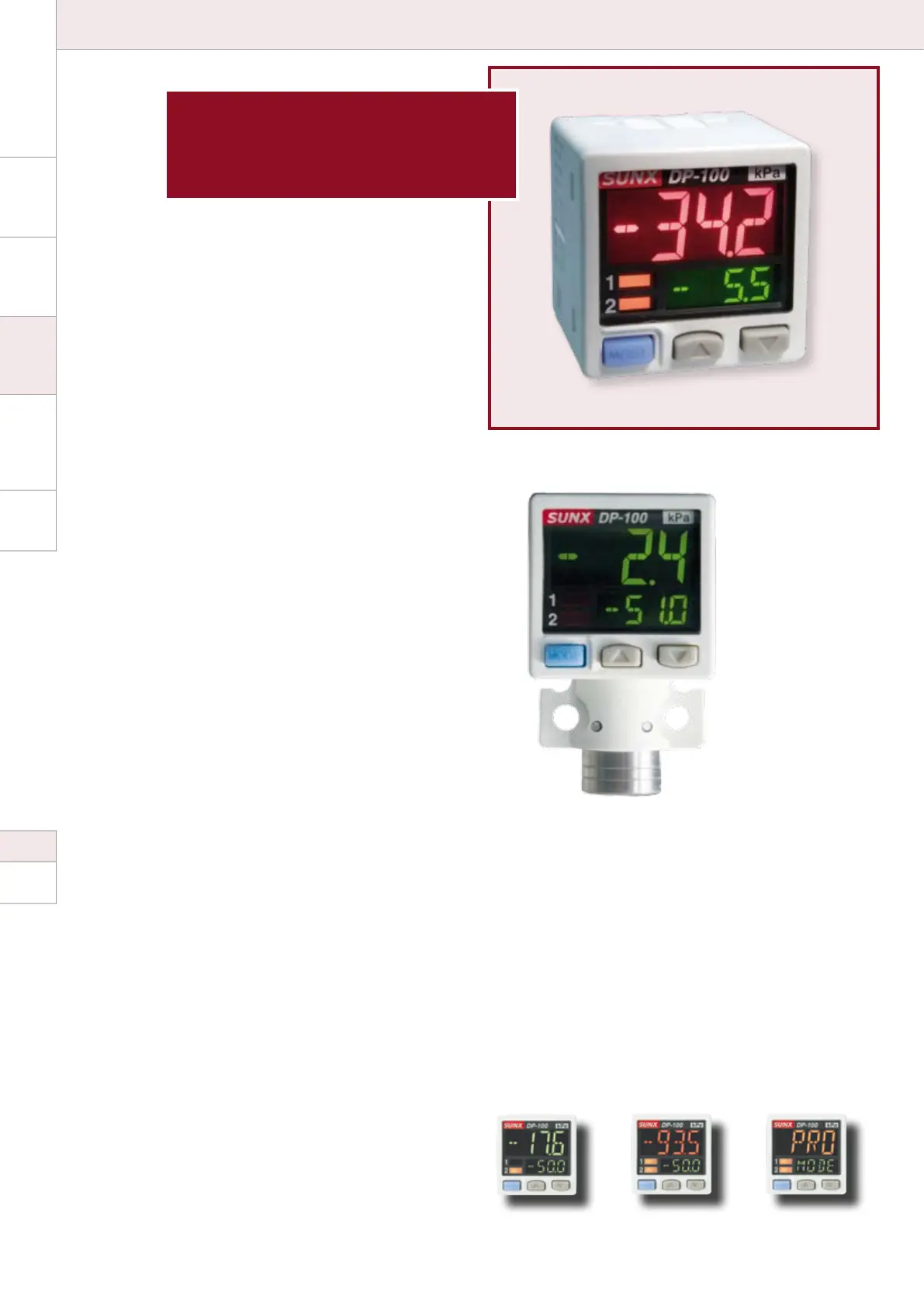

NAMES OF EACH PART1

Connection

connector

DP-100

type: R

㧛

+ M5 female screw

DP-100-E

type: G

㧛

+ M5 female screw

DP-100-N

type:

NPT

㧛

+ M5 female screw

Pressure port

㧝

DP-100

Main display

Sub-display

Setting value

DOWN key

Setting value UP key

٨When connecting a commercial coupler to the pressure port, attach a

12mm spanner (14mm for type) to the pressure port's hexa-DP-100-E

gon section to fix the port, and then tighten with a tightening torque of

9.8N䊶m or less. The commercial coupler or pressure port section will be

damaged if the tightening torque is excessive.

Wrap sealing tape around the coupler when connecting to prevent leaks.

PIPING2

Standard type:

Lights up when compa-

rative

output 2 is ON

High-function type:

Lights up when analog

voltage output is set

Output 2 / analog

voltage output oper-

ation indicator

Lights up when compa-

rative output 1 is ON

Output 1 operation

indicator

Mode selection key

MJE-DP100 No.6091-00

12mm spanner

MOUNTING3

٨The sensor mounting bracket (MS-DP1-1)is available as an option.

When mounting the sensor onto the sensor mounting bracket, etc., the

tightening torque should be 1.2N m or less.䊶

Sensor mounting bracket

MS-DP1-1 (Optional)

M3 (length 6mm) screws

with washers

(Accessory with MS-DP1-1)

٨The panel mounting bracket (optional) and front coverMS-DP1-2

MS-DP1-3 (optional) are also available as options.

Front cover

MS-DP1-3 (Optional)

(Unit: mm)

Panel cut-out size

Panel mounting bracket

MS-DP1-2 (Optional)

M3 (length 12mm) pan head

screw

(Accessory with MS-DP1-2)

For use outside Japan

Connection method

Disconnection method

Note: Do not pull by holding the cable without pressing the release lever, as this can

cause cable break.

Insert the cable with connector CN-14A-Cغ

into this product's connection connector

section as shown in the right figure.

٨Pressing the release lever of the cable

with connector, pull out the cable.

WIRING4

Cable with connector

CN-14A-Cغ

Release lever

Ԙ ԙ Ԛ ԛ

㧝

Connector pin No.

Terminal name

+VԘ

Comparative output 1ԙ

Standard type: Comparative output 2

High-function type: Analog voltage output or external input

0Vԛ

Contact: SPHD-001T-P0.5

Housing: PAP-04V-S

[JST Mfg. Co., Ltd.]

Standard type

Users' circuitInternal circuit

_12 to 24V DC

±10%

(Black)

Comparative output 1

Main circuit

(White) Comparative output 2

(Blue) 0V

100mA max.

Load

Main circuit

High-function type

Users' circuitInternal circuit

_12 to 24V DC

±10%

(White)

Analog voltage output

or external input

(Black) Comparative output 1

(Blue) 0V

100mA max.

1kΩ

Load

PNP output type

Standard type

Main circuit

Users' circuitInternal circuit

_12 to 24V DC

±10%

(Black) Comparative output 1

(White) Comparative output 2

(Blue) 0V

100mA max.

Load

NPN output type

When using the analog voltage output, take care to the input impedance of

the connected device.

Furthermore, note that if the cable is extended, the cable resistance will

cause the voltage to drop.

I/O CIRCUIT DIAGRAMS5

High-function type

Main circuit

(Black) Comparative output 1

Users' circuitInternal circuit

_12 to 24V DC

±10%

(Blue) 0V

(White)

Analog voltage output

or external input

1kΩ

100mA max.

Load

(Brown)㧗V

Color code of cable with connector

(Brown)㧗V

Color code of cable with connector

(Brown)㧗V

Color code of cable with connector

(Brown)㧗V

Color code of cable with connector

OUTPUT MODE AND OUTPUT OPERATION6

Notes:1)

2

Hysteresis can be fixed in 8 steps.

Refer to < > in ' ' for setting.Hysteresis fixed value selection  PRO MODE

' ' is displayed for comparative output 1 and ' ' for comparative output 2.

٨ON / OFF of the comparative output is controlled in this mode.

EASY mode

H (Hysteresis)

H Hysteresis fixed (Note 1)㧦

OFF

Comparative

output

Pressure

The EASY mode, hysteresis mode or window comparator mode can be

selected as the output mode for comparative output 1 and comparative

output 2.

Refer to 'Comparative output 1/2 output mode setting' in ' MENU

SETTING MODE' for details.

SETTING

RUN MODE

This is the pressure detection state.

Refer to ' '.RUN MODE

MENU SETTING MODE

This is the setting mode for simple

setting.

Refer to ' '.MENU SETTING MODE

PRO MODE

This is the setting mode for

detailed setting.

Refer to ' PRO MODE

Press for 2 sec.

MODE

Press for 4 sec.

MODE

٨The comparative output ON / OFF state can be controlled with randomly

set hysteresis in this mode.

Hysteresis mode

OFF

Comparative

output

H (Hysteresis)

Pressure

٨I

n this mode, the ON or OFF state of the comparative output is controlled

with a pressure in the set range.

Window comparator mode

H (Hysteresis)

H Hysteresis fixed (Note 1)㧦

H (Hysteresis)

Comparative

output

OFF

Pressure

Note:

' ' or ' ' is displayed for comparative output 1 and ' ' or ' ' for

comparative output 2.

H: 1 digit or more

2 digits or more when

using psi unit

Notes:1)

2

Hysteresis can be fixed in 8 steps.

Refer to in ' ' for setting.< Hysteresis fixed value selection> PRO MODE

' ' or ' ' is displayed for comparative output 1 and ' ' or ' ' for

comparative output 2.

Comparative output 1 output mode: ' ' (Hysteresis mode) or

' '

(Window comparator mode)

Comparative output 2 output mode: ' ' (OFF)

Comparative output 1 output mode: ' ' (Hysteresis mode) or

' '

(Window comparator mode)

Comparative output 2 output mode: ' ' (EASY mode)

RUN MODE8

Setting the threshold value

Refer to 'Comparative output 1/2 output

mode setting Analog voltage output / ' and '

external input selection' in ' MENU SET-

TING MODE' for setting conditions.

࡮Standard type

Comparative output 1 output mode: ' ' (EASY mode)

Comparative output 2 output mode: ' ' (OFF)

Comparative output 1 output mode: ' ' (EASY mode)

Comparative output 2 output mode: ' ' (Hysteresis mode) or

' '

(Window comparator mode)

Comparative output 1 output mode: ' ' (EASY mode)

Comparative output 2 output mode: ' ' (EASY mode)

Note: If the set pressure range is exceeded, ' ' (exceeds the upper limit) or ' '

(exceeds the lower limit) will appear on the sub-display.

' ' will also appear if the Hi side threshold value exceeds the Lo side threshold

value when setting the ' hysteresis mode / window comparator mode ' threshold value.

Comparative output 1 output mode: ' ' (Hysteresis mode) or

' '

(Window comparator mode)

Comparative output 2 output mode: ' ' (Hysteresis mode) or

' '

(Window comparator mode)

DP-100

Since only the sub-display changes in the threshold setting, the following

shows only the sub-display.

MODE

Automatic

MODE

Automatic

MODE

Automatic

MODE

MENU SETTING MODE9

When the mode selection key is held down for two seconds in the

RUN mode, the menu setting mode will open.

The mode will change to the RUN mode when the mode selection key

is held down during this setting process.

The leftmost setting items are the default settings (factory settings).

Setting item Description

Comparative output 1

output mode setting Sets the output operation of comparative output 1.

Comparative output 2

output mode setting

(Standard type only)

Sets the output operation of comparative output 2.

Pressure unit can be changed.

Response time setting

Sets the response time.

The response time can be selected from 2.5ms, 5ms, 10ms, 25ms, 50ms,

100ms, 250ms, 500ms, 1,000ms or 5,000ms.

Displayed color of the

main display selection Displayed color of the main indicator can be changed.

Unit selection

N.O. / N.C. selection Normal open (N.O.) or normal close (N.C.) can be selected.

Analog voltage output /

external input selection

(High-function type

only)

Selects analog voltage output, auto-reference input, or remote zero-ad-

justment input.

Notes: 1)

If the comparative output 2 output mode setting is set to ' ', the display of

N.O. / N.C. selection is the same as the high-function type.

The default setting of the high pressure type is ' ', and that of the low pressure type is ' '.

The default setting of the low pressure type is ' '. ' ' is not displayed.

This is not displayed on the high-pressure type.

࡮Standard type

࡮High-function type

(OFF mode)

<Comparative output 2 output mode setting> (Note 1)

(EASY mode)

(2.5ms) (5ms) (5,000ms)

MODE

(N.O.) (N.C.)

<N.O. / N.C. selection> (Note 2)

MODE

࡮࡮࡮࡮࡮

࡮࡮࡮࡮࡮࡮࡮࡮࡮࡮

MODE

 MPa (Note 3) (kPa) (bar)

(mmHg)

(inchHg)(Note 4) (psi)

(kgf/cm2)

Hysteresis

mode

Window

comparator

mode

Analog

voltage

output

Remote

zero-adjust-

ment input

(EASY mode)

Hysteresis

mode

<N.O. / N.C. selection> (Note 1) (Note 2)

Output 1: N.O.

Output 2: N.O.

Output 1: N.C.

Output 2: N.O.

Output 1: N.O.

Output 2: N.C.

Output 1: N.C.

Output 2: N.C.

Window

comparator

mode

࡮Standard type

࡮High-function type

Press for 2 sec.

MODE

Red when ON

Green when OFF

Red when ON

Green when OFF

(Always red)

(Always green)

Auto-refer-

ence input

࡮High-function type

࡮Common

Comparative output 1 output mode: ' ' (EASY mode)

Analog voltage output / external input selection: ' ' (Analog voltage output)

Comparative output 1 output mode: ' ' (Hysteresis mode) or

' ' (Window comparator mode)

Analog voltage output / external input selection: ' ' (Analog voltage output)

٨The zero-adjustment function forcibly sets the pressure to 'zero' when

the pressure port is opened.

Zero-adjustment function

٨The key lock function prevents key operations so that the conditions set

in each setting mode are not inadvertently changed.

Key lock function

Hold

down

Hold

down

Hold

down

(Key lock set)

MODE

(Key lock released)

The peak / bottom hold functions display the peak value and bottom val-

ue of the fluctuating pressure.

The peak value is displayed on the main display and the bottom value is

displayed on the sub-display.

Peak / bottom hold function

MODE

Hold

down

Comparative output 1 output mode: ' ' (EASY mode)

Analog voltage output / external input selection: ' ' (Auto-reference input) or

' '

(Remote zero-adjustment input)

Comparative output 1 output mode: ' ' (Hysteresis mode) or

' ' (Window comparator mode)

Analog voltage output / external input selection: ' ' (Auto-reference input) or

' '

(Remote zero-adjustment input)

Note: Auto-reference value and remote zero-adjustment value are displayed.

For details, refer to ' ' and ' AUTO-REFERENCE FUNCTION REMOTE

ZERO-ADJUSTMENT FUNCTION '.

12 13

Automatic

Automatic

MODE

(Note)

Automatic

MODE

Blinks alternately

(Note)

Automatic

MODE

Blinks alternately

Produktspezifikationen

Marke:	Panasonic
Kategorie:	Nicht kategorisiert
Modell:	DP-111-E-P-J

Brauchst du Hilfe?

Wenn Sie Hilfe mit Panasonic DP-111-E-P-J benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten

Ihren Namen*

Deine E-Mail*

Schreiben Sie hier Ihre Frage

Bedienungsanleitung Nicht kategorisiert Panasonic

Panasonic ER-CFC1 Bedienungsanleitung

27 September 2024

Panasonic RP-SDW48GE1K Bedienungsanleitung

15 September 2024

Panasonic Diagnostec EW-BU30 Bedienungsanleitung

10 September 2024

Panasonic DMW-XLR2 Bedienungsanleitung

5 September 2024

Panasonic C-D535AF Bedienungsanleitung

5 September 2024

Panasonic ES-WM31 Bedienungsanleitung

5 September 2024

Panasonic NC-30EP Bedienungsanleitung

5 September 2024

Panasonic NC-22HP Bedienungsanleitung

5 September 2024

Panasonic VariCam AU-VCVF20G Bedienungsanleitung

5 September 2024

Panasonic NH-EH90JD1WA Bedienungsanleitung

5 September 2024

Bedienungsanleitung Nicht kategorisiert

Neueste Bedienungsanleitung für -Kategorien-

DAS Audio AX-112-5 Bedienungsanleitung

16 Oktober 2024

Ferplast Ergocomfort Freetime Bedienungsanleitung

16 Oktober 2024

AEG MECK52 Bedienungsanleitung

16 Oktober 2024

Makita UR012G Bedienungsanleitung

16 Oktober 2024

Stihl HT 70 Bedienungsanleitung

16 Oktober 2024

Ernesto H14270 Bedienungsanleitung

16 Oktober 2024

IFM AC901S Bedienungsanleitung

16 Oktober 2024

Nedis RFPOM120FBK Bedienungsanleitung

16 Oktober 2024

AEG E9KLCS01 Bedienungsanleitung

16 Oktober 2024

ART ProChannel II Bedienungsanleitung

16 Oktober 2024
