Seite 1/6

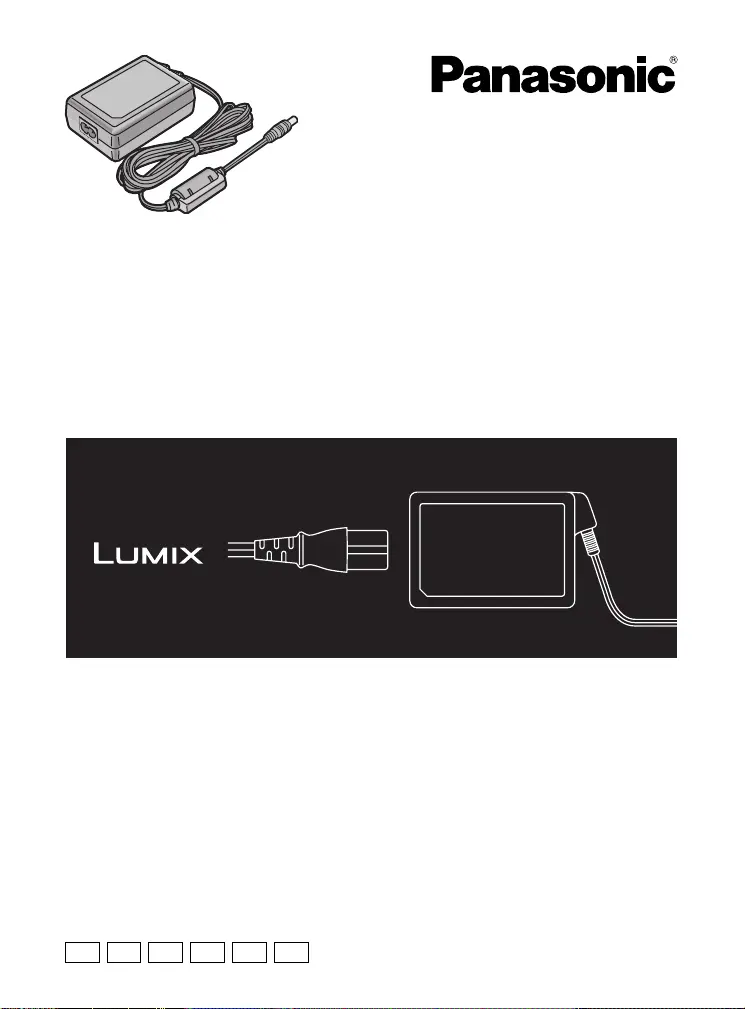

Operating Instructions
Bedienungsanleitung
Manuel d’utilisation
Instrucciones de Funcionamiento
Istruzioni per l’uso
使用說明書
使用说明书
사용 설명서
Инструкция по эксплуатации
AC Adaptor
Model No. DMW-AC7
VQT0W66
Before attempting to connect, operate or adjust this product, please read
these instructions thoroughly, and keep them for future reference.
In these operating instructions, the method for connection with the digital
camera DMC-FZ7 is described as an example.
Please refer to the operating instructions of the digital cameras recommended
for use with this product.
在連接、操作或調節本產品之前,請完整閱讀本說明書,並妥善保管以備日後
參考。在本使用說明書中,示例描述的為使用相機 的連接方法。 DMC-FZ7
有關使用本產品的資訊,請參閱推薦的數位相機的使用說明書。
在连接、操作或调节本产品之前,请完整阅读本说明书,并妥善保管以备日后
参考。在本使用说明书中,示例描述的是使用相机 的连接方法。 DMC-FZ7
要使用本产品,请参阅推荐的数码相机使用说明书。
EB GN GC GK GDEG
2
VQT0W66
Information for Your Safety
As this equipment gets hot during use,
operate it in well ventilated place; do not
install this equipment in a confined space
such as a bookcase or similar unit.
AC Adaptor
The rating plate is on the underside of
the AC Adaptor.
Caution for AC mains lead
(for U.K.only)
For your safety, please read the following
text carefully.
This appliance is supplied with a moulded
three-pin mains plug for your safety and
convenience. A 5-ampere fuse is fitted in this
plug.
Should the fuse need to be replaced, please
ensure that the replacement fuse has a rating
of 5-amperes and it is approved by ASTA or
BSI to BS1362.
Check for the ASTA mark Ï or the BSI
mark Ì on the body of the fuse.
If the plug contains a removable fuse
cover you must ensure that it is refitted
when the fuse is replaced. If you lose the
fuse cover, the plug must not be used
until a replacement cover is obtained. A
replacement fuse cover can be purchased
from your local Panasonic Dealer.
IF THE FITTED MOULDED PLUG IS
UNSUITABLE FOR THE SOCKET
OUTLET IN YOUR HOME THEN THE
FUSE SHOULD BE REMOVED AND
THE PLUG CUT OFF AND DISPOSED
OF SAFELY.
THERE IS A DANGER OF SEVERE
ELECTRICAL SHOCK IF THE CUT OFF
PLUG IS INSERTED INTO ANY 13-
AMPERE SOCKET.
If a new plug is to be fitted, please
observe the wiring code as shown below.
If in any doubt, please consult a qualified
electrician.
ª
ª
ª
ªª IMPORTANT
The wires in this mains lead are coloured
in accordance with the following code:
Blue: Neutral
Brown: Live
As the colours of the wires in the mains
lead of this appliance may not correspond
with the coloured markings identifying the
terminals in your plug, proceed as follows:
The wire which is coloured BLUE must be
connected to the terminal in the plug
which is marked with the letter N or
coloured BLACK.
The wire which is coloured BROWN must
be connected to the terminal in the plug
which is marked with the letter L or
coloured RED.
Under no circumstances should either of
these wires be connected to the earth
terminal of the three-pin plug, marked with
the letter E or the Earth Symbol Ó.
ª
ª
ª
ªª Before Use
Remove the Connector Cover.
ª
ª
ª
ªª How to replace the Fuse
The location of the fuse differ according to
the type of AC mains plug (figures A and
B).
Confirm the AC mains plug fitted and
follow the instructions below.
Illustrations may differ from actual AC
mains plug.
1) Open the fuse cover with a screwdriver.
2) Replace the fuse and close or
attach the fuse cover.
Fuse cover
Figure A Figure B
Figure A Figure B
Fuse
(5 ampere)
Fuse
(5 ampere)
3
VQT0W66
Information on Disposal for Users of Waste Electrical
& Electronic Equipment (private households)
This symbol on the products and/or accompanying documents
means that used electrical and electronic products should not
be mixed with general household waste.
For proper treatment, recovery and recycling, please take these
products to designated collection points, where they will be
accepted on a free of charge basis. Alternatively, in some
countries you may be able to return your products to your local
retailer upon the purchase of an equivalent new product.
Disposing of this product correctly will help to save valuable
resources and prevent any potential negative effects on human
health and the environment which could otherwise arise from
inappropriate waste handling. Please contact your local
authority for further details of your nearest designated collection
point.
Penalties may be applicable for incorrect disposal of this waste,
in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or
supplier for further information.
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and
ask for the correct method of disposal.
ENGLISH
