Installation Instructions
Einbauanleitung
Instructions d’installation
Installatiehandleiding
Monteringsanvisningar
Istruzioni per l’installazione
Instrucciones de instalación
Installationsanvisninger

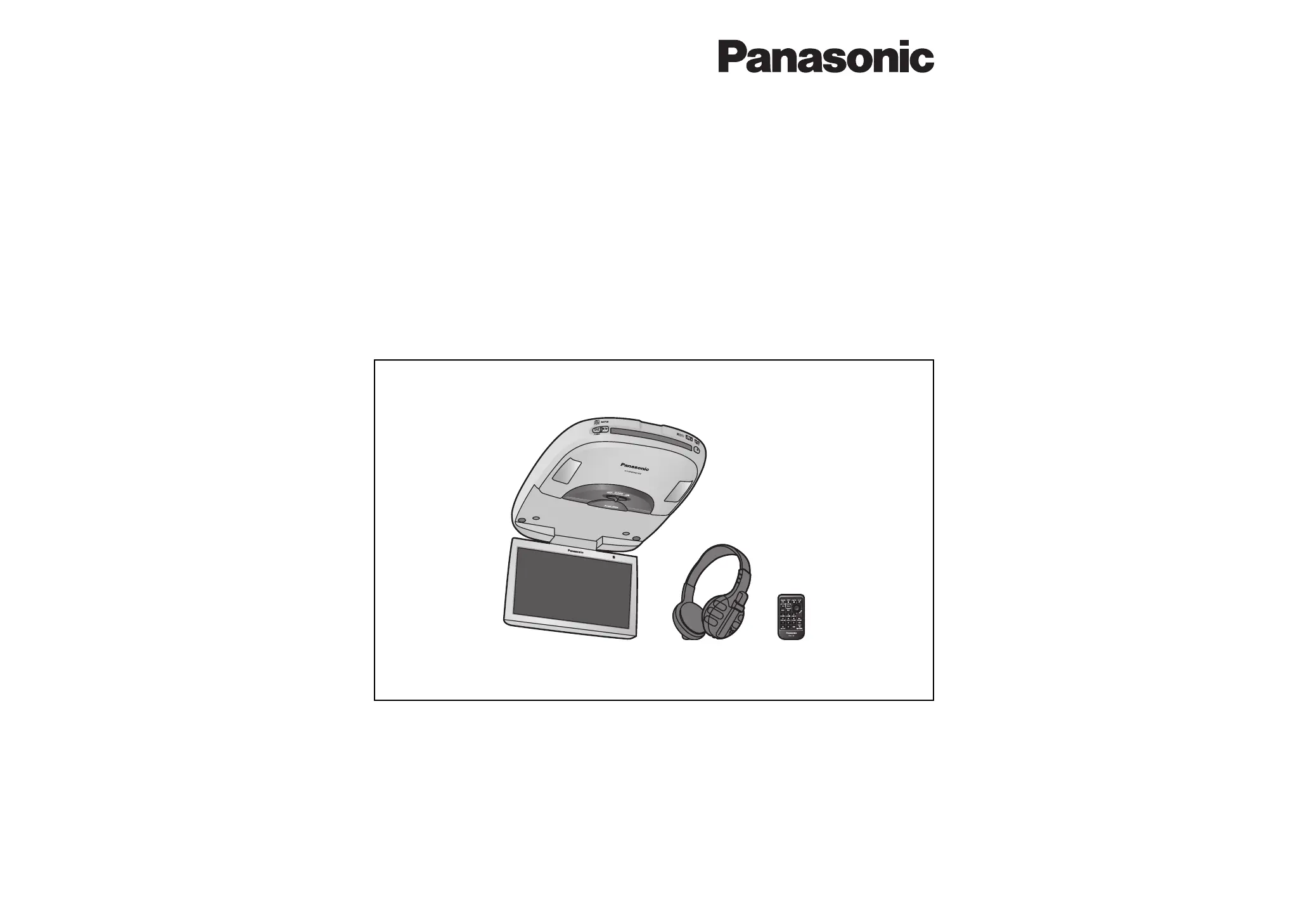

Overhead 9 Widescreen Color LCD Monitor with Built-in DVD Player q
CY-VHD9401N
≥ Please read these instructions carefully before using this product and keep this manual for future reference.
≥ Bitte lesen Sie diese Bedienungsanleitung vor der Verwendung dieses Produktes aufmerksam durch und bewahren Sie sie
danach für spätere Nachschlagzwecke sorgfältig auf.
≥ Prière de lire ces instructions attentivement avant d’utiliser le produit et garder ce manuel pour l’utilisation ultérieure.
≥ Leest u deze instructie alstublieft zorgvuldig door voor u dit product in gebruik neemt en bewaar deze handleiding voor
later gebruik.
≥ Läs igenom denna bruksanvisning noga innan produkten tas i bruk. Spara bruksanvisningen för framtida behov.
≥
Si prega di leggere attentamente queste istruzioni prima di usare questo prodotto e di conservare questo manuale per usi futuri.
≥
Lea con atención estas instrucciones antes de utilizar el producto y guarde este manual para poderlo consultar en el futuro.
≥
Læs venligst denne brugsvejledning grundigt, inden dette produkt tages i brug og gem den til senere konsultation.
2CY-VHD9401N
E
N
G
L
I
S
H
CY-VHD9401N 3
E
N
G
L
I
S
H
Safety Information
∫ Read the operating instructions for the unit and
all other components of your car audio system
carefully before using the system. They contain
instructions about how to use the system in a
safe and effective manner. Panasonic assumes
no responsibility for any problems resulting from
failure to observe the instructions given in this
manual.
Warning
This pictograph intends to alert
you to the presence of important
operating instructions and
installation instructions. Failure to
heed the instructions may result in
severe injury or death.
∫ This manual uses pictographs to show you how to
use the product safely and to alert you to potential
dangers resulting from improper connections
and operations. The meaning of the pictographs
are explained below. It is important that you fully
understand the meanings of the pictographs in
order to use this manual and the system properly.
Caution
This pictograph intends to alert
you to the presence of important
operating instructions and installation
instructions. Failure to heed the
instructions may result in injury or
material damage.
Observe the following warnings when
installing.
q Do not, under any circumstances, install the
product in a place where the driver’s ability to
drive the car or the driver’s fi eld of vision will
be impaired.
Installing the product in a place where it will
interfere with the driver’s fi eld of vision either
in front or behind or in a place where it will
interfere with the driver’s ability to drive the car
may lead to traffi c accidents and/or injury.
q Have a professional technician wire and install
the product.
Professional skill and experience is required
to wire and install the product. Improper
installation could result in failure of safety
equipment resulting in accident and injury.
For safety’s sake, always ask the store from
which you purchased the product to install and
wire it for you.
q Use in DC 12 V grounded vehicles. -
This
product
is only for DC 12 V grounded -
vehicles. It cannot be used in DC 24 V vehicles
(such as large trucks, diesel vehicles designed
for cold climates, etc.).
Using this
product
in such vehicles could cause
fi re or other malfunction.
Warning q Be sure to disconnect the battery’s terminal -
while wiring and installing the product.
Doing the wiring and installation with the
battery’s terminal still connected could cause -
electrical shock and injury due to a short circuit
accidents.
q Install the product securely so that it will not
shift out of place or drop down.
Loose screws or insecure installation may cause
the product to shift out of position or drop
down, etc. while the car is moving, resulting in
an accident and/or injury.
q Do not disassemble, repair or modify the
product.
Do not disassemble, repair or modify the
product, or cut the cord to connect it to the
power supply for another device. This could
cause fi re, electrical shock or other malfunction.
q Never use the car’s safety equipment for
installing or grounding the product.
Using the bolts, nuts and screws of the car’s
safety equipment (steering and brake systems,
fuel tank, etc.) could cause accidents. Follow
the instructions and only use the accessories
provided with the product and the specifi ed
parts.
q Install the product after checking the position
of the car’s pipes, tank and electrical wiring.
When opening holes in the car body to install
the
product
, be careful not to touch or interfere
with the pipes, tank or electrical wiring. Doing
so could cause fi re or accidents.
q Always use the accessories provided with the
product and the specifi ed parts.
Using parts other than those specifi ed could
damage the inside of the product or cause the
product to not be securely fastened and thus
come loose, which could cause accidents,
malfunction or fi re.
q Do not install the product in a location where
it will be subject to heavy vibration or in an
unstable location.
Installing the product in a sloping location or on
a noticeably curved surface, etc. may cause the
product to shift out of position or drop down,
etc. while the car is moving, resulting in an
accident and/or injury.
q Follow the instructions to install and wire the
product.
Failure to follow the instructions to properly
install and wire the product could cause
accidents or fi re.
q Run the cords so that they do not interfere with
driving or with entering or exiting the car.
Run the cords so that they do not wrap around
the steering wheel, gearshift, brake pedal, etc.
or around your legs, and secure all the cords
together. Failure to do so could cause accidents
or injury.
Observe the following warnings when
installing. (Continued)
q Do not install the product in a position where it
will interfere with the operation of the air bag.
The air bag may fail to operate properly or the
main unit or its parts could become dislodged
and end up fl ying through the air by an air bag
which has opened, causing an accident and/or
injury.
q Be sure to use fuses with the prescribed
capacity. Have a professional technician
replace the fuses.
Using fuses that exceed the prescribed capacity
could cause the
product
to start smoking, ignite
or otherwise malfunction. For replacement and
repair of fuses, contact the store from which you
purchased your
product
or a nearby Panasonic
Service Centre.
q Contact your car dealer or manufacturer
to determine the required procedure and
strictly follow their instructions before
attempting installation of this product if your
car is equipped with air bag and/or anti-theft
systems.
Specifi c procedures may be required for
connection and disconnection of the battery
to install this product. Failure to follow the
procedure may result in the unintended
deployment of air bags or activation of the
anti-theft system resulting in damage to the car
and personal injury.
Warning
NO WARRANTY
Panasonic shall have no liability for reduction in safety or any accident caused by installing this
product. We shall not guarantee any auto parts damaged during installation.
4CY-VHD9401N
E
N
G
L
I
S
H
CY-VHD9401N 5
E
N
G
L
I
S
H
Safety Information
(continued)
≥ The main unit weighs approximately 3 k . Be
absolutely sure that the main unit is secured
properly and does not come loose even with
vibration or shock.
≥ Check that there is suffi cient strength in the
ceiling reinforcement crosspieces to hold the
weight of the product.
≥ Check the thickness of the interior materials,
attachment space, etc, refer to the attachment
example (page 40) and determine the base plate
attachment position.
≥ Take care that the base plate or attachment
screws do not pinch cords and wiring. Also take
care not to scratch or damage the ceiling or
other parts of the vehicle.
Observe the following cautions when
using this unit or installing.
q If an RCA or similar cord is to be connected
to the product, adjust its position and length
so that it will not become entangled or come
into contact with your body. After use, be
absolutely sure to disconnect it from the
product.
Failure to heed this caution may result in an
accident and/or injury.
q Before connecting the product with another
device, consult the operating instructions
of the device concerned to ensure that the
product and device will be connected properly.
Incorrect connections may cause accidents
and/or malfunctioning.
Observe the following cautions when
replacing the bulb of the dome light.
≥ Have the dome light replaced by a qualifi ed
specialist.
≥ While you are replacing a bulb, be absolutely
sure to keep the dome light switch at OFF.
Otherwise, you may burn yourself.
≥ The bulb is very hot to touch while it is lighted
and immediately after it has gone off.
≥ Before attempting to replace it, turn the dome
light switch off, wait several minutes and then
check that it cooled off.
≥ Use a bulb with the specifi ed ratings (12 V/5 W).
Do not use any other bulb.
≥ Gripping the bulb with too much force may
break it. Wear fi ngerstalls or use some other
anti-slip method when replacing it.
Caution
Observe the following cautions when
installing.
q Do not damage the cords.
Wire breaks and short circuits can cause
electrical shock or fi re.
Run the cords so that they do not get tangled in
the moving parts (such as the seat rails), screws
or car body.
Do not damage, pull too hard, fold, twist, or
work on the cords. Do not place the cords near
heating appliances or put heavy objects on the
cords.
q Install the monitor in a position where it will
not hit anybody’s head when it opens and
closes.
Failure to heed this caution may result in an
accident and/or injury.
q Take care not to injure your fi ngers with the
power drill or other tool you are using. Also
take care not to damage the wiring near the
ceiling panel.
Failure to heed this caution may result in an
accident, injury and/or malfunctioning.
q Do not poke your fi ngers between the ceiling
and this product.
Failure to heed this caution may result in an
injury and/or malfunctioning of the product.
q Wear gloves for installation work to protect
yourself from injuries.
Failure to heed this caution may result in an
accident and/or injury.
q Take care that the wiring is not pinched or
caught by the base plate attached to the roof
or any other parts.
Failure to heed this caution may result in an
accident and/or injury.
q Before installing the unit, be absolutely sure to
check that the screws do not make any contact
with the ceiling panel.
If some space is required between the base plate
and the unit, attach and adjust the under cover.
For details on installing the under cover, consult
your dealer.
q Wear goggles or protective eyewear to shield
your eyes from airborne metal particles during
drilling.
Failure to heed this caution may result in an
accident and/or injury.
q As you cut the headliner, take care not to cut
your fi ngers. Also take care not to damage any
other areas of the headliner.
Failure to heed this caution may result in an
accident and/or injury.
q When fi tting the product, using the supplied
base plate, please ensure that it is properly
secured to avoid excessive vibration or the
chance of the product coming loose and
causing an accident.
q The metal plate, screws and nuts required to
attach the base plate are not supplied.
The parts required for attaching the product
differ depending on the vehicle type. Consult a
professional technician for more details, and
always have a professional technician wire
and install the product for you.
q Follow local rules and regulations for
installing the unit.
Observe the following cautions for
connections.
≥ To prevent damage to the unit, be sure to follow
the connection diagram.
≥ Do not connect the power connector to the unit
until the wiring is completed.
≥ When connecting stripped wires, be sure to
wrap them securely with electrical tape to
prevent shorts.
≥ Bundle all cables and keep cable terminals free
from touching any metal parts.
Observe the following cautions for
installing the base plate
≥ Do not install the base plate as fi gure on page
38.
One method for installing the main unit is to
use bond or adhesive tape (option) to fi x wood
or plastic (option) to the ceiling panel before
attaching the base plate. However, the main unit
will not be securely installed using this method,
and the bond may separate due to heat from
the vehicle. Shock, impact, vibration or main
unit weight in this situation would be extremely
dangerous.
Safety Information ........... Page 2
Before Installation ................ 34
Safety Installation Diagram ................ 34
Open the Display Unit......................... 35
Close the Display Unit ........................ 35
Display Unit Lateral Angle
Adjustment....................................... 35
Installation Guide................. 36
Supplied Hardware............................. 36
Installation..........................37
Introduction ....................................... 37
Correct Example of Base Plate
Installation ........................................39
Attachment Example
(without the Under Cover)................ 40
Attachment Example
(with the Under Cover)..................... 40
Work Flow.......................................... 41
Installation Procedures ...................... 41
Electrical Connections ........... 48
Wiring Diagram (Simple System)....... 48
Wiring Diagram
(Recommended System).................. 50
Wiring Diagram
(Advanced System) .......................... 52
Contents
Note:
≥ For replacing the bulb of the dome light, please
refer to page 129 in the Operating Instructions.
Produktspezifikationen
| Marke: | Panasonic |
| Kategorie: | Autoradio |
| Modell: | CY-VHD9401N |
Brauchst du Hilfe?
Wenn Sie Hilfe mit Panasonic CY-VHD9401N benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten
Bedienungsanleitung Autoradio Panasonic
6 Oktober 2024
30 September 2024
15 September 2024
30 August 2024
27 August 2024
24 August 2024
18 August 2024
17 August 2024
15 August 2024
4 August 2024
Bedienungsanleitung Autoradio
- Autoradio Clatronic
- Autoradio Sanyo
- Autoradio Manta
- Autoradio Medion
- Autoradio Nedis
- Autoradio Philips
- Autoradio SilverCrest
- Autoradio Sony
- Autoradio Tevion
- Autoradio LG
- Autoradio AEG
- Autoradio Maginon
- Autoradio Technaxx
- Autoradio Denver
- Autoradio ECG
- Autoradio MarQuant
- Autoradio Renkforce
- Autoradio Telefunken
- Autoradio Trevi
- Autoradio Blaupunkt
- Autoradio Grundig
- Autoradio Kenwood
- Autoradio Daewoo
- Autoradio Pyle
- Autoradio Telestar
- Autoradio Aiwa
- Autoradio Auna
- Autoradio Caliber
- Autoradio Lenco
- Autoradio Pioneer
- Autoradio JBL
- Autoradio JVC
- Autoradio Krüger And Matz
- Autoradio Muse
- Autoradio Vieta
- Autoradio Hifonics
- Autoradio Akai
- Autoradio Dual
- Autoradio Hyundai
- Autoradio MT Logic
- Autoradio Orava
- Autoradio Orion
- Autoradio Skoda
- Autoradio Varta
- Autoradio Elta
- Autoradio Sencor
- Autoradio Biltema
- Autoradio OneConcept
- Autoradio Mercedes-Benz
- Autoradio Boston Acoustics
- Autoradio Harman Kardon
- Autoradio Magnat
- Autoradio XOMAX
- Autoradio Parrot
- Autoradio Smart
- Autoradio Alpine
- Autoradio Ford
- Autoradio Volkswagen
- Autoradio Volvo
- Autoradio Opel
- Autoradio MB Quart
- Autoradio Overmax
- Autoradio Rockford Fosgate
- Autoradio Crunch
- Autoradio Pure
- Autoradio NextBase
- Autoradio Norauto
- Autoradio AXTON
- Autoradio Clarion
- Autoradio Mac Audio
- Autoradio Conceptronic
- Autoradio Scott
- Autoradio Audiovox
- Autoradio Becker
- Autoradio ESX
- Autoradio Zenec
- Autoradio VDO
- Autoradio SPC
- Autoradio Roadstar
- Autoradio Tokaï
- Autoradio Audison
- Autoradio Macrom
- Autoradio Phonocar
- Autoradio Xblitz
- Autoradio Autovision
- Autoradio Boss
- Autoradio Hertz
- Autoradio Renault
- Autoradio Fiat
- Autoradio Kicker
- Autoradio Jensen
- Autoradio DLS
- Autoradio Eclipse
- Autoradio Eltax
- Autoradio Emphaser
- Autoradio Focal
- Autoradio Fusion
- Autoradio Ground Zero
- Autoradio Helix
- Autoradio Impulse
- Autoradio Lanzar
- Autoradio Mtx Audio
- Autoradio Naxa
- Autoradio Revo
- Autoradio Rodek
- Autoradio RTO
- Autoradio Sevic
- Autoradio Sirius
- Autoradio Soundstream
- Autoradio Spectron
- Autoradio Stinger
- Autoradio Tamashi
- Autoradio Toxic
- Autoradio Twister
- Autoradio Ultimate
- Autoradio US Blaster
- Autoradio VDO Dayton
- Autoradio Voxx
- Autoradio VW
- Autoradio Watssound
- Autoradio RetroSound
- Autoradio Kunft
- Autoradio Shuttle
- Autoradio Multilaser
- Autoradio Brigmton
- Autoradio Lark
- Autoradio Majestic
- Autoradio SoundMAX
- Autoradio Scion
- Autoradio Raveland
- Autoradio Planet Audio
- Autoradio Adcom
- Autoradio Sendai
- Autoradio Cartronix
- Autoradio Dension
- Autoradio Mystery
Neueste Bedienungsanleitung für -Kategorien-
16 Oktober 2024
16 Oktober 2024
12 Oktober 2024
12 Oktober 2024
8 Oktober 2024
7 Oktober 2024
7 Oktober 2024
5 Oktober 2024
5 Oktober 2024
5 Oktober 2024
