Seite 1/6

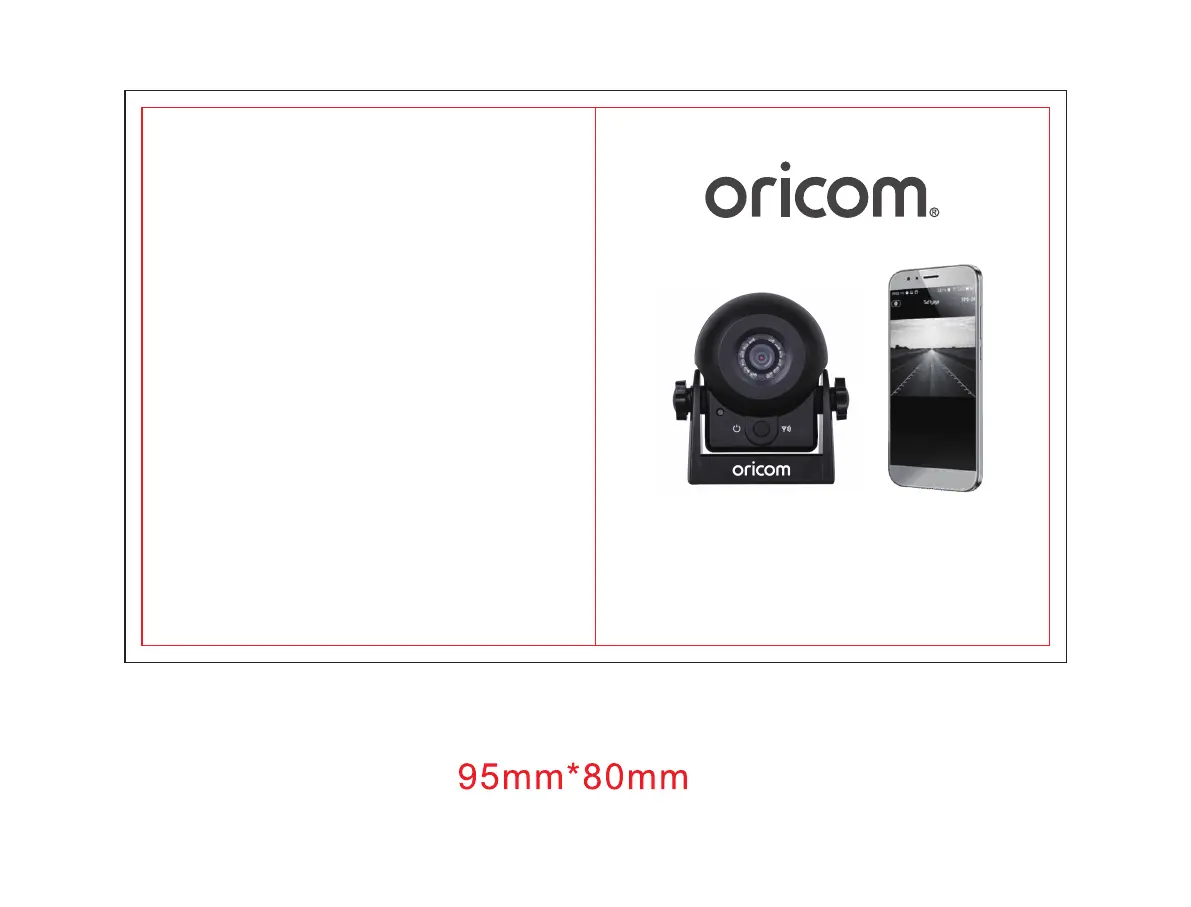

WRC001 Wireless Reversing Camera
with Magnetic Base
User Manual
Smart device not included.
11
Need Help?
If you need assistance setting up or using your Oricom product now or in
the future, call Oricom Support.
Australia (02) 4574 8888
www.oricom.com.au
Mon-Fri 8 am – 6 pm AEST
New Zealand 0800 67 42 66
www.oricom.co.nz
Mon-Fri 10 am – 8 pm NZST
Pack Contents
1 x WRC001 Wireless reversing camera
1 x Magnetic base
1 x USB Charging cable (5V Power Adaptor not supplied)
1 x Velcro mounting tape*
Approx. 4.5h
Operating Current
17.3dBm (53.5mW)
WiFi
Ingress Protection Rating IPX6
Recharge Time
Up to 15m (without obstruction)
2160mAh
Velcro Tape Installation Instructions
*Velcro Tape: 3M™ Dual Lock™ Reclosable Fastener SJ3550
It is strongly recommended that the surface is thoroughly cleaned prior
to application using IPA wipes, you can also use a primer to increase
adhesion further.
Installation temperature should be between 20-27°C, The pressure
sensitive adhesive tape requires a clean dry surface and firm even
pressure (15psi) to ensure good contact with the surface of the substrate
to which it is being applied.
It is advised to wait one hour after tape installation before installing the
camera.
Battery Capacity
Battery Voltage
Max Recharge Current
Transmit Power
Wireless Communication
Format
Wireless Transfer Distance
Key Features:
- View camera feed on FREE App
- Infrared night vision (Black and white image)
- Colour daytime view
- Waterproof IPX6
- Up to 15m Range
- USB Charging
- Included Velcro for Flexible Mounting Position.
To use the WRC001 Wireless Camera on your
Android powered smart device, scan the below QR
code, or search: safetycam
Scan here to download App from
Google Play store
Instructions for using the safetycam App:
Choose SONIX device and press confirm.
A full recharge will take approximately 4.5 hours.
To charge the camera, connect the supplied charging
cable to a suitable 5V Power Adaptor. When connected
and charging, a RED LED will illuminate to show charge
in process.
NOTE: If connection between the wireless camera and
the smart device has been successful, you will now
see the camera feed on screen.
1) Once the installation of the app has
occured, open the application on the
smart device.
2) The ON/OFF Button on the camera
can now be pressed to turn the
device on.
3) Once powered on, the blue light on
the front of the camera will illuminate.
Once you have seen the blue light,
and the App is open on your smart
device, the screen on the right will
appear on first use:
Android Platform Instructions Android Platform Instructions
Icons displayed in the App KEY
Wi-Fi set up
Flip image right and left
Click here to take a picture
Saved images
Turn on/ off grid distance lines
