iConverter CWDM/X 4 and 8 Channel MUX/DEMUX
USER MANUAL
Product Overview
Omnitron’s iConverter CWDM/X Coarse Wave Division
Multiplexing (CWDM) Multiplexer/Demultiplexer
(MUX/DEMUX) modules support ITU-T G.694.2
wavelengths between 1270nm to 1610nm in 20nm
increments.
The iConverter CWDM/X modules are available in 4
and 8-Channel models, supporting a variety of wavelengths and optional port
conîš¿gurations. Up to 16 channels are supported by combining two 8-Channel
CWDM/X modules with a Band Splitter. For more information, access Omnitron’s
web page to view all relevant documents:
http://www.omnitron-systems.com/cwdm_multiplexers.php
Port Deîš¿nitions
4-Channel 8-Channel

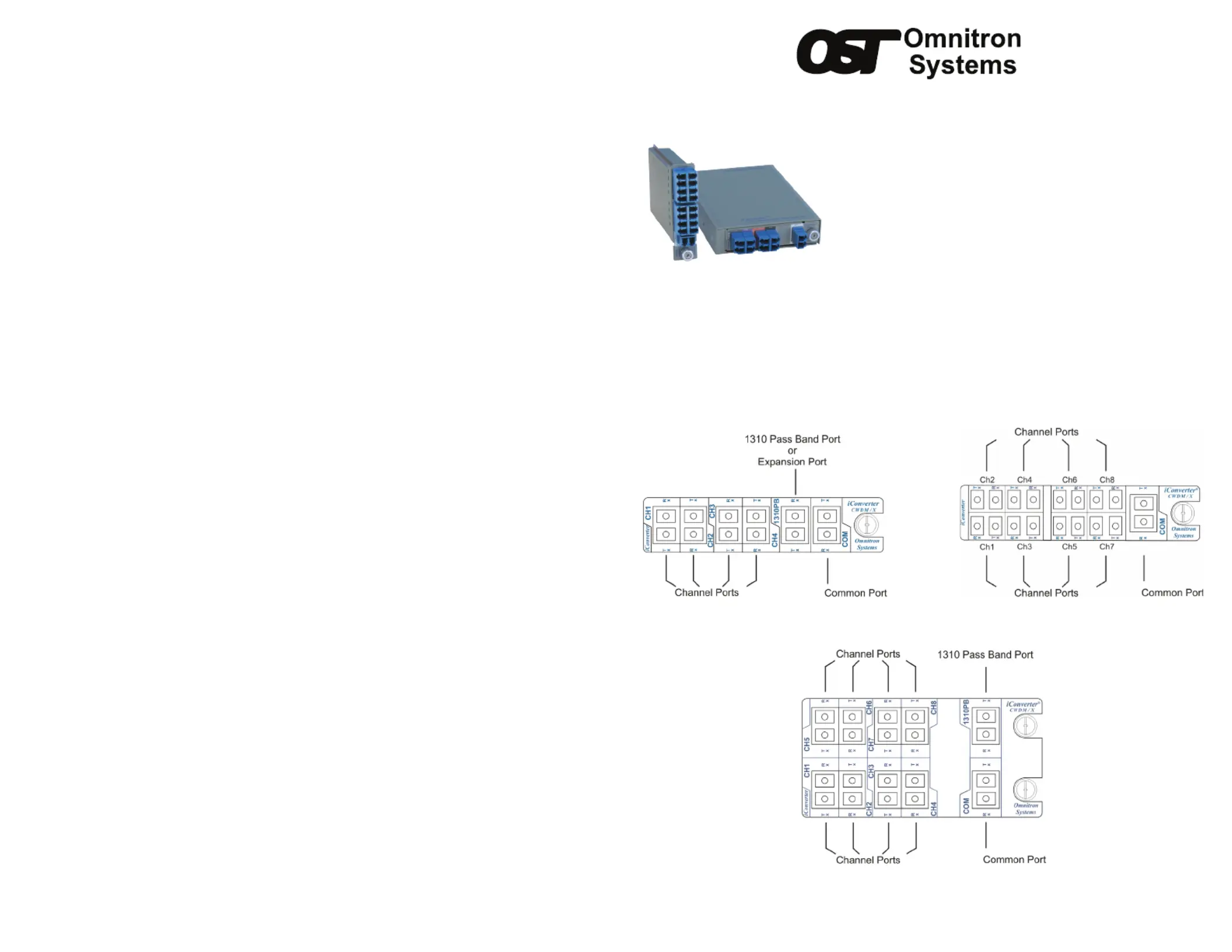

Figure 1: Port Locations for 4-Channel and 8-Channel CWDM/X Module
Figure 2: Port Locations for 8-Channel Double-Wide CWDM/X Module
Design Considerations
iConverter CWDM/X modules are passive devices that require no external power.
Attenuation (signal loss) of less than 2.7dB will be realized through each port on the
module (see the CWDM/X Data Sheet for exact loss speciîš¿cation for each model).
Detailed calculations should be performed for each îš¿ber optic link in the network to
ensure the proper optical devices are speciîš¿ed with sufîš¿cient transmitter power.
When calculating optical loss, ensure that the total loss, plus a safety factor (typically
3dB) does not exceed the optical power budget. The optical power budget is the
difference between the transmitter optical output power and the receiver’s optical
sensitivity. The transmitter optical output power and receiver optical sensitivity values
can be obtained from the manufacturers of the respective equipment. Please consult
the iConverter data sheets for CWDM/X signal loss speciîš¿cations.
For more information, access Omnitron’s documentation download web page to
view all relevant documents:
http://www.omnitron-systems.com/downloads.php
Warranty
WARNING
The operating description in this Instruction Manual is for use by qualiîš¿ed personnel only. To avoid electrical shock, do not perform any
servicing of this unit other than that contained in the operating instructions, unless you are qualiîš¿ed and certiîš¿ed to do so by Omnitron
Systems Technology.
Warranty
This product is warranted to the original purchaser against defects in material and workmanship for a period of ONE YEAR from the date
of shipment. You may register your product on the Internet at http://www.omnitron-systems.com. During the warranty period, Omnitron
will, at its option, repair or replace a product which is proven to be defective.
For warranty service, the product must be sent to an Omnitron designated facility, at Buyer’s expense. Omnitron will pay the shipping
charge to return the product to Buyer’s designated US address using Omnitron’s standard shipping method.
Limitation of Warranty
The foregoing warranty shall not apply to defects resulting from improper or inadequate use and/or maintenance of the equipment by
Buyer, Buyer-supplied equipment, Buyer-supplied interfacing, unauthorized modiîš¿cations or tampering with equipment (including removal
of equipment cover by personnel not speciîš¿cally authorized and certiîš¿ed by Omnitron), or misuse, or operating outside the environmental
speciîš¿cation of the product (including but not limited to voltage, ambient temperature, radiation, unusual dust, etc.), or improper site
preparation or maintenance.
No other warranty is expressed or implied. Omnitron speciîš¿cally disclaims the implied warranties of merchantability and îš¿tness for any
particular purpose.
Exclusive Remedies
The remedies provided herein are the Buyer’s sole and exclusive remedies. Omnitron shall not be liable for any direct, indirect, special,
incidental, or consequential damages, whether based on contract, tort, or any legal theory.
040-08860-001D 9/13
Page 1
Omnitron Systems Technology * 38 Tesla * Irvine, CA 92618
949.250.6510 tel * 949.250.6514 fax * www.omnitron-systems.com
Channel Port
The Channel Ports transmit and receive signals on speciîš¿c CWDM wavelengths. The
Channel Ports are multiplexed onto and demultiplexed from the Common Port.
Common Port
The Common Port (COM) transmits and receives the aggregated wavelengths
connected to the Channel, Expansion and 1310 Pass Band Ports.
1310 Pass Band Port
The 1310 Pass Band Port (1310PB) allows a legacy 1310nm signal to pass through
the CWDM/X module on a reserved band (1260nm to 1360nm). The port can be
used to combine an existing legacy 1310nm network with up to 8 CWDM channels,
allowing the CWDM channels in the range of 1470nm to 1610nm to be overlaid
on the same îš¿ber pair as the existing 1310nm network. Figure 3 illustrates two
CWDM/X modules with the 1310 Pass Band Port option.
COMMON
1470
1490
1590
1610
1310 PB
8860-1
1470
1490
1590
1610
1310 PB
8860-1
Figure 3: 4-Channel MUX/DEMUX
Expansion Port
The Expansion Port (EXP) enables the cascading of two CWDM/X modules as
shown in Figure 4. On models 8860-2 and 8860-3, the Expansion Port can also
be used as a 1550nm Pass Band Port to transport legacy 1550nm single-mode
trafîš¿c as long as the spectral width of the1550nm legacy network is between 1510
and 1570nm.
1510
1530
1550
1570
EXP
COMMON
1470
1490
1590
1610
1310 PB
8860-2
8861-0
1510
1530
1550
1570
EXP
1470
1490
1590
1610
1310 PB
8860-2
8861-0
COM COM
Figure 4: Two Cascaded 4-Channel MUX/DEMUX
Only the 4-Channel CWDM/X module is available with an optional Expansion
Port.
8-Channel CWDM/X MUXes require the use of the Band Splitter (8865-0) to multiplex
16 channels over the Common Port.
Page 2
Installation
1. Carefully slide the module into an open slot in an iConverter chassis. Align
the module with the installation guides and ensure that the module is îš¿rmly
seated against the backplane. Secure the module by fastening the front panel
thumbscrew(s) (push in and turn clockwise to tighten) to the chassis front.
The CWDM/X module requires no external power, however, if management is
required, the module must be installed in an powered chassis with iConverter
a Network Management Module (NMM2 Model 8000N-0) or a media converter
with integrated management (such as the 10/100M2)*.iConverter
2. Connect a single-mode, dual îš¿ber duplex LC cable between the Channel Port of
the CWDM/X module and the attached device. It is important to ensure that the
wavelength of the CWDM/X matches the wavelength of the attached device.
Connect all Channel Ports in this manner. Ensure that the transmit (Tx) is
attached to the receive side of the device at the other end, and the receive (Rx)
is attached to the transmit side.
3. Connect a single-mode, dual îš¿ber duplex LC cable between the Common Ports
on the CWDM/X modules (this connection may be made through îš¿ber patch
panels since the modules may not be co-located). Ensure that the transmit (Tx)
is attached to the receive side of the device at the other end, and the receive
(Rx) is attached to the transmit side.
4. When cascading two 4-Channel CWDM/X modules, connect a single-mode,
dual îš¿ber duplex LC cable between the Common Port on one CWDM/X module
and the Expansion Port on the other CWDM/X module (see Figure 5). Ensure
that the transmit (Tx) is attached to the receive side of the device at the other
end, and the receive (Rx) is attached to the transmit side.
5. When overlaying a CWDM channel on an existing 1310nm legacy network,
connect the single-mode, dual îš¿ber duplex LC cable from the legacy network
to the 1310 Pass Band Port on the CWDM/X module. Ensure that the transmit
(Tx) is attached to the receive side of the device at the other end, and the
receive (Rx) is attached to the transmit side.
NOTE: The iConverter CWDM/X modules can not be installed in slots 4, 8, 12 and
16 of a 19-Module Chassis or in the top slot of a 2-Module Chassis or in a 1-Module
Redundant Power Chassis.
NOTE: The iConverter 8-Channel Double-Wide CWDM/X can only be installed
in a 2-Module Chassis or 19-Module Chassis with the exception of slots 4/5, 8/9,
12/13 and 16/17.
*For complete management functionality, use M2 series (NMM2, GX/TM2, 2GXM2.
10/100M2, 2FXM2) or higher.
Page 3
