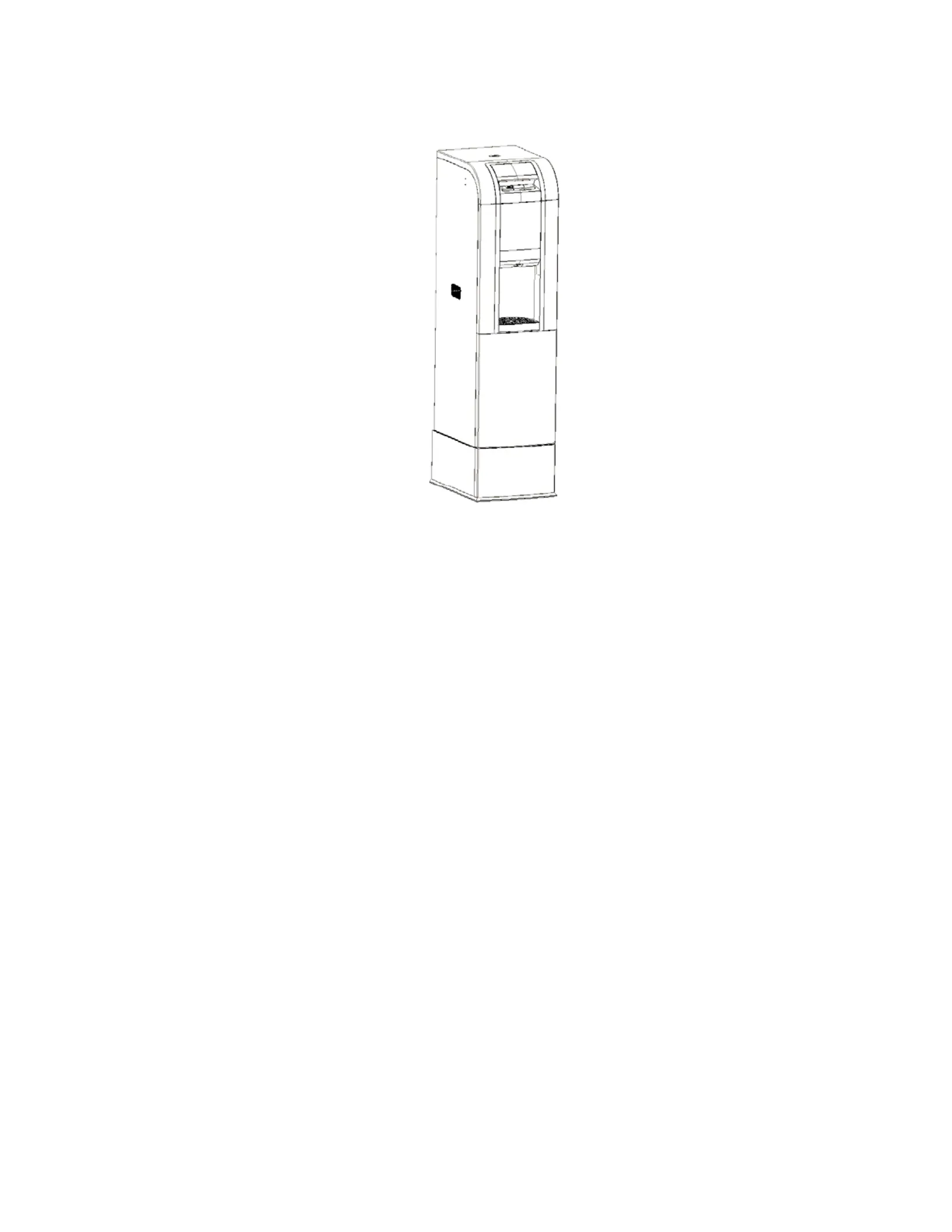

Use & Care Guide
Premium Point-of-Use Water
Cooler
AQUABAR 2
Table of Contents
Use & Care Guidelines & Features ........................................................ 2
Electrical Power Requirements .............................................................. 3
Leak controller instructions .................................................................... 3
Filter Installation .................................................................................... 4
First Use set-up procedure/Programming the LCD display.................... 5
ď‚· Setting the Clock ...................................................................... 6
ď‚· Setting hot and cold temperature .............................................. 6
ď‚· Setting Energy Saver mode ...................................................... 6
ď‚· Setting filter life monitor .......................................................... 7
ď‚· Setting UV bulb life monitor .................................................... 7
ď‚· Hot booster mode ..................................................................... 8
ď‚· Locking the display controls .................................................... 8
Control Panel Quick Reference Guide ................................................... 8
Cleaning instructions .............................................................................. 8
Sanitizing instructions .......................................................................... 10
Servicing the cooler .............................................................................. 11
Troubleshooting the cooler ................................................................... 13
Troubleshooting the leak controller ...................................................... 14
Warranty ............................................................................................... 15
2
Installing the Water Cooler
Determine the best installation location. Consider customer preference, electrical outlet, and cold water line access.
WARNING: A pressure regulator must be installed in front of the unit’s water inlet if the water pressure (including any
possible pressure spikes) could exceed 100 psi (690 kPa). Failure to comply will void the warranty. The manufacturer
accepts no liability for damage caused by excessive water pressure. Do not use with water that is microbiologically unsafe
or of unknown quality without adequate disinfection before or after the system.
Unit should be within 15 feet (4.6m) of the source water supply and if applicable, other point-of-use systems. Leave about
four inches (10 cm) between water cooler and wall. Do not place near an open flame, radiator or heat source. The water
cooler is not recommended for outdoor use.
Dual Switch Float System
The cooler is designed with a safety mechanism to prevent overfilling. In case the primary fill float fails, a second switch,
within the float is activated as the water level rises. This float switch shuts off the water to the reservoir (Note: A hard
impact or jarring of the unit while it is filling may trip the safety float) and an audible tone (Beep) will sound.
Dispensing approximately ½ Liter of water from any faucet and the Dual Float system will automatically reset (tone shut-
off). This is confirmation that the water has reached a normal level in the reservoir.
The In-Line Strainer
An in-line strainer has been inserted into the white tube connected to fitting on the mechanical float valve. This protects float
valve from malfunctioning due to sediment in the water. Periodic cleaning of strainer may be required to maintain water
flow. It can be removed from the tube for cleaning or flush water in reverse flow through the strainer. It is recommended
that this be done at least as often as filters are changed.
The Flow Monitor (POC2LR and POVC2LR models only)
This unit is equipped with a flow monitor to indicate when filters should be changed. The rated number of gallons is
programmed through the display panel on the front of unit, which is detailed on page 7. No message will be displayed until
the accumulated number of gallons reaches approximately 90% of programmed number. At that point, the message
“CHANGE FILTER” will flash on display. When accumulated number of gallons reaches the programmed amount, the
message “CHANGE FILTER” will stop flashing and remain steady on the display. Once monitor is reset (reference page 7),
the message will disappear.
The Baffle
The baffle separates room temperature water from chilled water in the stainless steel reservoir. It is shipped in a bag inside
the filter compartment. To install baffle, remove plastic cooler top by removing two ¼” hex head screws in the back. Lift up
on stainless steel reservoir lid and set it aside. Note the notch in the lid flange lines up with the raised tab on left side of the
reservoir. Line up notched tab with the protruding tube at back of reservoir and drop it in place. Align notch on reservoir lid
with tab on the reservoir and press in place. Replace cabinet top by positioning the back of it first and snapping the front in
place. Tighten down with the two screws removed earlier. To remove baffle after it is installed, remove plastic cooler top
and stainless reservoir lid, then lift baffle up using the elevated tab as a handle.
Hot Water Safety Faucet
The HOT water dispenser button is equipped with a child safeguard that reduces risk of hot water being dispensed
accidentally or by small children. To dispense hot water, slide red tab to the left and push down on button.
CAUTION: Children should be supervised by an adult when using this product.
WARNING: Water is extremely hot and can cause burns or death from scalding. Children, the disabled and elderly
are at highest risk of being scalded. Use hot water faucet with extreme caution.
UV Light (included on POVC2LR models)
The POVC2LR model comes equipped with an in-reservoir UV light. When the cooler is chilling water, the UV light is on.
This helps reduce bacteria growth in reservoir and keeps water tasting fresh. Bulb life can be monitored through the
electronic display if desired. The UV bulb with quartz sleeve should be replaced every year to maintain effectiveness. To
3
replace bulb and sleeve assembly, remove the cooler top and disconnect wire harness. Rotate assembly counter-clockwise to
loosen from SS lid. Lift the bulb assembly out. Wipe the quartz sleeve with isopropyl alcohol on a soft clean cloth to ensure
effectiveness. Thread new assembly into lid, be careful not to cross thread. Make the assembly snug, but do not
overtighten. Connect the new wire harness. Put the cabinet top back on by positioning the back of it first and snapping the
front down.
The POC2LR model does not come with UV light installed. Black and white wires are supplied ready and tied to the suction
line, inside the machine compartment, for one to be added. Make sure cooler is unplugged before removing side panels to
install UV system. Follow instructions included with UV kit to install into cooler.
The Leak Controller (included on POVC2LR models)
The POVC2LR model comes equipped with a water sensor and shut-off valve to protect the installation site should there be a
water leak. This also protects from reservoir overflow and filter leakage. When water accumulates in plastic base, the sensor
activates the control valve and it closes, sounding an alarm and blinking an LED to signify a leak has been detected and water
is shut off. Refer to Leak Controller instructions below for complete details on setting up and understanding functions of the
leak detector. A troubleshooting guide is on page 13. A leak controller can be added to any of the Aquabar 2 models as an
accessory by calling customer service at (614) 861-1350 or 800-646-2747.
Electrical Power Requirements (see data plate on base)
Tri-temp models 115v, 60 Hz, 4.9A 230v, 50 Hz, 2.5A
Duo-temp model 115v, 60 Hz, 1.2A 230v, 50 Hz, 0.6A
CAUTION: Risk of electric shock
** These units have been manufactured with R134a refrigerant. Repairs to the system must be performed by a Certified
Refrigeration Technician only. Always refer to data plate located near the inside filter compartment of the unit, for proper
refrigerant and charge.
The leak controller unit is standard with model POVC2LR. It is packed inside the filter compartment ready to install. 4 AA
batteries are included for initial installation. Batteries should be replaced every year to ensure full protection. The leak
controller is expected to last 5 years and should be checked annually for proper function.
1. To install batteries, lift lid on flat end of leak controller and remove the battery holder.
2. Gently disconnect battery holder pack from the snap connector. Insert 4 AA batteries
into battery holder slots, matching positive (+) and negative (-) terminals. Reattach snap
connector to the battery pack and insert it into battery compartment. NOTE: You should
see the LED light flash three times and hear three chirps to indicate battery power.
3. Close battery lid.
4. Open valve by turning front knob ÂĽ turn clockwise to the green mark on the cover. Now
the controller is open and ready to sense any water. Check that everything works
properly by placing tip of the sensor into a small cup of water. The valve should close
and alarm will sound. You can silence alarm by pressing button printed with a + sign
inside a circle (see figure 1).
5. Remove sensor from water and shake it to dry it out as
much as possible.
6. Mount leak controller to the water supply bracket on the
back of the unit. The three prongs on the water supply
bracket slide into three rectangular openings on back of
leak controller.
LEAK CONTROLLER INSTRUCTIONS
(
if a
pp
licable
)
Figure 2
Figure 1
