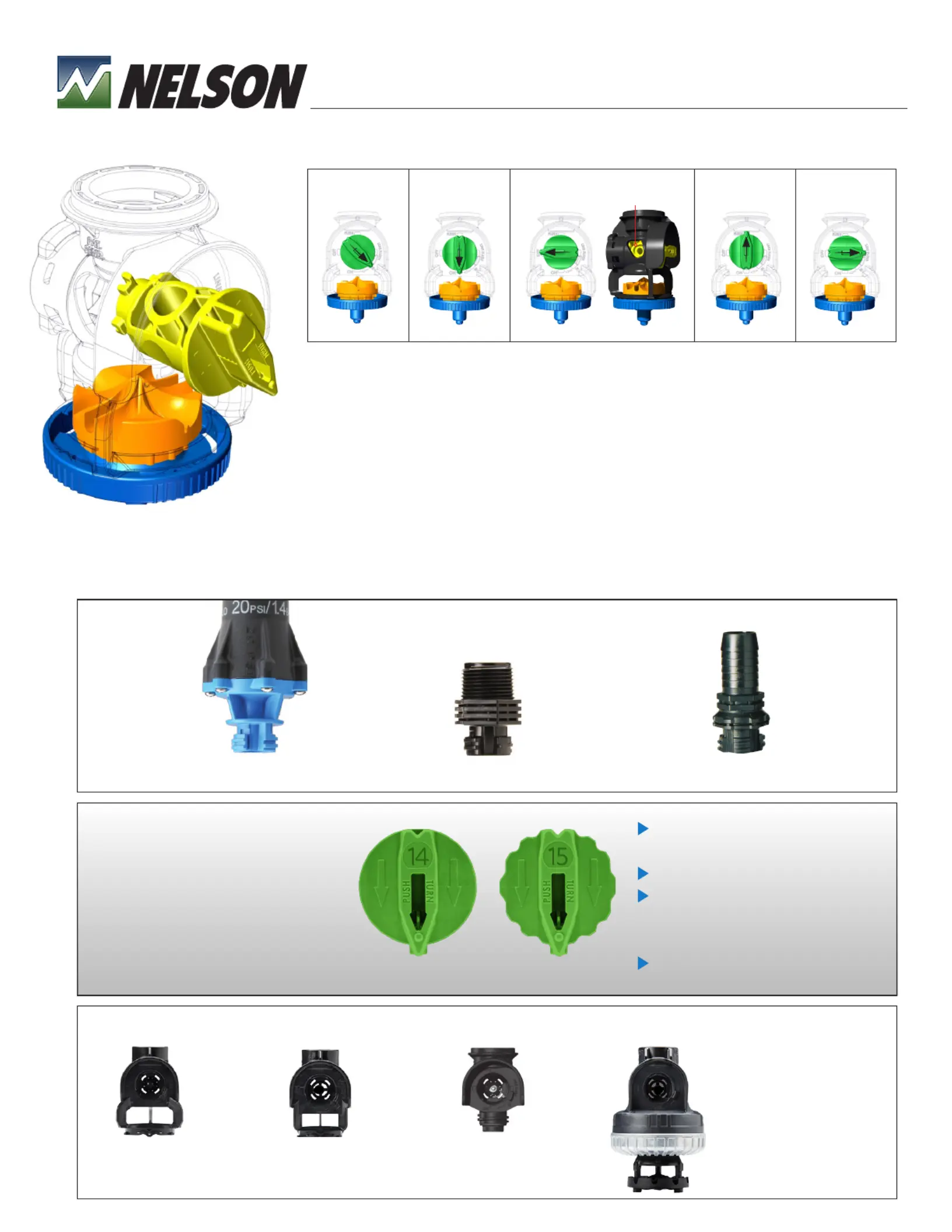

New! 3030 Pivot Sprinklers
3NV NOZZLE SYSTEM & 3030 SPRINKLER BODIES
3030 SPRINKLERS â 3/15
Introducing the new
4-function 3NV Nozzle.
3NV
NOZZLE
#12035-0xx*
*xx â use same number
system as 3TN nozzles
#9901
SQUARE THREAD
X HOSE BARB
SQUARE THREAD
PRESSURE REGULATOR
#9410
SQUARE THREAD
X 3/4â ADAPTER
Quick-change between
four functions
Covers complete nozzle range
Same color-codes as 3TN
but odd-size nozzles
have scalloped edge
Precision accuracy
Orbitor plate, weight or plastic
cover are fully assembled with
the O3030 body.
With Weight
#12317-101 black
#12317-102 blue
#12317-103 purple
With Plastic Cover
#12317-301 black
#12317-302 blue
#12317-303 purple
A3030 / D3030
#12346
ACCELERATOR/
SPRAYHEAD BODY
ROTATORÂź/
SPINNER BODY
R3030 / S3030
#12034
UNIVERSAL
BODY
U3030
#12381
ORBITOR
BODY
O3030
EVEN NOZZLES
ROUND
ODD NOZZLES
SCALLOPED
CONNECTION3NV NOZZLE3030 BODY
PUSH & TURN TO CHANGE MODES
To install, point arrow to âINâ then push and turn clockwise to engage.
To irrigate, point arrow to âONâ and make sure nozzle clicks into
place. To shut off, point arrow to âOFFâ*. While nozzle is in âOFFâ
position, use inspection port in 3030 body to check for obstruction.
Nozzle îush occurs when the arrow points to âFLUSHâ. Line îush
occurs when the arrow points to âLINE FLUSHâ. At this point, the
nozzle is against the stop.
*IMPORTANT! DO NOT LEAVE IN âOFFâ POSITION IN FREEZING CONDITIONS.
INSTALL ON OFF*
NOZZLE
FLUSH
LINE
FLUSH
ON
IN
OFF
FLUSH
INSPECTION
PORT
LINE FLUSH
