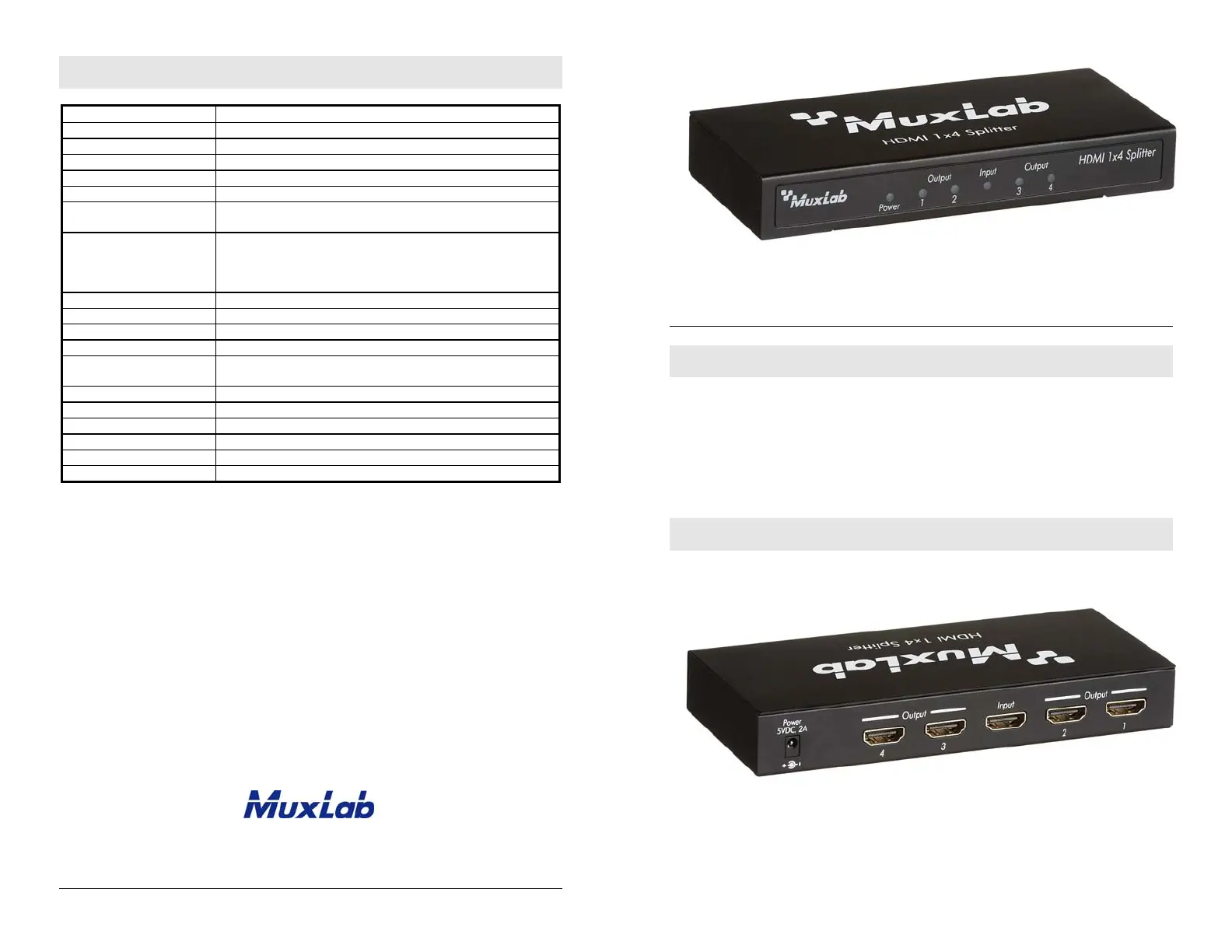

Seite 1/2
© MuxLab Inc. 2014 94-000755-A SE-000755-A
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588 Fax: (514) 905-0589
Toll Free (North America): (877) 689-5228
E-mail: videoease
@
muxlab.co
m
URL: www.muxlab.co
m
Specifications
Environment HDMI 1.4 (3D)
Devices DVD/Blu-Ray, plasma, projectors, monitors, TV, PC, laptops
Transmission Transparent to the user
Frequency 25 to 340 MHz
Signals HDMI 1.4 protocol
Connectors HDMI receptacle.
LEDs Power: Green
Input & Output Link: Blue
Resolution 480i to 1080p @ 50/60 FPS
1080p @ 24/50/60 FPS
3840 X 2160 @ 24/25/30 FPS
VGA to UXGA
Color 8, 10 & 12 bit
Audio LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio
HDCP Revision 1.3
Cable HDMI Cable
Temperature Operating: 0° to 40°C Storage: -20° to 60°C
Humidity: up to 90% non-condensing
Enclosure Metal enclosure
Dimensions 6.06” x 2.76” x 1.00” (154 mm x 70 mm x 24 mm)
Weight 1.4 lbs (0.64 Kg)
Compliance Regulatory: FCC, CE, RoHS
Warranty 2 years
Order Information 500421 HDMI 1X4 Splitter, 2K-4K
HDMI 1X4 Splitter, 2K-4K (500421)
Quick Installation Guide
Overview
The HDMI 1x4 Splitter (500421) allows one (1) HDMI source to be distributed to
up to four (4) HDMI displays. The splitter supports up to 4K (3840 X 2160), 8-bit
color and HD audio. The splitter is HDCP 1.3 compliant and features LED
diagnostics. Additionally, all HDMI connectors are on the rear panel for neater
cabling. Applications include; commercial and residential AV systems, classroom
projector systems, digital signage, boardroom systems, collaborative PC systems,
medical information systems.
Pre-Installation Check
Identify the connectors as indicated on the product
© MuxLab Inc. 2014
Installation
In order to install the HDMI 1X4 Splitter, please follow the steps below:
1. Connect the HDMI video source to the input connector of the splitter.
2. Connect the HDMI display equipment(s) to output connector of the splitter.
3. Connect the 5 VDC power supply to the splitter first, and then plug the power
supply into an AC power outlet.
4. Power on the HDMI equipment and verify the image quality.
5. The following diagram shows the final configuration.
Troubleshooting
The following tables describe some of the symptoms, probable causes and possible solutions
in respect to the installation of the HDMI 1X4 Splitter. If you still cannot diagnose the
problem, please call MuxLab Customer Technical Support at 877-689-5228 (toll-free in
North America) or (+1) 514-905-0588 (International).
Picture/
Sound
Probable Cause Possible Solution
No Image Wiring Check continuity
Check correct wiring
No Image Synchronization Power off the source and the
display. Power on the devices.
Flickering
Synchronization Check HDMI cable length
Choppy
Sound
Synchronization Check HDMI cable length
Noise in
Weak signal Check HDMI cable length
Green or
pink hue
Cable Check HDMI cables and
replace.
