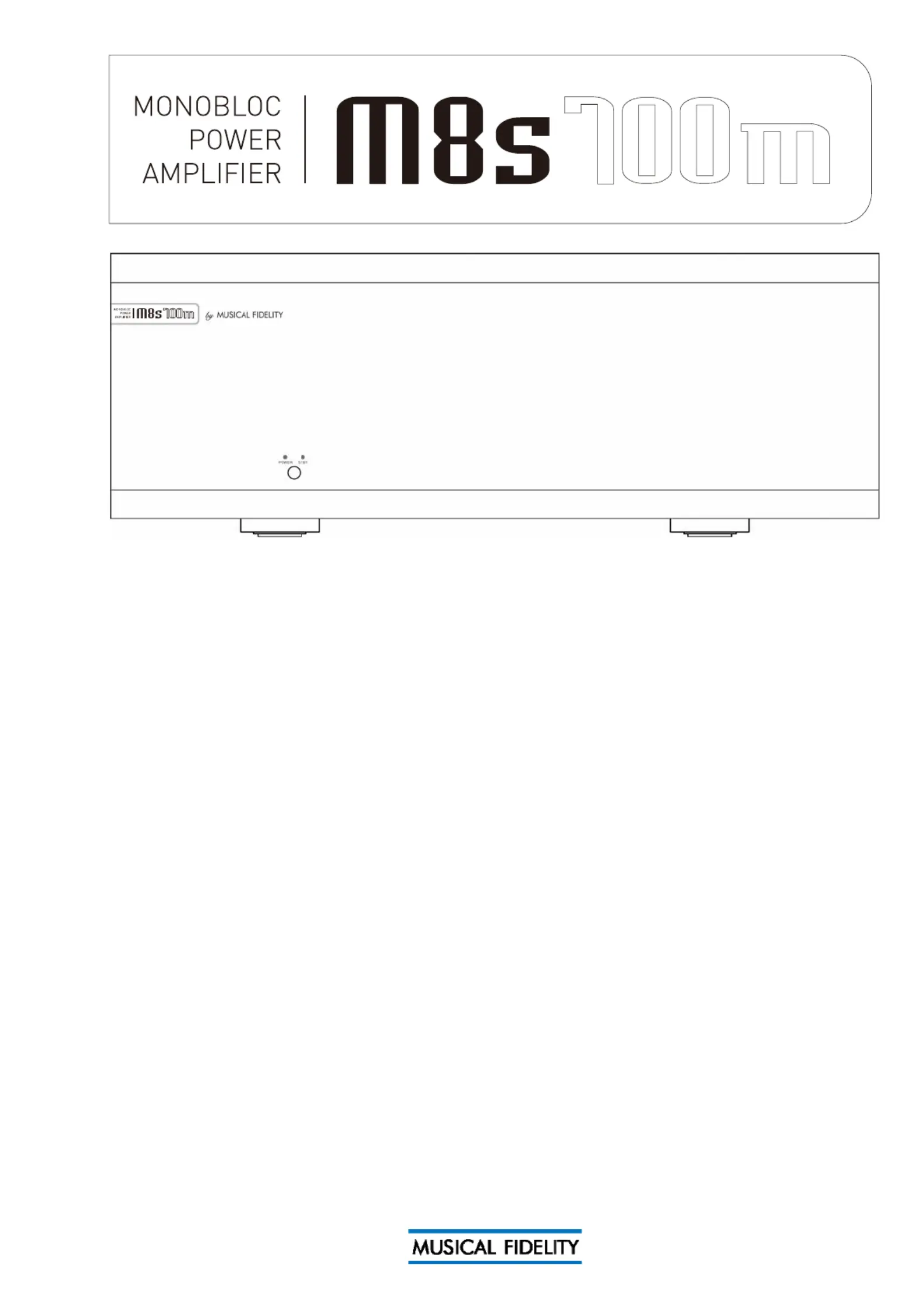

Seite 1/13
Instructions for use
Thank you for purchasing the Musical Fidelity M8s 7 m fully balanced “monobloc” power amplifier. 00
The M8s 700m is designed to be partnered with present and future M8 series products. It is, in fact, based on the
Titan design. It features twin high-current power amplifier sections connected in bridged mono configuration for
the absolute best in dynamics and drive capabilities. Two paralleled and generously over specified power
supplies also ensure unsurpassed supply noise filtering, transient handling and massive power reserve ssible po
in a single box power amplifier Phase splitting between the two internal amplifiers is achieved using a high
performance fully balanced converter circuit with wide flat freq ncy response uniform in-band characteristics ue
and immeasurably low distortion and noise.
Fully balanced as well as single ended inputs are catered for with loop outputs for both types, for bi-amping etc.
Trigger input/output allows the unit to be controlled/controller for switch on/off function.
This combination yields one of the best high-fidelity power amplifiers available at any price.
Used properly and carefully, it should give many years of outstanding musical reproduction.
Du regularl with soft du ter orst y a s soft brush, but be careful when using cleaning or polishing agents - they may
harm the surface finish.
If there are any questions about the product or related, please consult the dealer who is there to help and
advice.
Issue 1 Page 2 of 13
CONTENTS
Section Page
Safety Information – Mains plug (UK only)
– Modification warning
3
General advice – Installation precautions 4
Disposal information – EU disposal information 5
Installation – Introduction, cleaning, installation, power connections, audio
connections
6
Facilities and connections – Illustrations, main unit front & rear panels 7
Operation – Single ended (RCA) input
– Balanced (XLR) input
– Speaker Bi-wiring
– Starting
8
9
10
Problems? – Basic fault finding 11
Specifications 12
Manual history 13
Issue 1 Page 3 of 13
SAFETY INFORMATION
IMPORTANT! (U.K. only)
This unit is supplied in the wi main lead ed wi moulded 13 amp plug If, for any rea on, it is U.K. th s fitt th a . s
necessary to remove the plug, please remove the fuse holder and dispose of the plug safely, out of reach of
children.
It must not be plugged into a mains outlet.
The wires in the mains lead supplied with this appliance are coloured in accordance with the following code:
neerG and ye ow .E h ll ............................ art
lartueN................................................eulB
eviL..................................................nworB
WARNING – This appliance MUST be earthed
As the colours of the wires of the mains lead of this appliance may not correspond with the coloured markings
identifying the terminals in the plug, proceed as follows:
•The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked
with the letter E or coloured green or green-and-yellow, or by the earth symbol:
•The wire which is coloured brown must be connected to the terminal which is marked with the letter L or
coloured red.
•The wire which is coloured blue must be connected to the terminal which is marked with the letter N or
coloured black.
•If connecting to a BS1363 plug, a 13 amp fuse must be used.
WARNING:
AN CA DUCY MODIFI TIONS TO THIS PRO T NOT EXPRE LY SS
APPROVED BY MUSI L FIDELITY WHO IS THE P TY RESPONSIBLE CA AR
FOR STANDARDS COMPLIANCE COULD VOID THE USER'S
AUTHORITY TO OPERATE THIS EQUIPMENT.
