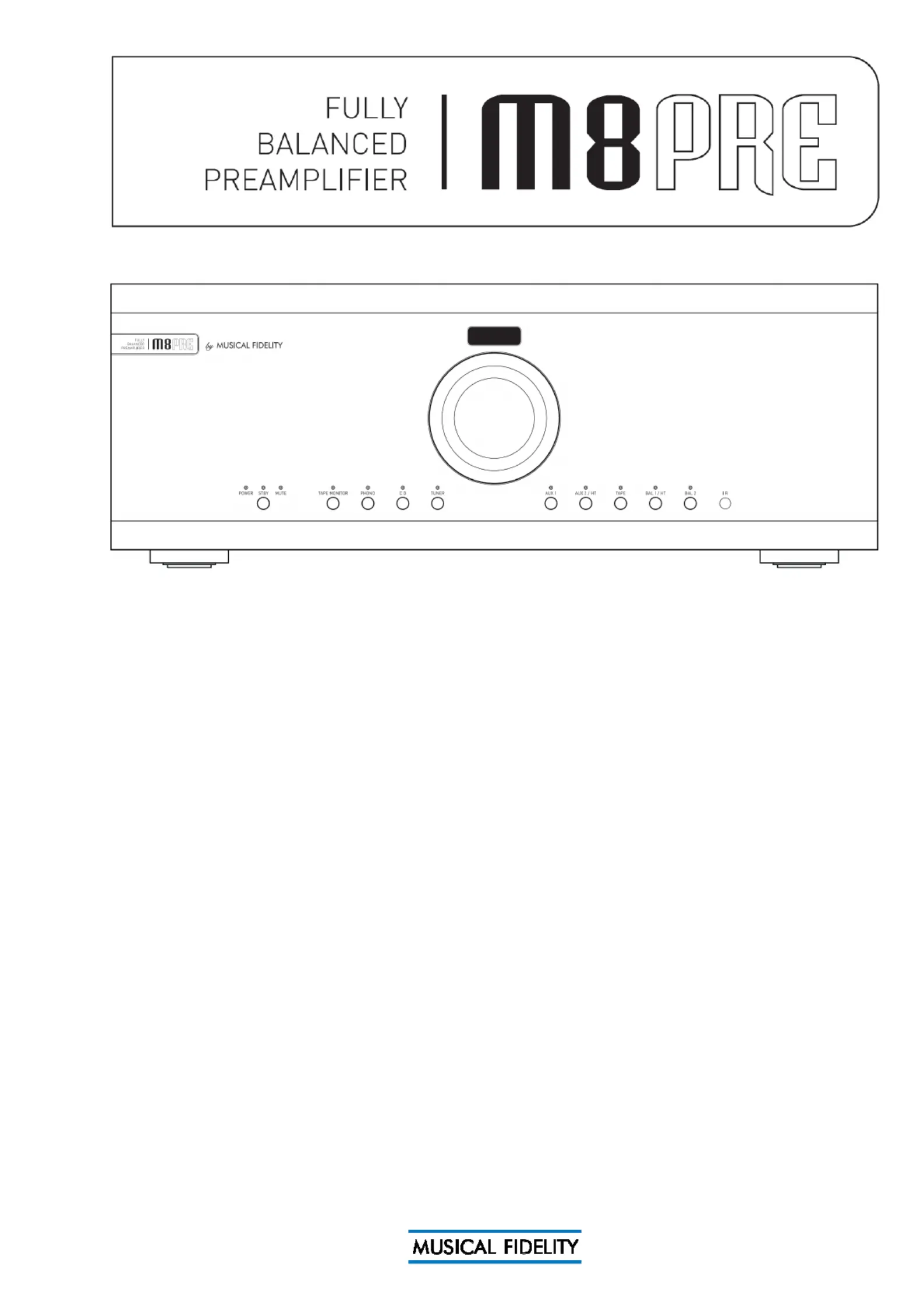

Instructions for use
Thank you for purchasing the Musical Fidelity M8 Preamplifier fully balanced dual mono pre-amplifier.
This preamplifier is designed with high quality control and especially balanced sources in mind.
Two balanced (XLR) inputs take care of balanced audio for the best in signal to noise, transient reproduction
and dynamic range from balanced sources. Inside, the balanced signal path is fully maintained, from input to
output, with a specially developed dual mono fully balanced preamplifier circuit.
The balanced volume control is a quad laser-trimmed attenuator giving 0.5dB steps of perfect matching,
allowing precise stereo imaging and ultra-low noise and distortion. The outputs are also balanced allowing
connection of balanced input power amplifiers to realise a completely balanced system from source to
speakers.
Units with single – ended (RCA) inputs and outputs are catered for with 6 selectable RCA inputs, and two sets
of outputs, one fixed for recording, etc, the other is the main controlled output.
The M8 Preamplifier has been designed to mix-and-match input/output signal types and use the unit as a single
ended to balanced (or vice versa) converting preamplifier. It is also designed to allow use of both balanced and
single ended outputs, simultaneously, if required.
All conversions are carried out automatically within the unit, all that needs to be done is choose and connect
the correct input and output leads.
The M8 Preamplifier is designed to be partnered with present and future M8 or M6 series products or
alternatively, may be used with any other high quality hi-fi components. This combination yields one of the best
high-fidelity systems available at any price.
Used properly and carefully, it should give many years of outstanding musical reproduction.
Dust regularly with a soft duster or soft brush, but be careful when using cleaning or polishing agents - they may
harm the surface finish.
If there are any questions about the audio system, please consult the dealer who is there to help and advise.
Issue 2 Page 2 of 13
Section Page
Safety Information – Mains plug (UK only)
– Modification warning
3
General advice – Installation precautions & user information 4
Disposal information – EU disposal information 5
Installation – Introduction, cleaning, installation, power connections, audio
connections
6
Facilities and connections – Illustrations, main unit front & rear panels 7
Remote control handset – Operation and illustration 8
Operation – Starting,
– Volume
– Mute
– PHONO
– CD
– TUNER
– AUX1
– AUX2/HT
9
– TAPE
– TAPE MONITOR
– BALANCED 1/HT
– BALANCED 2
10
Problems? – Basic fault finding 11
Specifications 12
Manual history 13
CONTENTS
Issue 2 Page 3 of 13
IMPORTANT! (U.K. only)
This unit is supplied in the U.K. with mains lead fitted with a moulded 13 amp plug. If, for any
necessary to remove the plug, please remove the fuse holder and dispose of the plug safely, out of r
children.
It must not be plugged into a mains outlet.
The wires in the mains lead supplied with this appliance are coloured in accordance with the followin
Green and yellow ............................. Earth
Blue ................................................ Neutral
Brown ................................................. Live
WARNING – This appliance MUST be earthed
As the colours of the wires of the mains lead of this appliance may not correspond with the coloured
identifying the terminals in the plug, proceed as follows:
• The wire which is coloured green-and-yellow must be connected to the terminal in the plug which i
with the letter E or coloured green or green-and-yellow, or by the earth symbol:
• The wire which is coloured brown must be connected to the terminal which is marked with the l
coloured red.
• The wire which is coloured blue must be connected to the terminal which is marked with the le
coloured black.
• If connecting to a BS1363 plug, a 13 amp fuse must be used.
WARNING:
ANY MODIFICATIONS TO THIS PRODUCT NOT EXPRESSLY
APPROVED BY MUSICAL FIDELITY WHO IS THE PARTY RESPONSIBLE
FOR STANDARDS COMPLIANCE COULD VOID THE USER'S
AUTHORITY TO OPERATE THIS EQUIPMENT.
SAFETY INFORMATION
