Seite 1/2
PRODUCT SAFETY AND RF EXPOSURE COMPLIANCE
ATTENTION!
This radio is restricted to occupational use only to satisfy FCC RF energy exposure
requirements. Before using this product, read the RF energy awareness information and operating
instructions in the Product Safety and RF Exposure booklet enclosed with your radio (Motorola
Publication part number 6881095C98) to ensure compliance with RF energy exposure limits.
For a list of Motorola-approved antennas, batteries, and other accessories, visit the following web
site which lists approved accessories: http://www.motorola.com/governmentandenterprise
Mag Oneâ„¢ by Motorola is registered in the U.S. Patent and Trademark Office.
All other products and service names are the property of their own respective owners.
© Motorola, Inc. 2005, 2006, 2007
1301 E. Algonquin Rd.,
Schaumburg, IL 60196-1078, U.S.A.
Printed in China. 02/07. All Rights Reserved.
Before using this product, read the operating instructions for safe usage
contained in the Product Safety and RF Exposure booklet enclosed with your
radio.
*6881098C61*
6881098C61-D

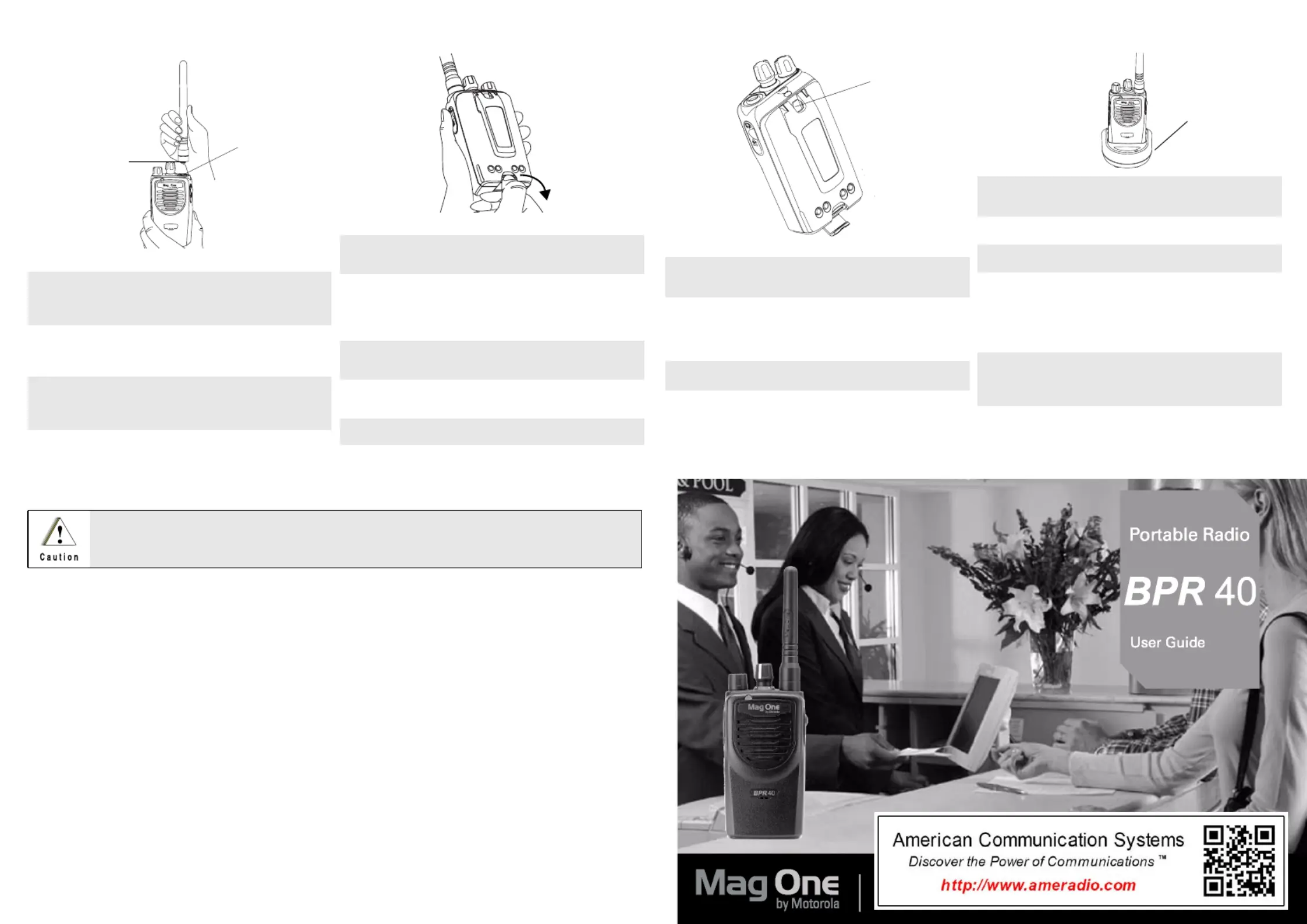

Attaching and moving the tenna Re An
To ach Antenna Att
To emove Antenna R
1. Fasten e antenna to e radio by placing th th
the threaded en of he antenna into d t the
Antenna Connector.
2. Rotate the antenna clockwise until tight.
1. Tu the nte in unter-clockwisern a nna a co
direction until it sengages from the di
radio.
Threaded End
of enna Ant
Antenna
Connector
Attaching and Removing e Battery th
To BatteryAttach
To Battery Remove
1. Align a fit battery ton into hend the gue t
groove of e chassis of the radio. th
2. Secure the latch at the bottom of the
radio.
1. Unlatch battery clasp at t bottom of the he
the radio.
2. Gently lift he hilt of battery nearest to t the
the batt latch away r the housing.ery f om
3. Slide batt downwards to remove.ery
Attaching and Removing the Belt Clip
To a Belt Clip Att ch
To Remove Belt Clip
1. Align mounting rails of the radio with the
groo of he lt lip.ves t be c
2. Slide the belt p wnwards until icks cli do it cl
into lace. p
1. Lift e release tab. th
2. Slide the belt clip upwards.
Release abT
Charging ur adio yo R
1. Turn off your radi and th A/C power o e
supply to your charger (if they are on).
2. Place your radi in he charger pocket.o t
3. Turn on the charger’s A/C power supply.
4. Whil charging ur radio, the arger’se yo ch
LE shows a steady red light. The radioD
should be harged east 6 ours initially c at l 1 h
before decreasing arging i 12 ch t me to
hours.
5. Turn off charger’s power supply, the A/C
and remove the radi from th chargero e
pocket.
6. For more details, refer to your Tri-Chem
Charge User Guide (6871916T01).r
Charger Pocket
Audio Alert Tones
Tone Name Tone Cadence Description
In Chirp Tone Programmable buttons are pressed.
Out Chirp Tone Programmable buttons are pressed.
Bad Key Chirp
Tone
Invalid programmable button function (i.e. pressing
programmable button while button lock is activated.)
Talk Prohibit
Tone
Continuous tone is heard if PTT is pressed when transmit
is not allowed.
Low Battery
Alert Tone
Repeating tone heard if battery level is low.
Priority
Channel Alert
Tone
Received priority channel in Priority Scan mode.
Low Tone High Tone
LED Indicators
Colour State Indication
Red Illuminated Radio is transmitting.
Blinking Battery voltage is low.
Green Illuminated Radio is receiving with PL/DPL disabled.
Blinking Radio is in active scanning mode.
Orange Illuminated Radio is receiving with PL/DPL enabled.
Blinking An error has occured.
On/Off and Volume Knob
• Turn clockwise to turn radio ON
and increase volume.
• Turn counter-clockwise to
decrease volume and turn radio
Push-to-Talk (PTT) button
• Press to transmit and release
to receive messages. Speaker
• Where received
messages are heard.
Microphone
• Speak into microphone when
sending message.
Accessory Connector
• To connect compatible
accessories to radio.
Programming Port
• To program the radio.
Accessories
*Caution: Your radio does not support the VOX feature. Please set the accessory switch to ‘PTT’. If the accessory switch is
set to ‘VOX’, your radio transmits constantly and never receives.
Types Part No. Description
Antenna PMAD4051_R Mag One 150-174MHz Antenna
PMAE4020_R Mag One 450-470MHz Antenna
Audio Accessory PMMN4008_ Remote Speaker Microphone
PMLN4442_ Earbud with in-line mic and PTT/VOX* Switch
PMLN4443_ Ear Receiver with in-line mic and PTT/VOX* Switch
PMLN4445_ Ultra Lightweight Headset with In-line PTT/VOX* Switch
PMLN4294_ Earbud with Microphone & PTT Combined
PMLN4605_ Clear Acoustic Kit
PMLN4606_ 2-Wire Surveillance Kit with Clear Acoustic Tube
PMLN4658 _ D-shell Earset with Boom Mic with PTT/VOX* Switch
Battery PMNN4071_R Mag One NiMH 1200mAH
PMNN4075_R Mag One Li-Ion 1500mAH
Carry Accessory PMLN4743_ Mag One Spring Belt Clip
PMLN4741_ Mag One Soft Leather Carry Case
PMLN4742_ Mag One Hard Leather Carry Case
Charger PMLN5041_R Mag One Tri-Chem SUC Base
PMLN5048_R Mag One Tri-Chem SUC with Switching PS US Plug
EPNN9288_ Switching Power Supply with AC Cord, US plug, 90–264 VAC
Channel Knob
• Turn knob to change channel.
Programmable Buttons
• Frequently used features can
be programmed here.
LED Indicator
• Colors indicate various states
of the radio
Programmable Buttons
• The following functions can be assigned as short press (press and release) or long press (press and hold
for 1 second) in the programmable buttons.
†In Chirp Tone
* Out Chirp Tone
• Your radio’s default functions are described below. If re-programmed, enter the new functions .
Button Function
High/Low Power Selects desired power level to High †or Low*.
Volume Set Allows you to check the audio and alert tone volume level.
Monitor Allows you to monitor the current channel for activity; disables squelch.
Sticky Monitor*The radio monitors continually until you press this button again.
Scan Starts* or Stops†channel scan.
Nuisance Channel
Deleteâ€
Removes unwanted channel(s) temporarily from scan list during scan.
Repeater/Talkaround Toggles radio between functioning in Repeater mode †or Talkaround mode*.
PL/DPL Enables†/Disables* radio from requiring matching PL/DPL to receive messages.
Button Lock Locks* or unlocks †all buttons except PTT, Channel Knob and On/Off/Volume Knob.
Battery Save Mode Toggles between functioning with Battery Saver ON * or Battery Saver OFFâ€
.
Squelch Selects desired squelch level: Normal †or Tight*.
Press Type Programmable Button 1 Programmable Button 2
Default DefaultRe-programmed Re-programmed
Short Press Monitor Scan
Long Press Sticky Monitor Nuisance Channel Delete
