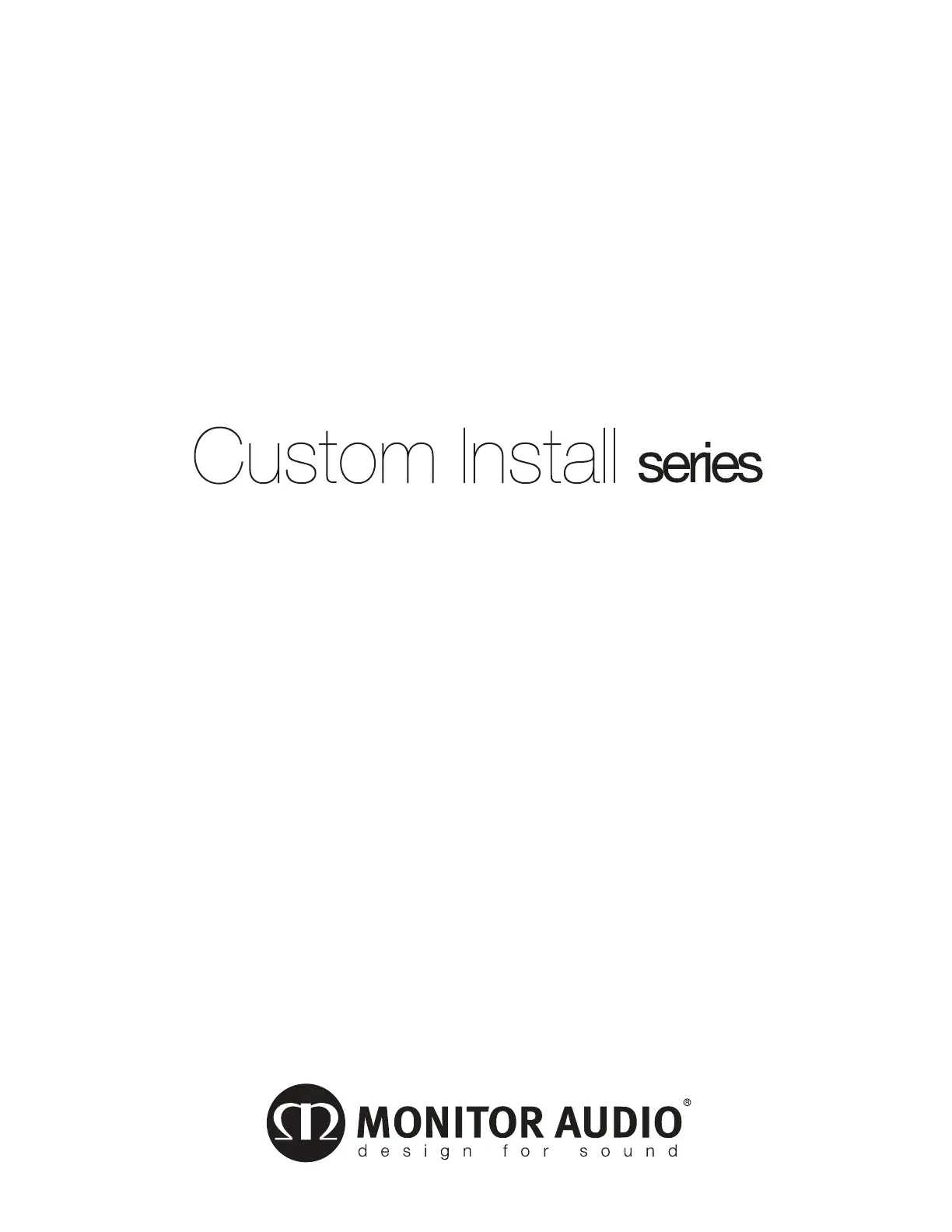

Seite 1/8
P R O D U C T & I N S T A L L A T I O N
G U I D E
I N S T A L L A T I O N G U I D E
Custom Install Trimless Series Features
All models feature our new ‘Trimless’ grilles, held in place by high strength Neodynium magnets covering the entire product
for that true trimless, stealth look.
All models also feature our unique Tri-Grip® fixing design. This ‘dog’ style fixing provides a greater contact surface area
than other types in no less than 3 different areas on the single fixing. The Tri-Grip fixings are made from a tough re-enforced
polymer, giving a secure fixing.
Pre-construction brackets can be purchased for all models. These are fitted prior to plaster board (sheet rock) fixing and
provide a guide to cut around.
300 Series
s Second generation RST® bass drivers. The 300 Series is also the first range of speakers to feature a 8” version of the RST driver.
s C-CAM® gold dome tweeter. Monitor Audio’s famous 25mm gold C-CAM dome. Improvements to the surround and
motor system have extended the frequency response to beyond 30 kHz
s The LCR models employ a unique Inverted Dual Concentric (IDC®) pivoting mid-range/tweeter module, providing up to
18 degrees of movement and allowing the sound to be directed towards the desired listening zone. These models offer
superior performance and flexibility over typical 2-way or fixed angle speaker designs
s The FX model features a switchable di-pole mode. There is a three position switch to control this feature. It can be set to
bi-pole (normal operation), di-pole, or trigger. When set to trigger, the di-pole mode is controlled by a 12v trigger found
in high end AV amplifiers/receivers
s The high frequency level, mid frequency level (not on FX) and boundary compensation controls facilitate a wider range
of possible adjustments.
200 Series
s C-CAM® bass drivers. The renowned C-CAM (Ceramic Coated Aluminium Magnesium alloy) is an innovative alloy
material that exhibits ideal mechanical properties for use in high performance loudspeaker cones and diaphragms
s C-CAM® gold dome tweeter. The pivoting tweeter is based on Monitor Audio’s famous 25mm gold C-CAM dome.
Improvements to the surround and motor system have extended the frequency response to beyond 30 kHz
s The LCR models employ a unique Inverted Dual Concentric (IDC®) pivoting mid-range/tweeter module, providing up to
18 degrees of movement and allowing the sound to be directed towards the desired listening zone. These models offer
superior performance and flexibility over typical 2-way or fixed angle speaker designs
s The FX model features a switchable di-pole mode. This is manually set by changing the position of the switch on the
product. A front mounted switch is provided to select between bi-pole (monopole) or di-pole operation, dependant on
system installation. This enhances the whole movie experience when used in a 7.1 channel system
s High frequency level and boundary compensation (excluding the FX model) controls facilitate a wider range of possible
adjustments.
100 Series
s MMP®II cone technology. The MMPII (Metal Matrix Polymer) cone material uses a high-pressure injection moulding
process to achieve different thicknesses at critical points in the cone geometry
s C-CAM® tweeter. The new tweeter utilises a pivoting action to provide optimum imaging and flexible set-up options.
High frequency level control is provided to offer a degree of balance adjustment once installation is completed.
Painting the Grilles
NOTE: If choosing to paint the grille, we recommend you follow these simple steps:
1. Remove the membrane scrim from the inside of the grille.
2. Paint all grilles required for the installation with the same batch of paint (if they are to be the same colour). Spray paint
is easier to apply or use a stippling action when brushing to avoid blocking the holes of the grille.
3. When dry, attach the spare membrane scrim (supplied) into the inside of the grille.
4. Fit the grille to the speaker (s).
Prior to Fitting the Custom Install Series Speakers
CAUTION: These Custom Install loudspeakers can only be fixed into plasterboard (dry-lined) or suspended
ceilings/ walls with a thickness of up to 45mm (1 3/4”). Solid wall installation will require channeling out and frame
work constructed to provide a structure for the Tri Grip® dog legs to clamp to. For safety reasons, if you are unsure
of your ability to provide a secure and safe fixing, do not attempt to fix these speakers, please obtain the services
of a competent and qualified trades person.
CAUTION: Ensure that there are no water pipes or electricity cables running within the wall structure before cutting
the speaker apertures. Work from secure steps and avoid trailing wires.
Over Tightening Warning
ATTENTION INSTALLERS:
Do not over-tighten the Tri-Grip Dog Leg clamps. Over tightening the clamping mechanism on any in ceiling/ in wall speaker
can result in damage to the speaker mounting hardware, ceiling/ wall or speaker frame, and/ or deflection in the speaker
frame during installation.
If you notice any of the above during installation, you have overtightened the Tri Grip D Go leg. Back off the mounting screw
until deflection is reduced to allow the product to sit firmly against the ceiling / wall.
Do not exceed 5Kgf/cm (4.34 lbf/inch.) or 0.5 NM when tightening the Tri Grip dog leg screws.
When are using a cordless screwdriver/ drill to install this product ensure the clutch is set to it’s lowest setting to avoid from
over-tightening and damaging the mounting hardware.
